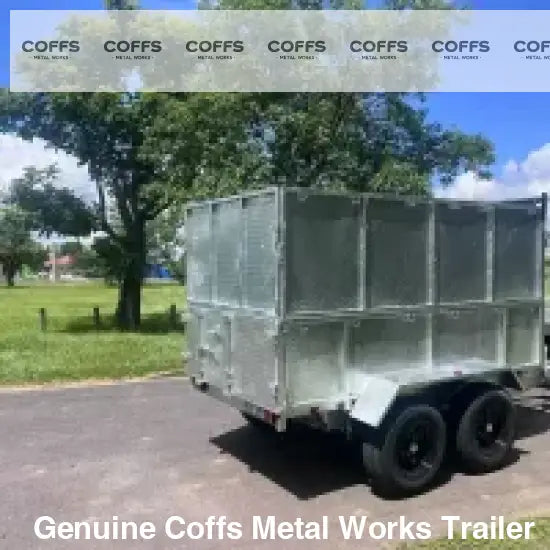

10×5 Skip Bin HYD Tipping Trailer 4490KG ATM

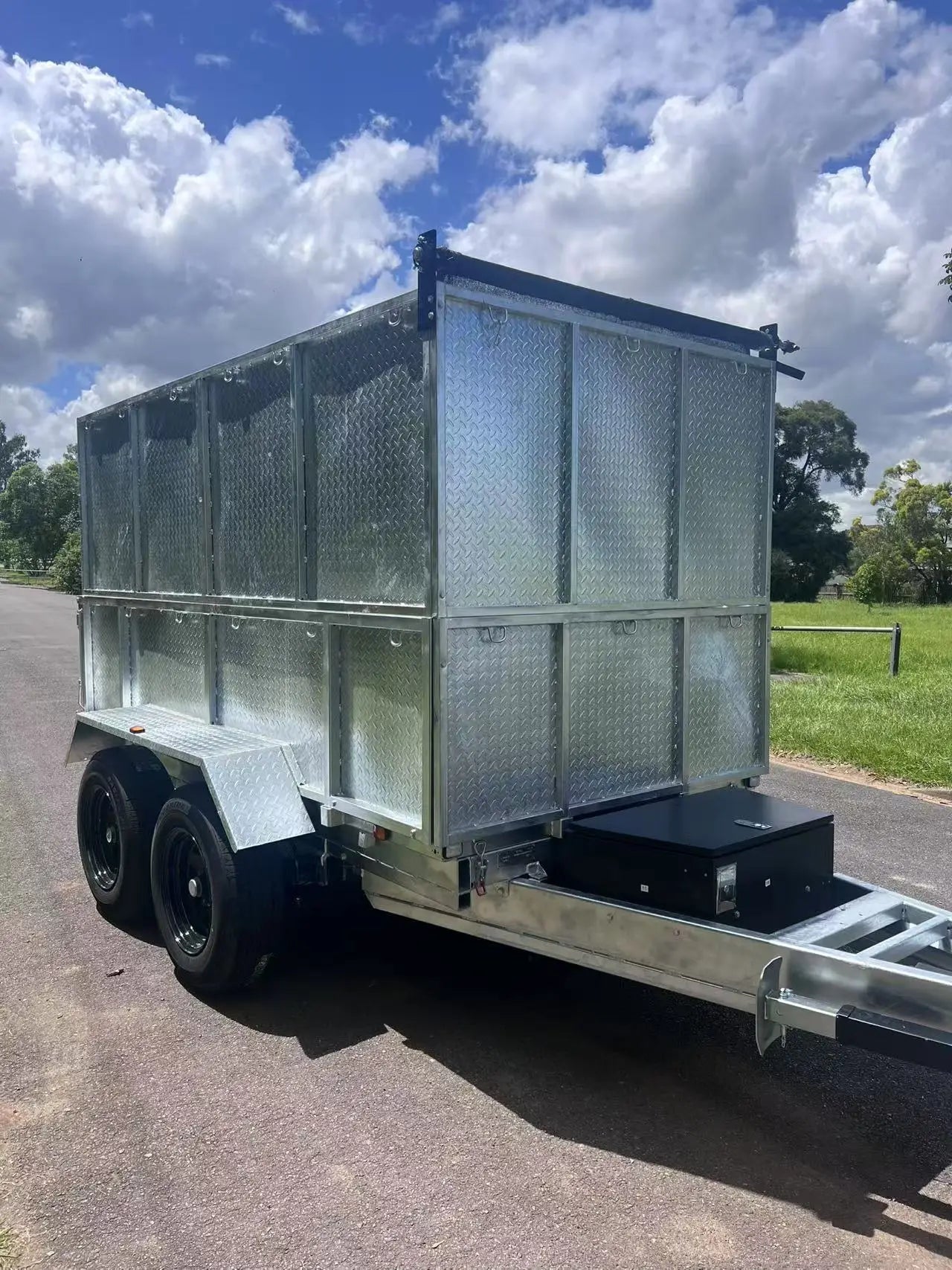

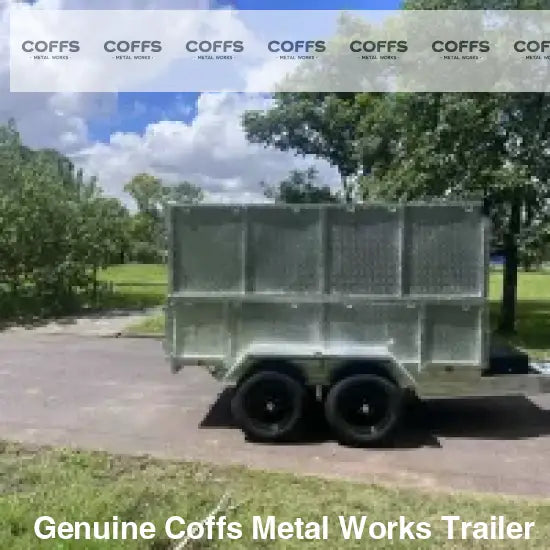

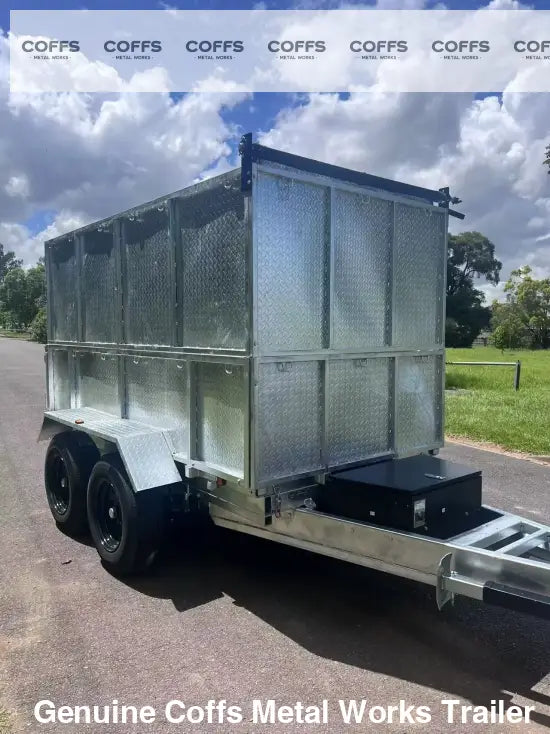

🚛 Heavy-Duty 10×5 Hydraulic Tipping Skip Bin Trailer

4.5T ATM | Dual Axle | Wireless Remote | Built for Aussie Tough Jobs

Engineered for serious work, the 10×5 Hydraulic Tipping Skip Bin Trailer is the ultimate solution for efficient waste transport, machinery loading, and heavy-duty tipping. With a robust build, advanced hydraulic system, and thoughtful design, this trailer is ready to tackle the toughest tasks with ease.

🔧 Technical Specifications

Trailer Dimensions

• Internal Size: 3000mm (L) × 1530mm (W)

• ATM: 4490kg

Chassis & Frame

• Drawbar: Q355B 150×50×4mm + 50×50×4mm

• Finish: Fully hot-dip galvanized for superior rust resistance

• Flooring: 4mm checker plate steel

Axle & Suspension

• Dual 60mm × 60mm solid square axles with 12” electric brake drums (all wheels braked)

• 9-leaf rocker roller spring rated to 4.5T

Braking & Wheels

• Electric brakes on all wheels

• Heavy-duty 225/75R16 tires on 6-stud Landcruiser rims

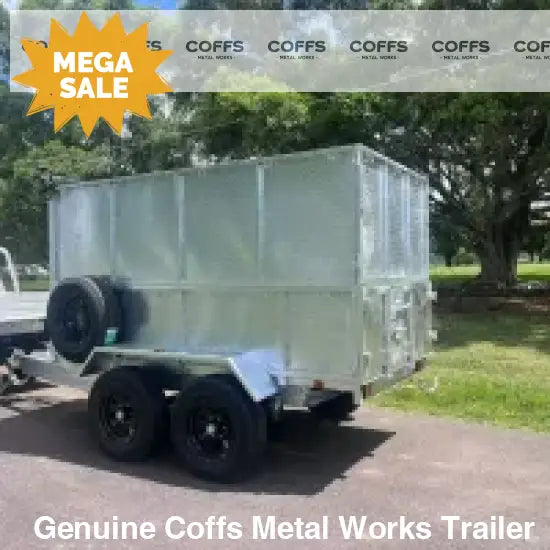

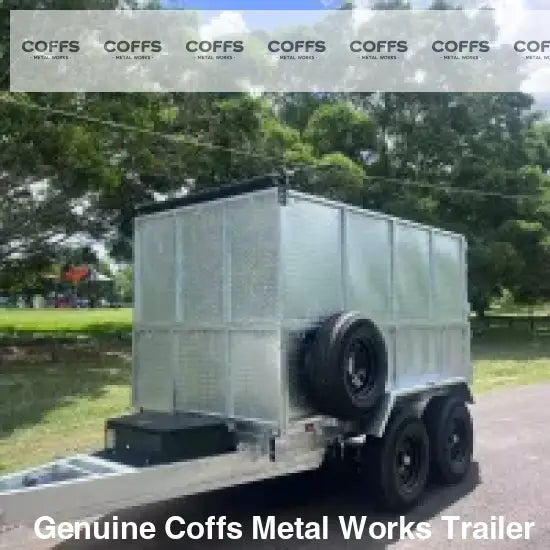

• Spare tire mounted on trailer side

• 8,000LBS top-wind jockey wheel

• 70mm Australian Standard ball coupler

Lighting & Electrical

• LED taillights and side clearance lights

• 7-pin connector plug

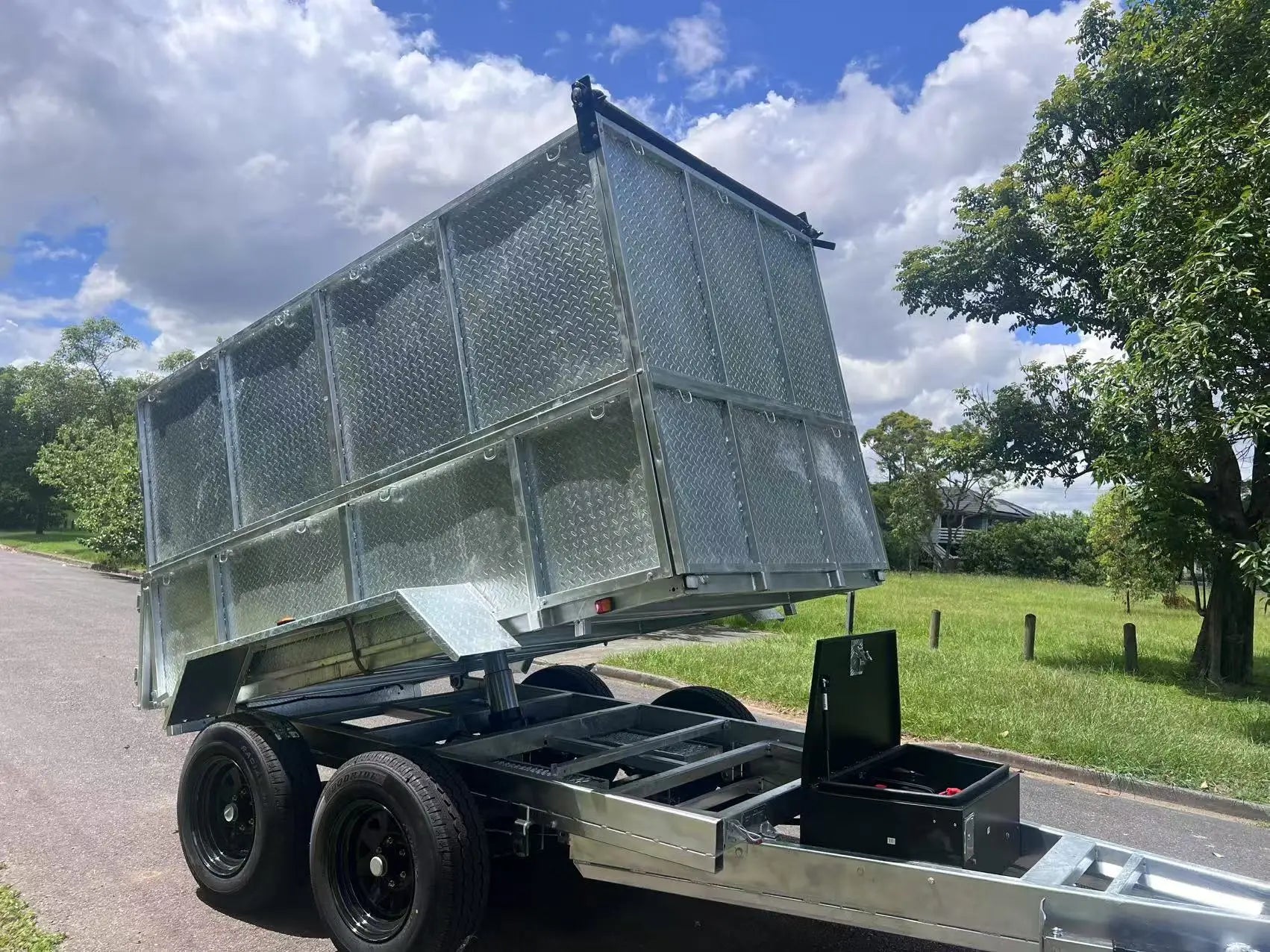

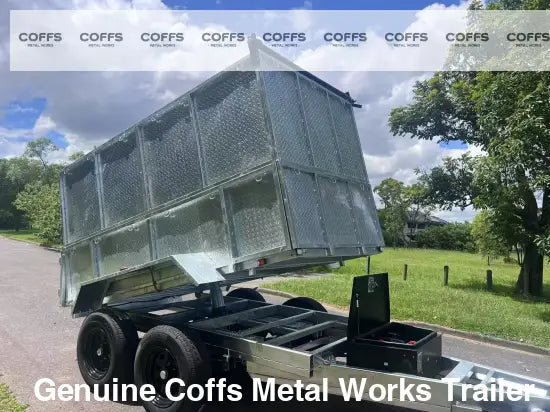

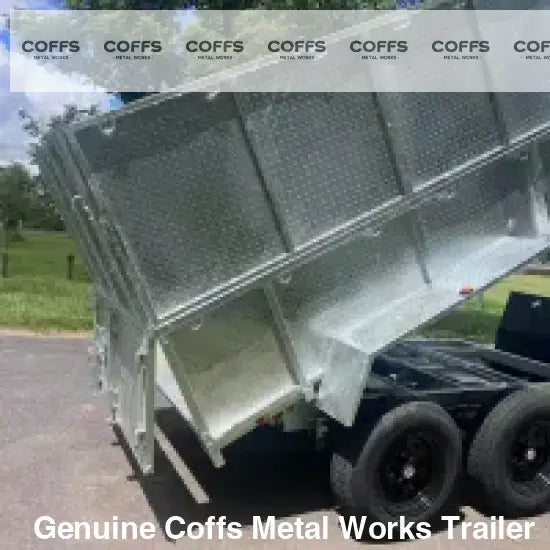

⚙️ Hydraulic System

• 12V electric/hydraulic tipping system

• 7 or 10 Ton five-stage hydraulic ram

• Anderson cable for automatic charging from tow vehicle

• Wireless and wired remote control for effortless operation

🧰 Additional Features

• Two heavy-duty pull-out ramps (1-ton rating each) with under-deck storage

• Custom recessed toolbox housing 660CCA 80AH battery

• External mudguards

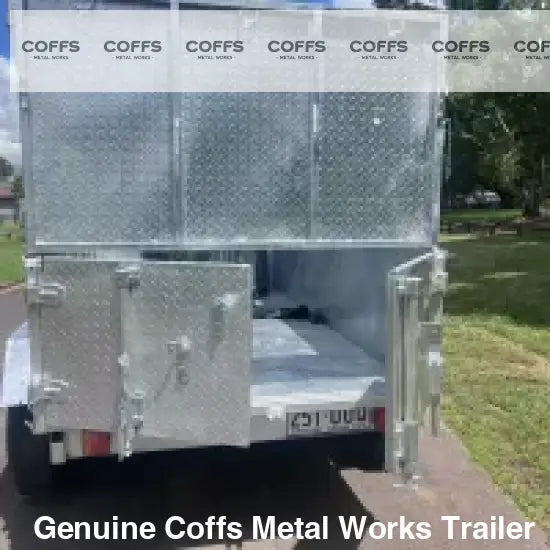

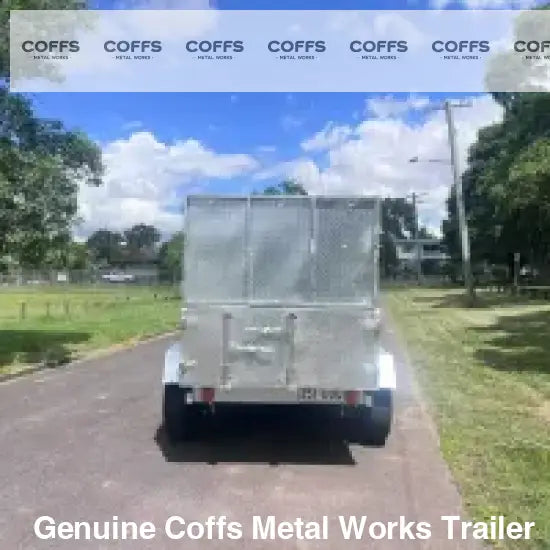

• Barn door tailgate (opens from bottom or middle)

• J-hooks on sides and rear for tarp control

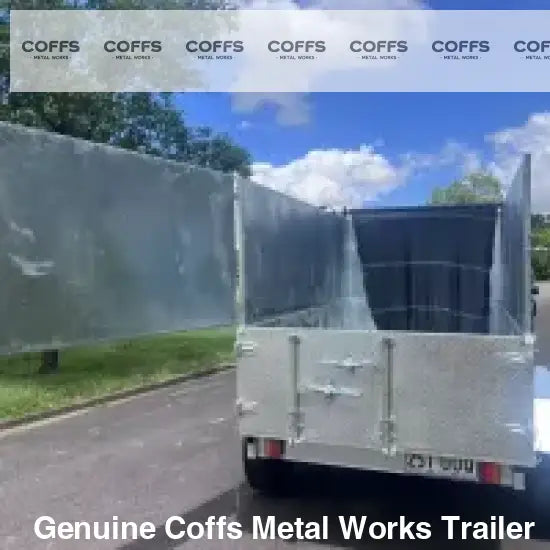

• Tarp rolling system with front mounting brackets

💪 Built for Performance

Whether you're managing skip bins, transporting machinery, or handling construction debris, this trailer delivers unmatched durability, convenience, and safety. Its galvanized finish and reinforced components make it ideal for harsh Australian conditions.
