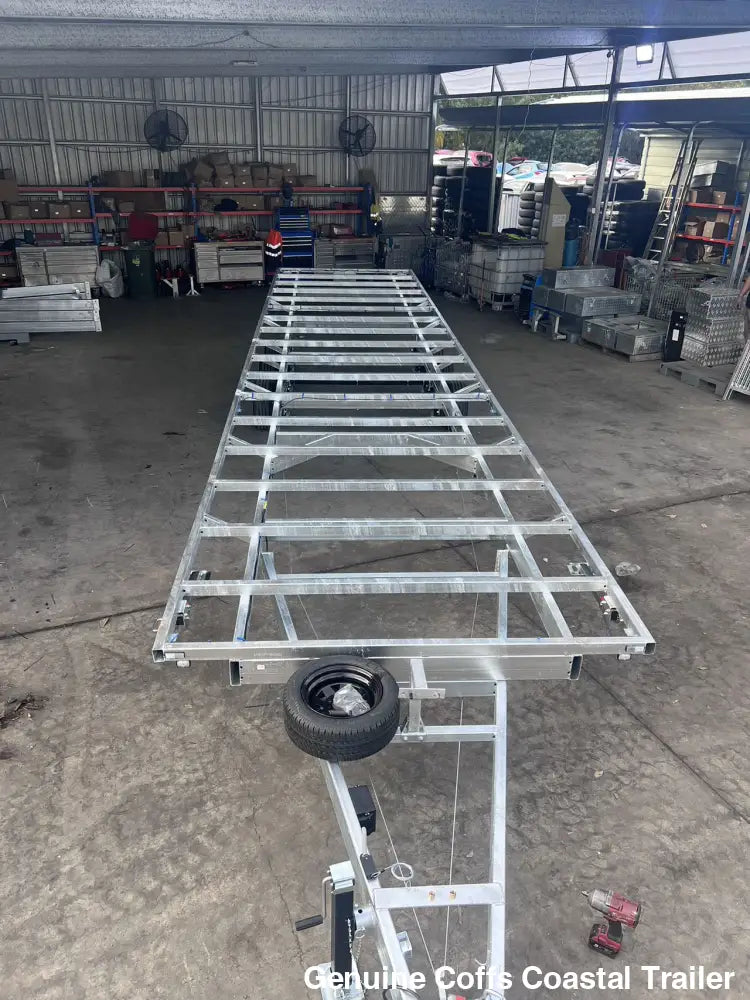

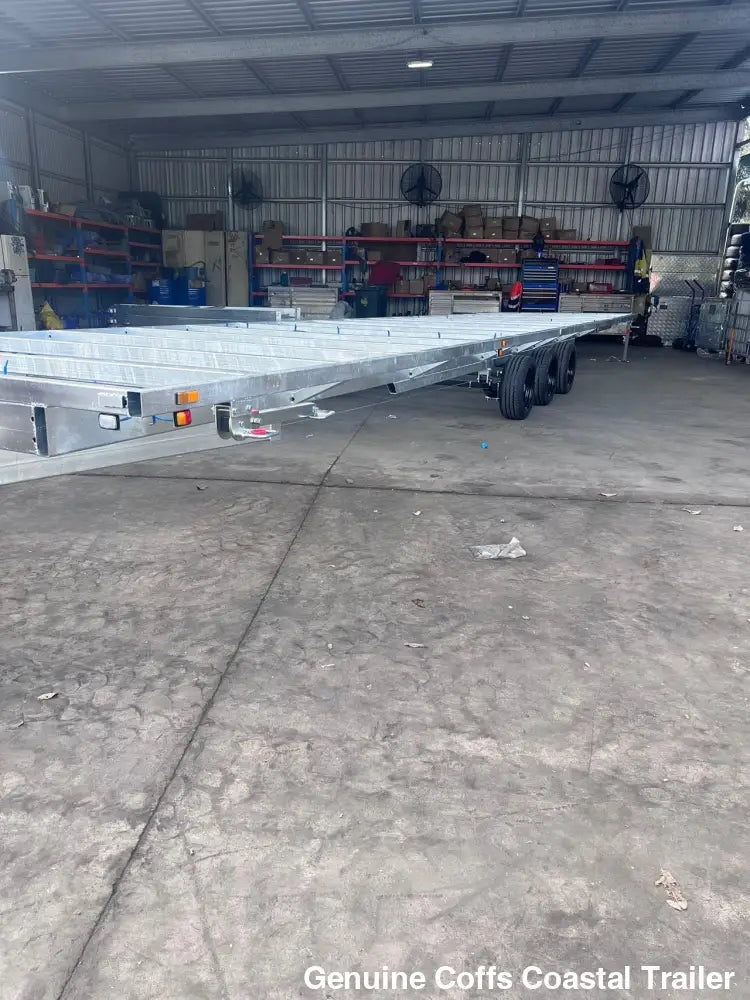

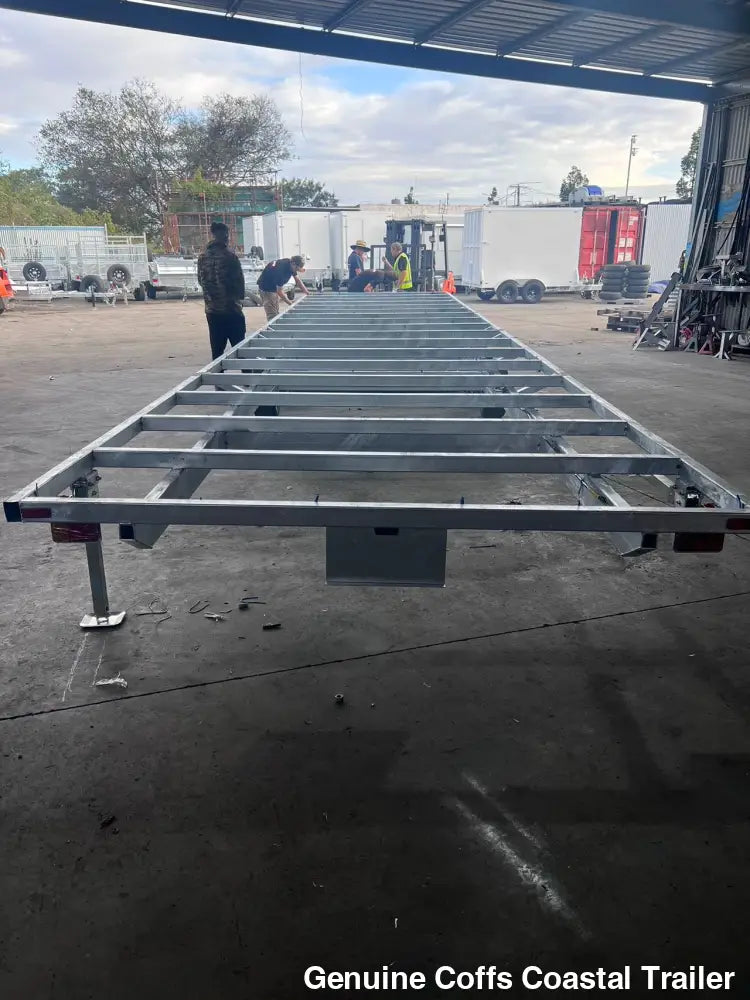

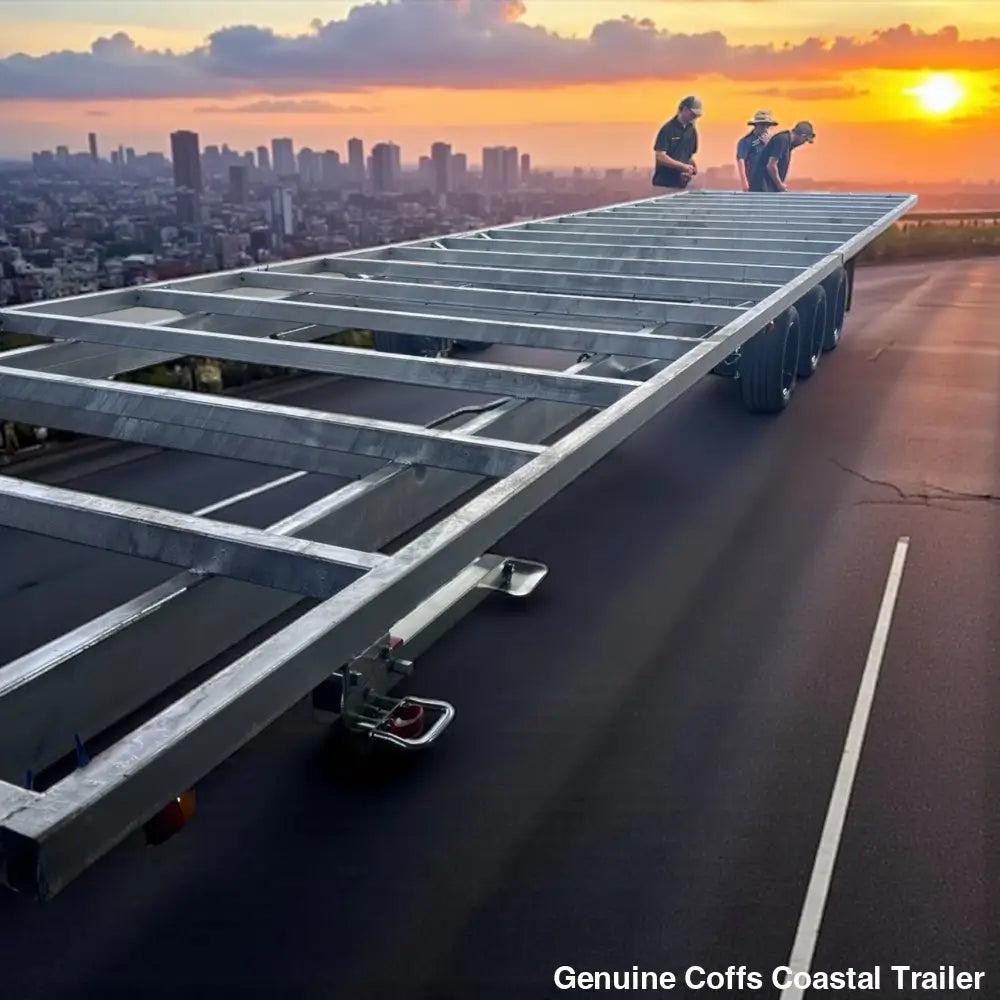

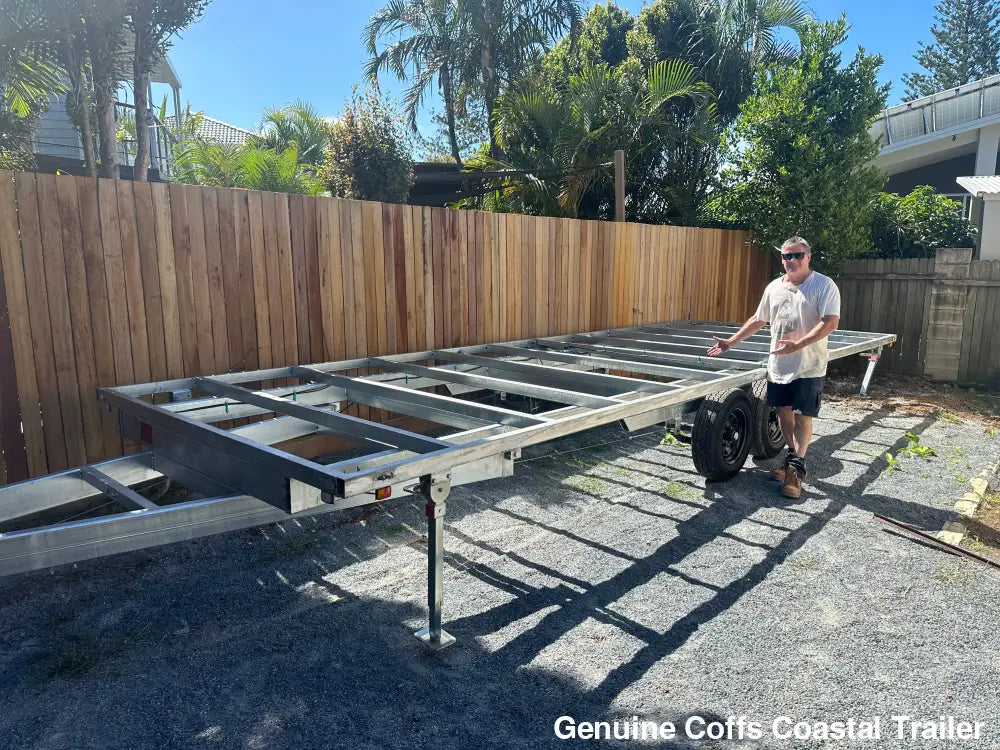

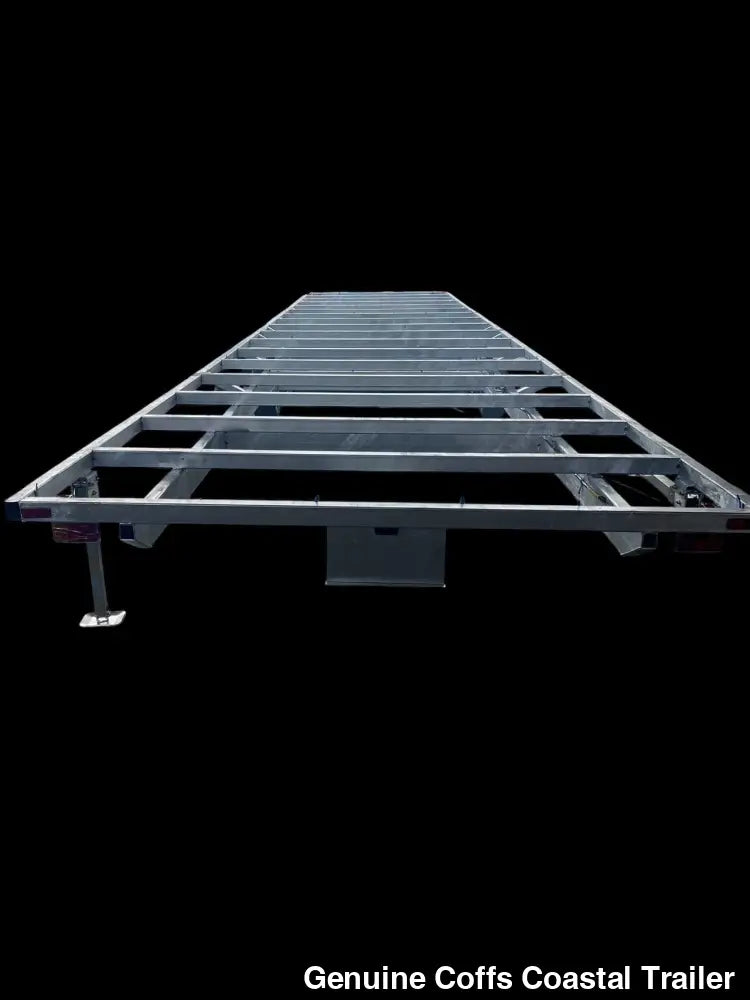

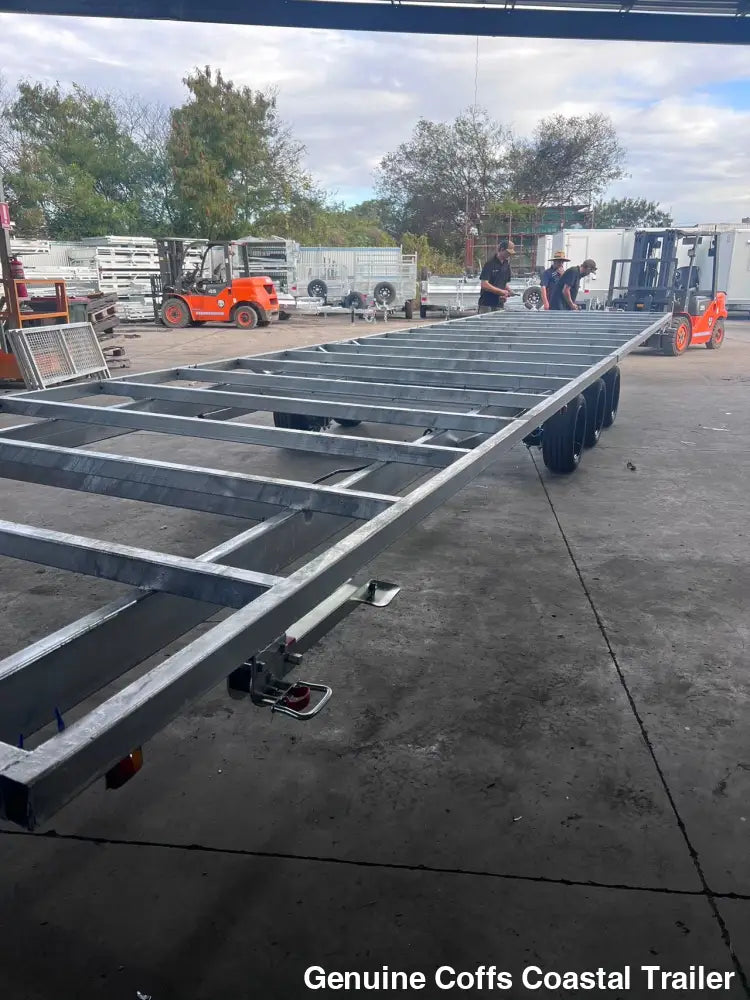

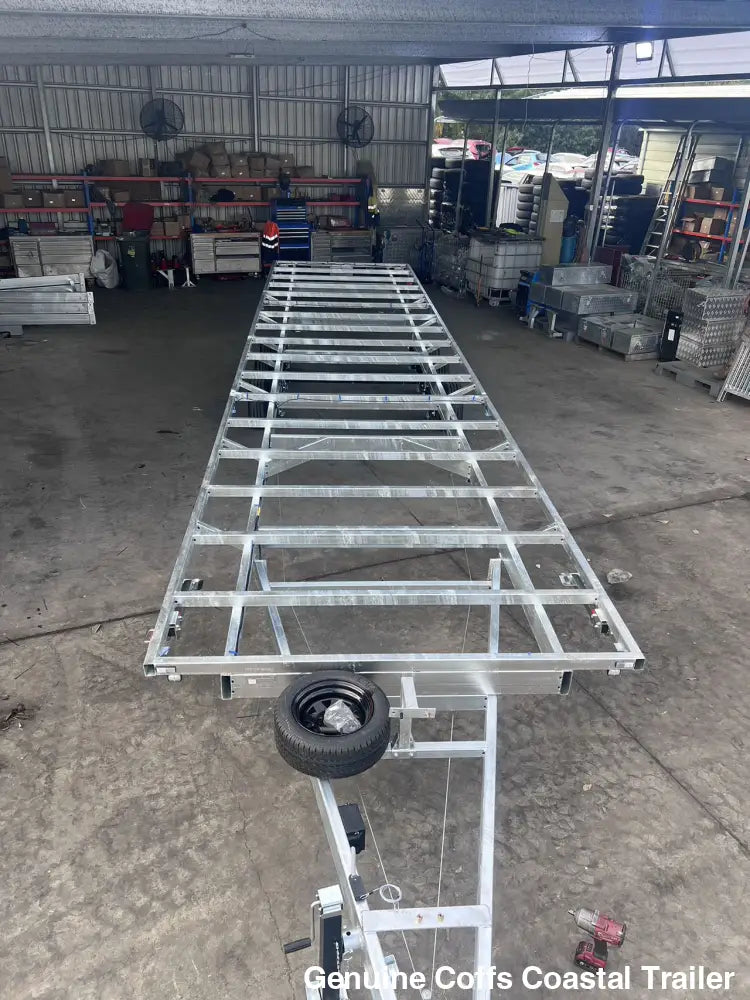

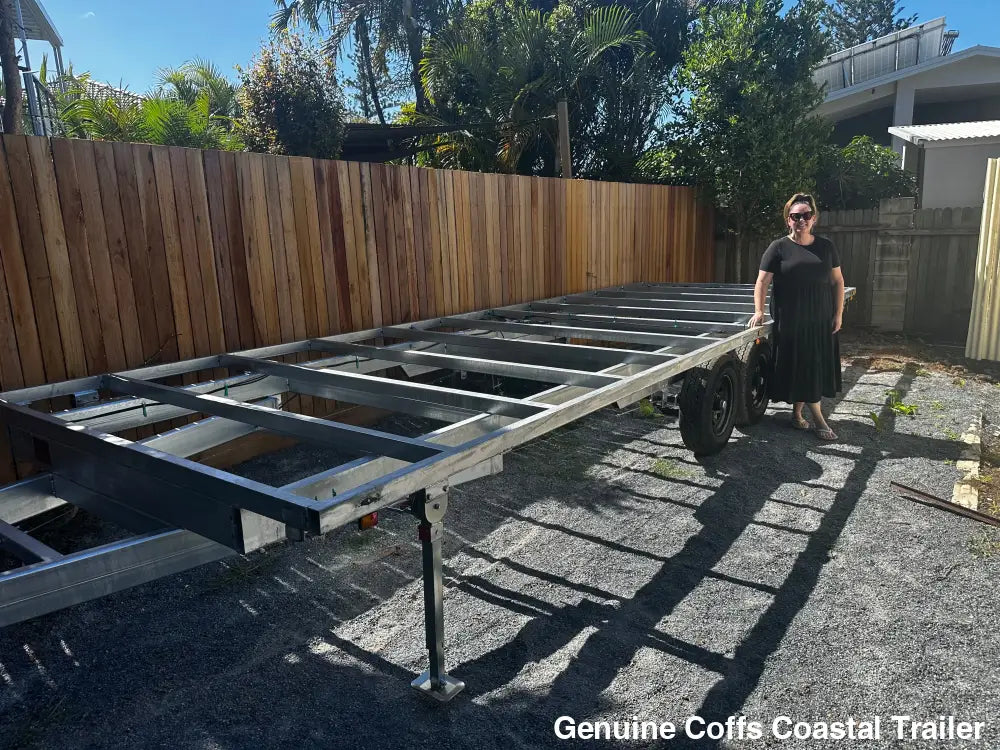

10.8M Tri axle Tiny house Chassis ATM 3500KG or 4500kg
10.8M Tri axle Tiny house Chassis ATM 3500KG or 4500kg
Regular price
$16,985.00 AUD
Regular price
$19,990.00 AUD
Sale price
$16,985.00 AUD
Unit price
per
Couldn't load pickup availability
⚙️ Tinny Home Trailer – Technical Specifications
Built Tough by Coffs Coastal Trailers
Our Tinny Home Trailers are engineered for strength, stability, and long-term durability—perfect for mobile living or custom structures. Below are the detailed specs for our 10.8-meter model:
📐 Dimensions & Structure
| Component | Specification |
|---|---|
| Internal Trailer Size | 10800mm (L) x 2400mm (W) |
| Drawbar | 1708mm (L), 150mm tube |
| Chassis | Heavy-duty 150 x 50 x 5mm |
| Finish | Hot-dipped galvanized |
| ATM (Aggregate Trailer Mass) | 3500kg |
| Warranty | 12-month limited warranty |
🛠️ Configurations & Components
| Feature | Specification |
|---|---|

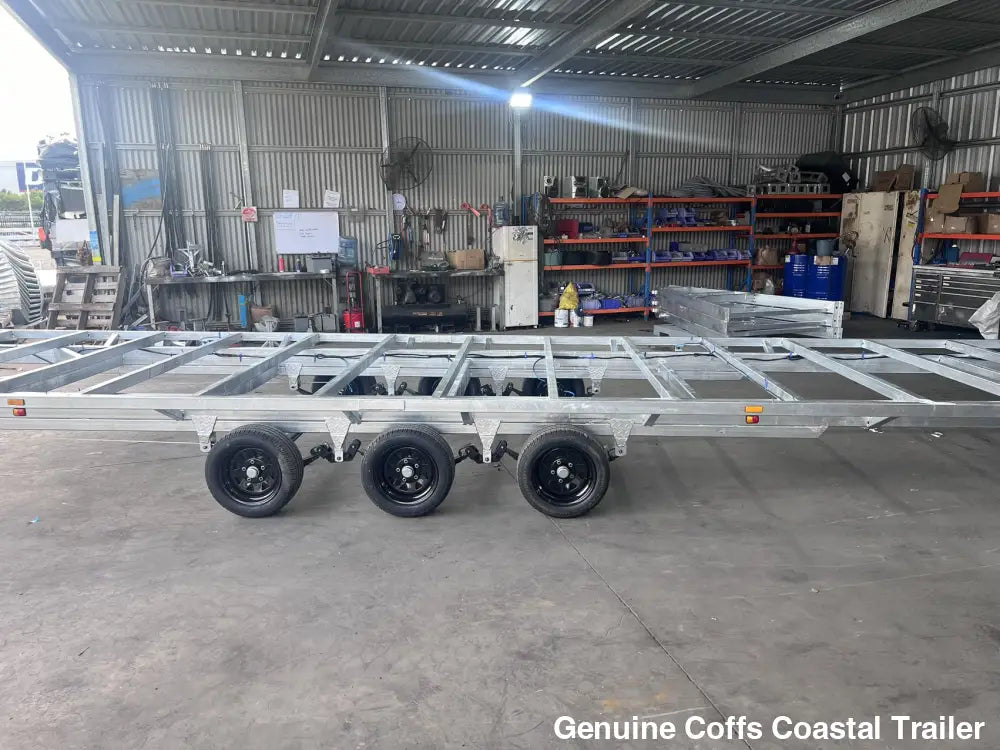

| Axle | Tri axles, 50mm solid square axle |
| Suspension | 60mm 9-leaf rocker roller springs |
| Brakes | 12” electric drum brakes on all four wheels |
| Wheels | Brand new 195R15C tyres & rims |

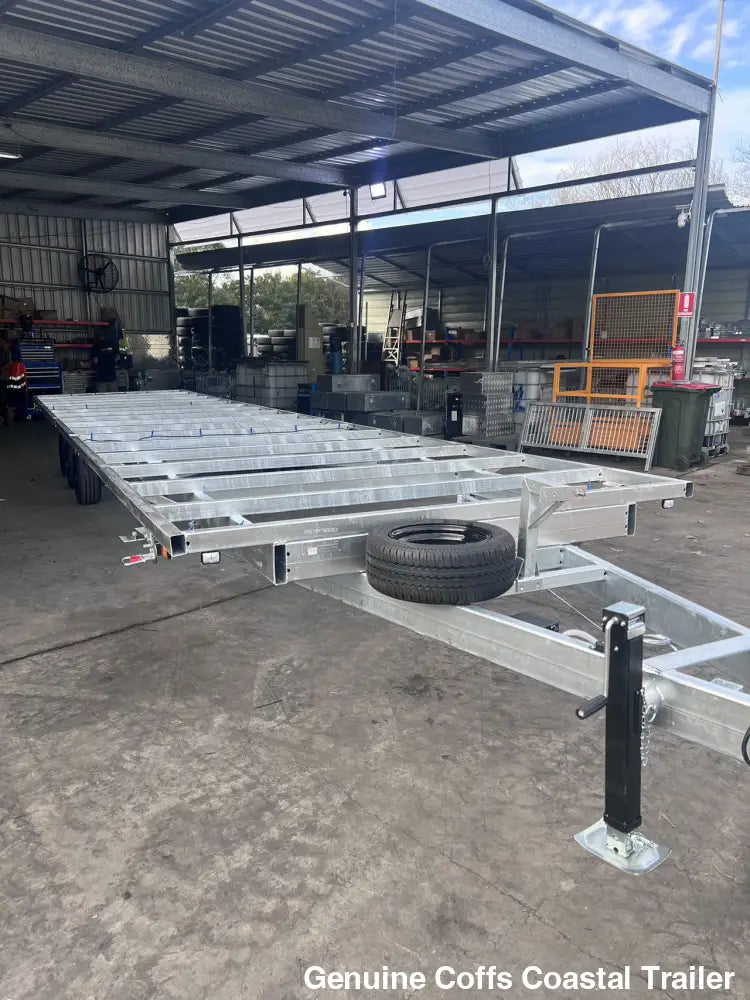

| Jockey Wheel | Heavy-duty jockey stands |

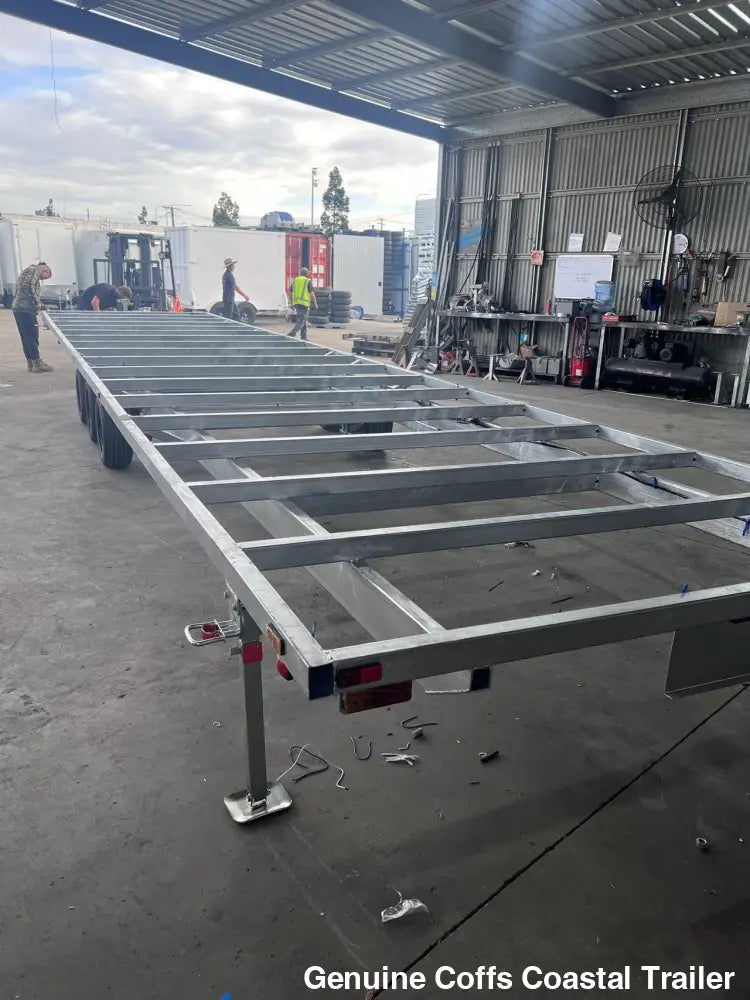

| Support Legs | 4x stabilizer legs (one on each corner) |
| Coupler | 50mm rated to 3500kg |
| Lighting | LED system (12V–24V compatible) |
| Plug Type | Round or flat 7-pin plug |
| Safety Chain | 13mm heavy-duty chain |
| Spare Wheel Bracket | Included |
🧱 Built for Customization
This trailer is ideal for:
-
🏠 Tiny home builds
-
🧑🔧 Mobile offices or studios
-
🛖 Off-grid structures
-
🛠️ DIY projects
