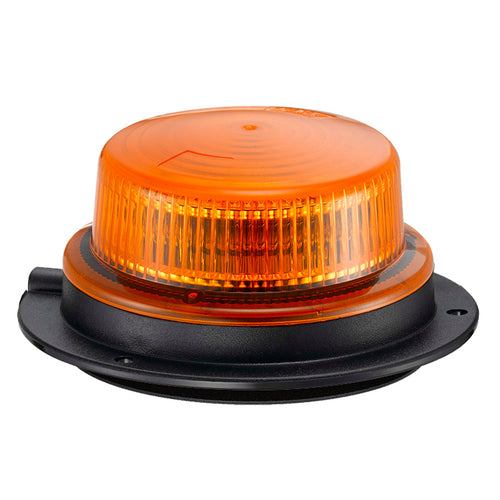

200 Series Magnetic Mount Low Profile LED Beacon

200 Series Magnetic Mount Low Profile LED Beacon

$123,456,789.00 AUD
$123,456,789.00 AUD
Sale Sold out

 Product Description



Description

The BE200 Series LED Beacons are designed as direct replacement for existing Xenon warning lights, with a much lower amp draw and lower power consumption. Fully ECE / SAE J845 Class 3, these beacons are ideal for emergency, construction and motorists, police, fire and EMS personnel as well as marine applications.



Features

  • • E marked and ECC R10 EMI compliant
  • • Stud base or magnetic base options
  • • Low current draw
  • • Adjustable flash patterns
  • • IP67 weatherproof protection rating and fully sealed
  • • 360deg light distribution



 Features



Features

  • E marked and ECC R10 EMI compliant
  • Stud base or magnetic base options
  • Low current draw
  • Adjustable flash patterns
  • IP67 weatherproof protection rating and fully sealed
  • 360deg light distribution



 Specifications



Specifications

Voltage 10-30V
Power:

Peak: 10W

AVG: 6W
Lens: Polycarbonate
Mounting Stud or Magnetic
Environmental: IP67




BE200 Flash Pattern:


NO. PATTERN FLASH PER MIN
1 Half 120
2 / 3 Rotate 1 150
4 / 5 Rotate 2 146
6 6 Times 82
7 Triple 1 47
8 7 Times 56
9 Triple 2 111
10 Single 165



BE250 Flash Pattern:


NO. PATTERN FLASH PER MIN
1 Single 150
2  Quint 63
3 Rotate 188



Parts List



Compliance
BE200-ST Stud Mount (130x53mm)

Emarked (ECE R65 Class 3) ECE R10 (EMI Compliant)
BE200-MG Magnetic Mount (130x53mm)
BE250-ST Stud Mount (140x96mm)

Emarked (ECE R65 Class 2) ECE R10 (EMI Compliant)
BE250-MG Magnetic Mount (140x96mm)
