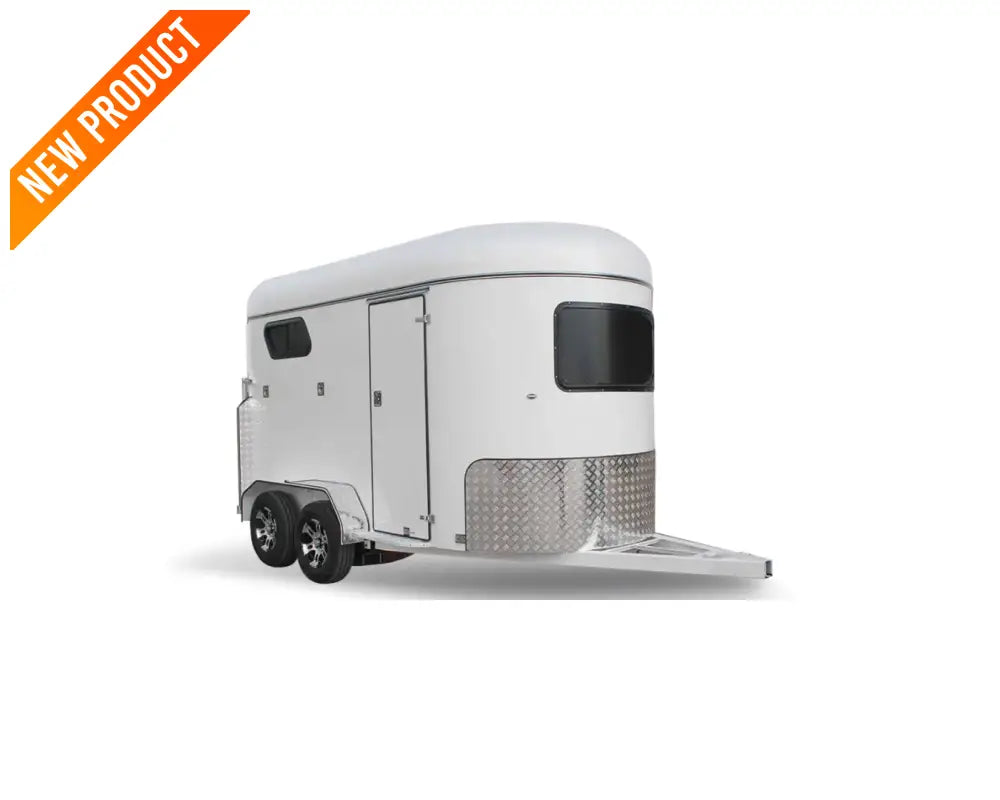

2HAL Standard Horse Float

The 2HAL Standard Horse Float is built for horse owners looking for everyday reliability and premium safety. Designed with a strong galvanised steel frame, durable body panels, and a comfortable angle load setup, this float delivers on both performance and protection.

With quality features such as a FRP molded roof, dual axle suspension, stainless steel fittings, and rubber flooring, the 2HAL Standard ensures your horses travel comfortably while your towing experience remains smooth and secure.

 Horse Transport Area

• Chassis & Frame: Double hot-dip galvanised RHS (Chassis 3.5–4.0mm | Frame 2.5mm)

• Body Panel: Galvanised steel (1.0mm)

• Roof: Molded FRP 5275 × 1980 mm

• Wheels: 14” Aluminium alloy rims with 195R14C tyres

• Spare Wheel: Included

• Axles: Two special trailer axles

• Suspension: Tandem rocker roller leaf spring (8 plates)

• Braking System: Double axle electric brakes

• Side Windows: 2 vertical and 3 sliding

• Front Window: 1220 × 610 mm

• Door Access:

  • Caravan side door

  • Rear upper door: 2020 × 1065 mm

  • Ramp door: 2020 × 1210 mm

• Struts: High-intensity anti-rust

• Hinges: 6mm diameter copper rear upper door hinges

• Drawbar: 1.2mm aluminium checker plate

• Drawbar Safety Chain: Two

• Bracing Wheel: One

• Ventilation: Two vents

• Lighting: 6 side lamps, LED rear group, internal & external LED lighting

• Trailer Plug: 7-pin square plug

 Interior Comforts & Utility

• Mudguard: Extended type with 1.2mm aluminium checker plate

• Step: 1.2mm aluminium board

• Cupboard: Installed inside

• Horse Protection: Full padded side walls

• Horse Rings: Four

• Rubber Matting:

  • Ramp door: 10mm

  • Floor: 10mm

  • Inner side panels: 6mm

• Tack Storage:

  • Saddle Rack: Inside saddle box

  • Saddle Box Height: 1200 mm

  • Rug Rack: Side mounted

  • Tack Box: Not included

 Float Dimensions

• Body Size (L × W × H): 5275 × 1980 × 2275 mm

• Inner Size (L × W × H): 5200 × 1930 × 2200 mm

• Painting: Single tone
