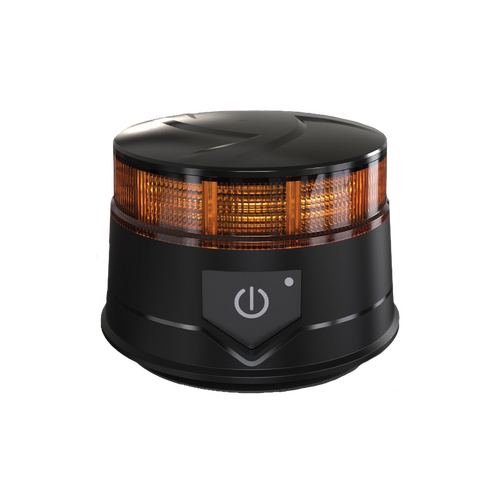

325 Series Portable LED Beacon

325 Series Portable LED Beacon

$123,456,789.00 AUD
$123,456,789.00 AUD
Sale Sold out

Product Description



Description

The BE325 LED Beacon series is an ultra high-quality range featuring Class 1 level light output for total compliance in transport or site applications. The ultrasonically sealed IP67 lens and body design ensures total protection from water or fine dust. Built for heavy-duty applications, the BE325 series is available in various mounting options as well as a lithium self-powered portable option.



Features

  • • 10-30V Varivolt®
  • • Class 1 high specification light output / CISPR 25
  • • IP67 Ultrasonically sealed lens and base
  • • 7 Programable flash modes / 4 rotation modes / 3 flashing modes
  • • Available in Stud, Pole or Magnetic mount
  • • Portable lithium battery power model option with remote control & USB charging cable



     Features



    Features

    • 10-30V VarivoltÆ
    • Class 1 high specification light output / CISPR 25
    • IP67 Ultrasonically sealed lens and base
    • 7 Programable flash modes / 4 rotation modes / 3 flashing modes
    • Available in Stud, Pole or Magnetic mount
    • Portable lithium battery power model option with remote control



     Specifications



    Specifications

    Voltage 10-30V Varivolt®
    Power:

    ST/MG/PL: 19W

    PO: 8.4W
    Environmental: IP67 Fully Sealed
    Charging Time (PO): 4 hrs
    Discharge Time (PO): 6.5 hrs
    Mounting:

    ST: Stud

    MG: Magnetic

    PL: Pole P

    O: Portable
    Certification:

    ECE R65/EMC R10

    SAE J845 class 1

    CISPR 25 class 3
    Rotation Modes: Slow anti-clockwise rotation (480ms) Slow clockwise rotation (480ms) Quick anti-clockwise rotation (300ms) Quick clockwise rotation (300ms)
    Flashing Modes Single flash Double flash Triple flash



    Parts List

    BE325A-ST Stud Mount (108x47mm)
    BE325A-MG Magnetic Mount (108x54mm)
    BE325A-PL DIN Pole Mount (92x144mm)
    BE325A-PO Portable / Magnetic (130x75mm)
    BE325-PO-USBC USB Charging Cable for BE325APO
