8 x 5 ft Tilting Motorbike / ATV / Flat Deck Trailer – ATM 750kg
8 x 5 ft Tilting Motorbike / ATV / Flat Deck Trailer – ATM 750kg
Couldn't load pickup availability
🏍️ 8x5ft Tilting Motorbike / ATV / Flat Deck Trailer – ATM 1500kg
Versatile. Rugged. Built for Adventure.
FREE CAGE
FREE SPARE WHEEL

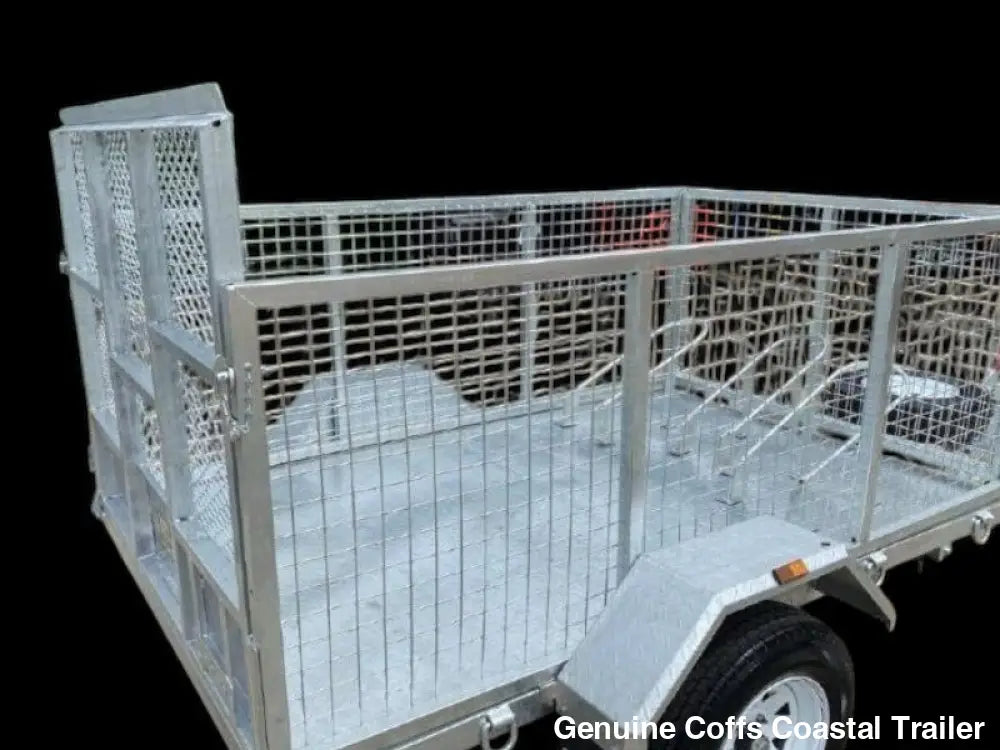

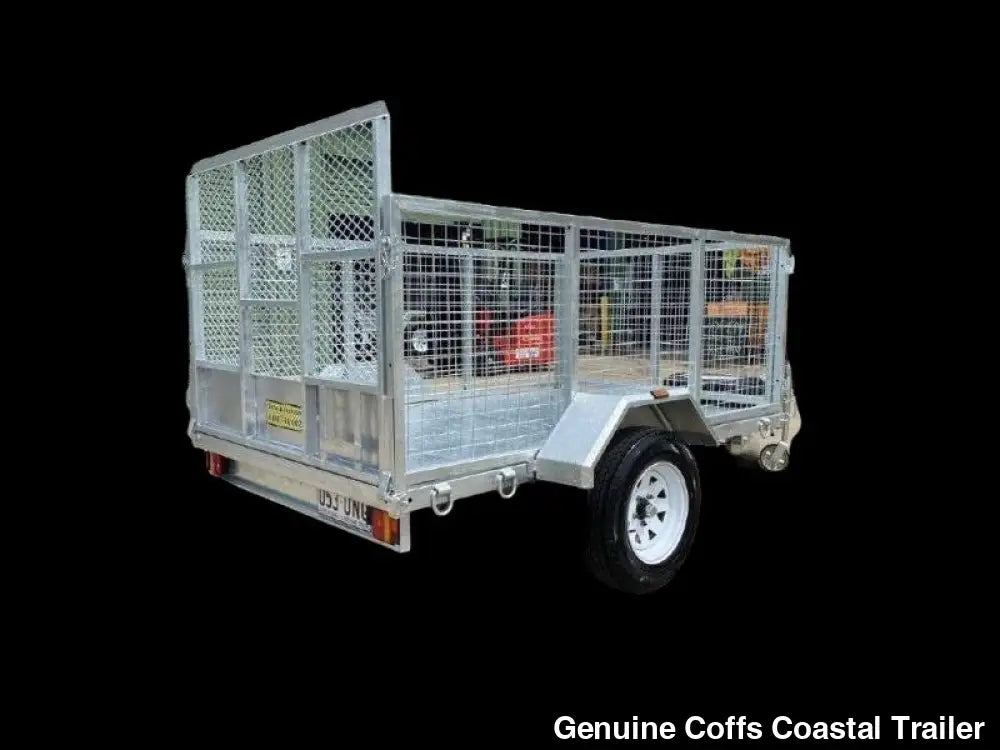

This new model trailer is engineered for flexibility and strength—ideal for transporting motorbikes, ATVs, or gear for work and play. With a tilting deck, heavy-duty construction, and a quick-remove cage system, it’s the ultimate all-rounder for riders, tradies, and weekend warriors.
🎁 Bonus Inclusions:
-
✅ FREE 900mm high heavy-duty cage (quick install & removal)
-
✅ FREE full-size spare wheel
🔧 Key Features:
-
🛠️ Multi-purpose design – use as flat deck, motorbike carrier (1–3 bikes), or ATV trailer
-
🧱 Optional cage built from 40x40mm steel with 50x50mm mesh – strongest in its class
-

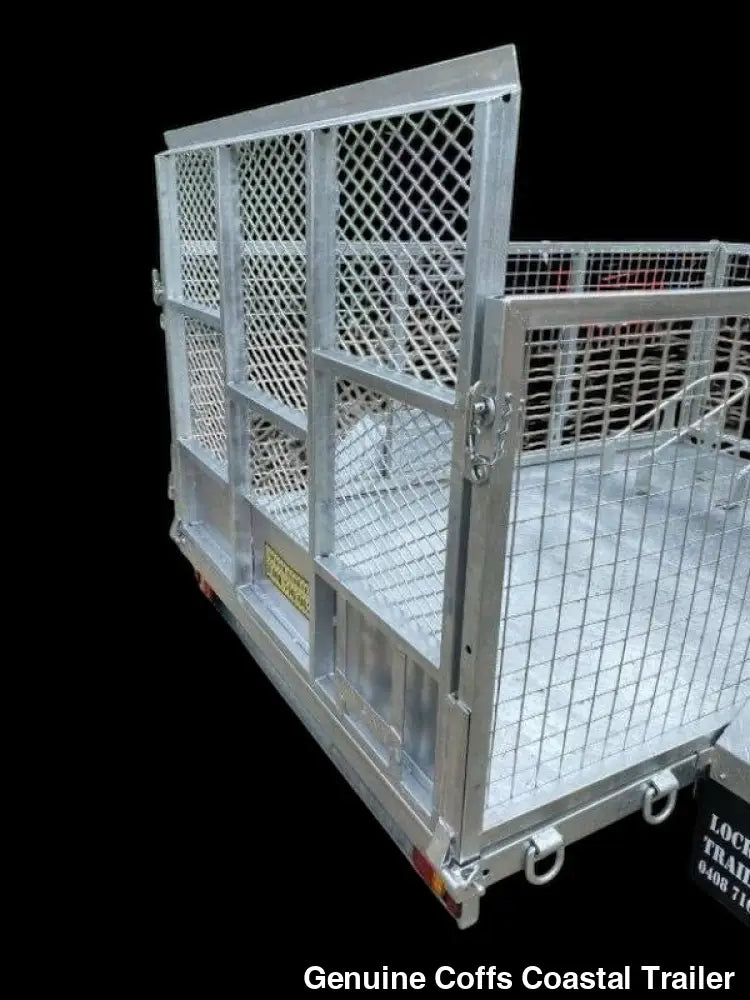

🚪 Front hinged cage gate + rear full-width drop-down ramp (1200mm long)
-
🔩 Easy tilting mechanism for fast loading
-
🧊 Hot-dipped galvanized for rust-free durability
-

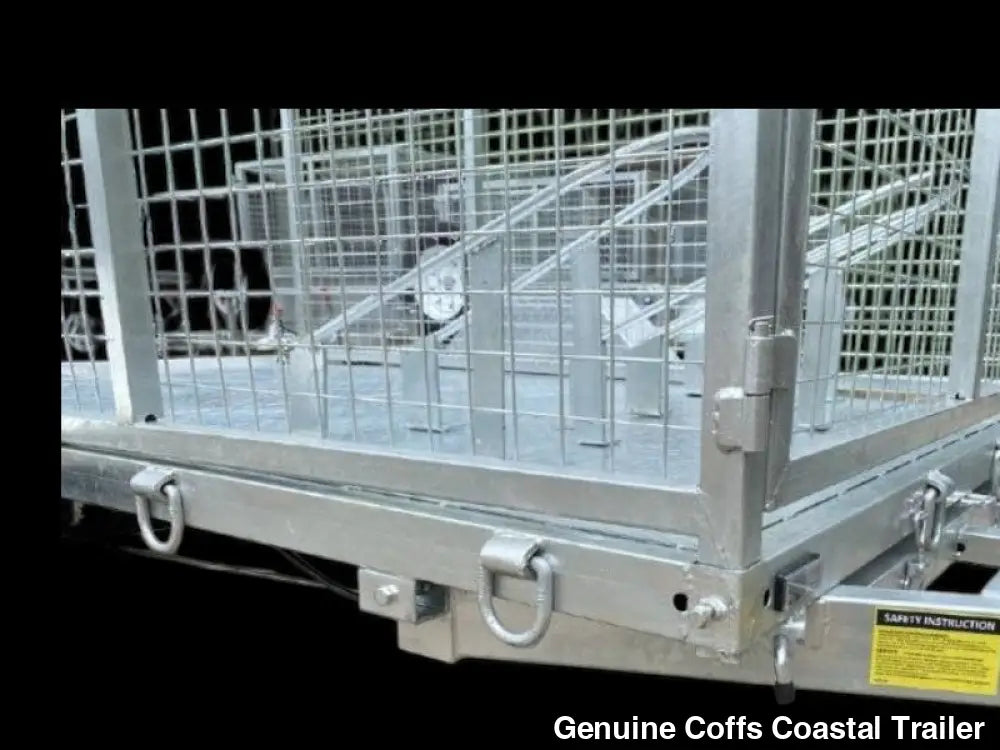

🔗 Heavy-duty tie-down rings – 4 per side + 2 front
-
🛞 Mechanical disc brake system with integrated handbrake
-
💡 Multi-volt 10–30V LED lights with side markers
📐 Specifications:
Feature | Detail |
---|---|
ATM | 1,500kg |
Tare | 370kg |
Payload | 1,130kg |
Deck Dimensions | 2530mm x 1630mm |
Internal Cage Dimensions | 2430mm x 1540mm (with optional cage) |
Drawbar | 1650mm, 100x50mm steel |
Floor | 2.5mm checker plate |
Axle | Solid 50mm |
Brakes | 2T inertia mechanical disc with handbrake |
Bearings | Japanese Ford Slimline |
Suspension | 8-leaf eye-to-eye springs (1,500kg rated) |
Jockey Wheel | 8” swing-up |
Wheels & Tyres | 14” x 5 stud Sunraysia rims, 185 R14 light truck tyres |
Lighting | Multi-volt LED (10–30V) |
💪 Why It’s a Standout:
-
Built tough for Australian conditions
-
Quick conversion between flat deck, cage, and bike carrier
-
Easy loading with tilt deck and full-width ramp
-
Premium components and fully welded construction
📍 In stock now – ready to roll! 📞 Contact us today to inspect or reserve yours.
