Tri-Axle Container Trailer – ATM 4500kg |

Available for Order — Fast Pickup & Delivery from Coffs Harbour

CCT®is one of Australia’s leading trailer manufacturers, supplying premium-quality trailers direct from our Rocklea factory in Brisbane. We serve customers across Brisbane, Gold Coast, Toowoomba, Caboolture, Sunshine Coast and beyond.

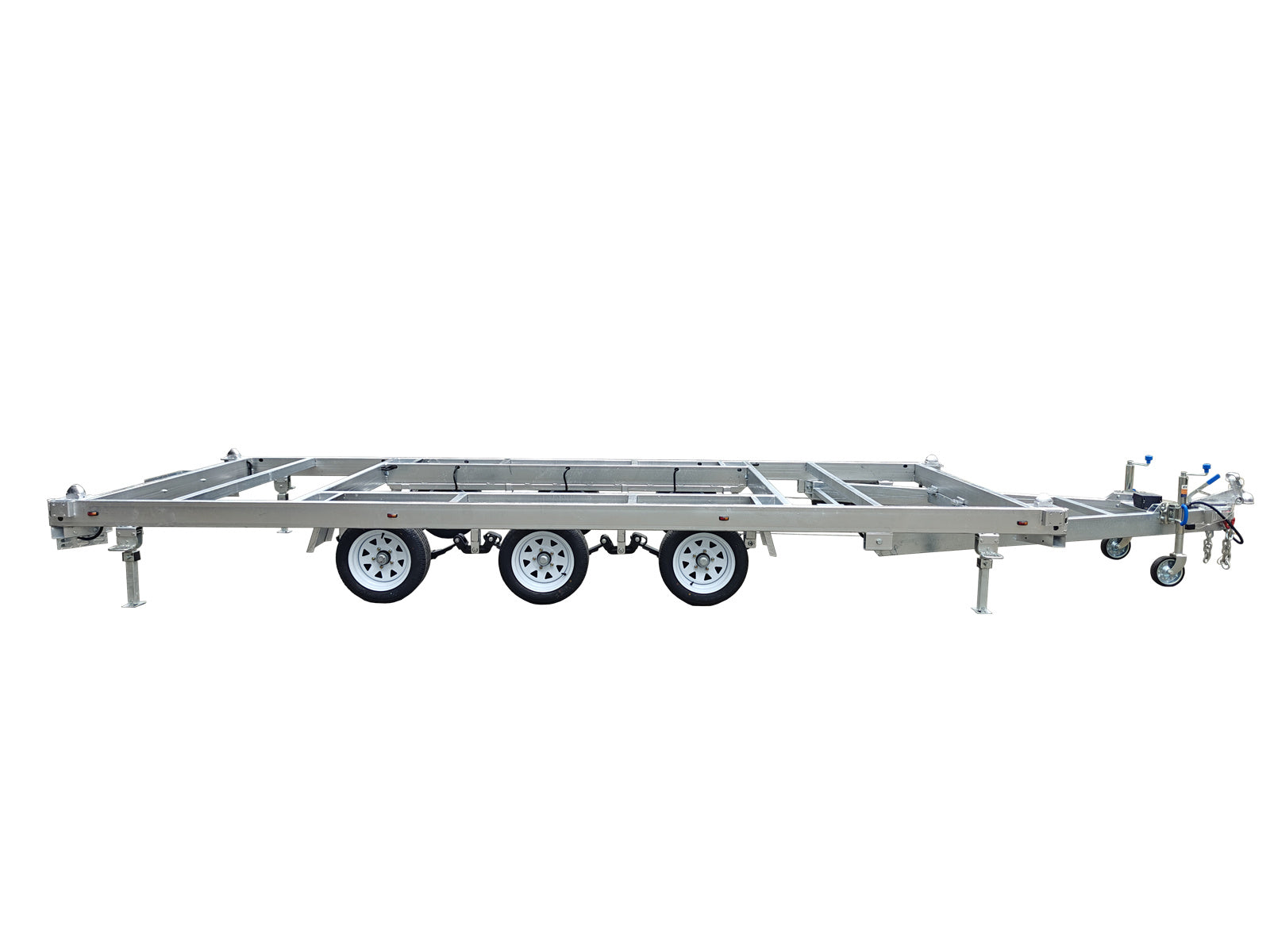

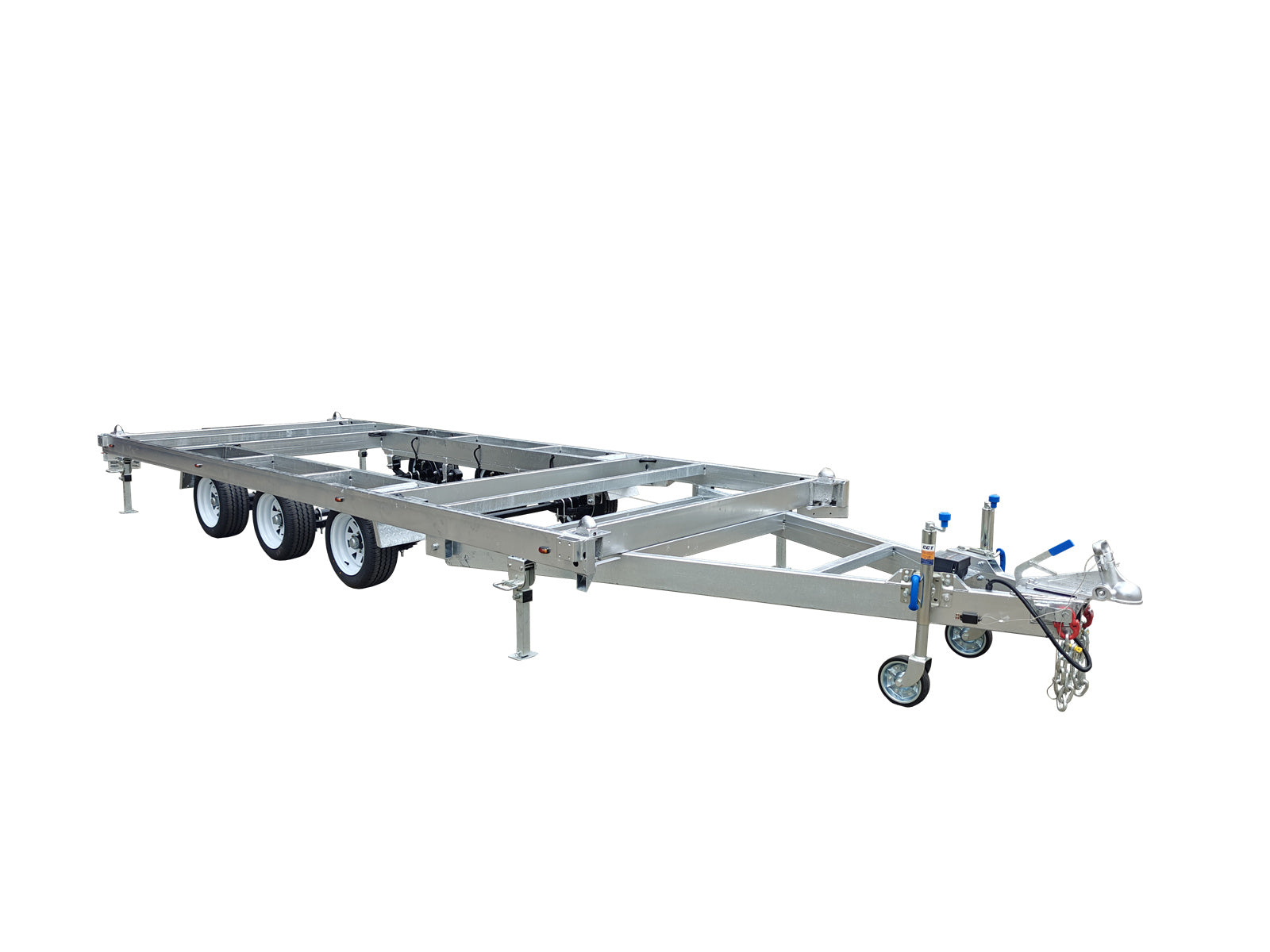

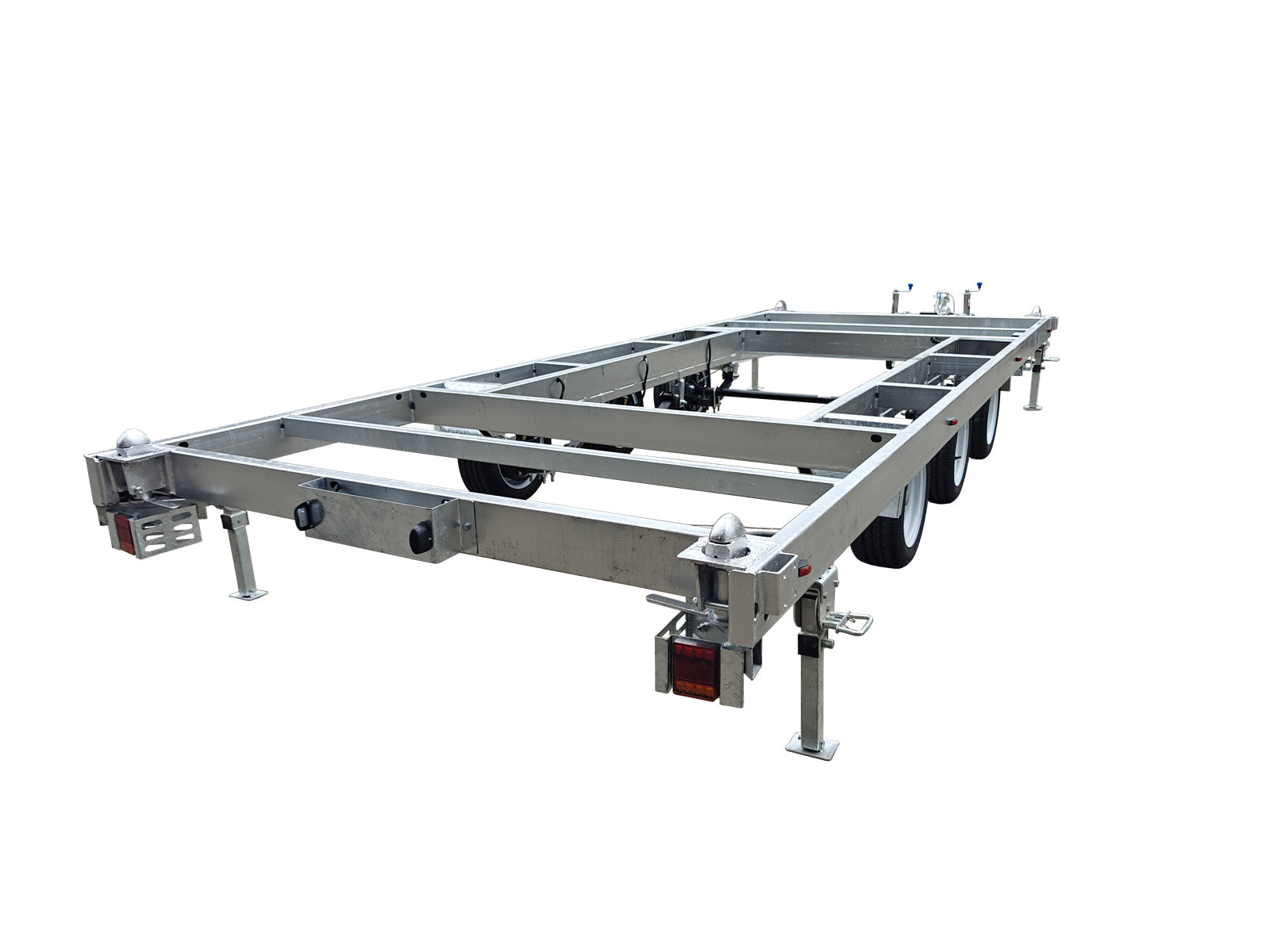

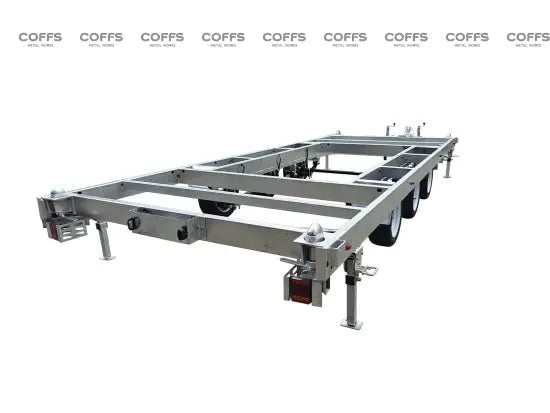

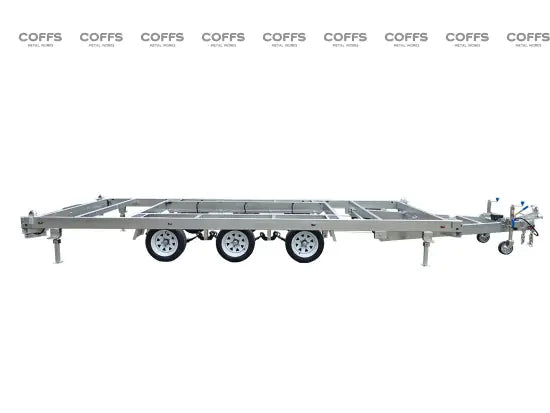

The Tri-Axle Container Trailer – ATM 4500kg from CCT® is engineered to safely and efficiently carry heavy containers, site sheds, and modular structures. It features four corner-mounted container twist locks with a longitudinal spacing of 5520mm and transverse spacing of 1953mm, accommodating a wide variety of structural bases and portable buildings.

The trailer’s structure is built from fully welded 150mm x 50mm RHS and finished in hot-dip galvanisation for outstanding corrosion protection. Its rocker roller suspension and tri-axle configuration provide enhanced towing stability, while 10” electric drum brakes deliver reliable braking control. This model includes dual 8” swing-up jockey wheels, LED lighting, and a 70mm 4500kg-rated coupling.

Key Features

• Hammerlock-connected safety chains for a strong, secure, and professional setup – built to last

• ATM: 4500kg

• Tare weight: 1000kg

• Payload capacity: 3500kg

• 3 x axles with rocker roller suspension

• Four container twist locks (5520mm L x 1953mm W center spacing)

• Chassis: 150mm x 50mm RHS, fully welded

• Drawbar: 1740mm, 150mm x 50mm RHS

• Hot-dip galvanised finish for corrosion resistance

• 10” electric drum brakes (all axles)

• Tyres: 195/50R13C

• 70mm heavy-duty coupling (rated to 4500kg)

• Dual 8” swing-up jockey wheels

• LED lighting system, 12V–24V compatible

• 7-pin plug: Flat / Small Round / Large Round

Applications

• Compatible with custom container-based structures

• Modular office, kiosk, or portable building base

• Equipment transport for construction or farming

• Platform for tiny home chassis (check lock spacing)

• Ideal for commercial and rural operators needing high-capacity payloads
