LED Beacon Class 1 150mm 10-30V Magnetic Mount
LED Beacon Class 1 150mm 10-30V Magnetic Mount
Couldn't load pickup availability
Product Description
Description

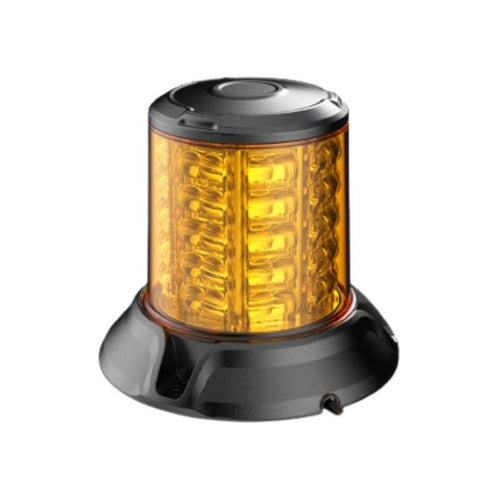

The Whitevision BE385 Series LED Beacons represent the peak of heavy-duty beacon engineering, designed for maximum durability and uncompromising performance. Standing at 150mm tall, this full-height, high-profile beacon delivers SAE Class 1 brightness through advanced optics and 46W high-power LEDs, producing an exceptional emergency-class light output.
Built to thrive in the toughest conditions, the BE385 Series features a virtually indestructible polycarbonate lens and housing, offering superior resistance to impact, vibration, and environmental exposure. The unit is fully sealed to IP67 standards, ensuring total protection from dust and water ingress.With a 10–30V operating range, seven selectable flash patterns (including rotating), and EMC R10 and CISPR25 Class 3 compliance, these beacons meet the highest standards for vehicle safety lighting. Available in both screw-mount and magnetic-mount configurations, the BE385 Series is the ideal choice for heavy-duty applications across mining, construction, and civil industries.
Features
- • Heavy-Duty High Profile 150mm
- • Powerful Class 1 Output
- • Weatherproof Design (IP67)
- • Extreme Durability
- • 7 Flash Patterns
Features
Features
- • Heavy-Duty High Profile 150mm
- • Powerful Class 1 Output
- • Weatherproof Design (IP67)
- • Extreme Durability
- • 7 Flash Patterns
Specifications
Specifications
| Voltage: | 9-33V Varivolt® | |
| Functions: |
7 Flash Patterns Single / Quint Double / Strobe Triple / Rotating Quad |
|
| Lens: | Polycarbonate | |
| Housing: | Polycarbonate | |
| Mounting: | Surface Screw Mount / Magnetic Option | |
| Environmental: | IP67 | |
| Compliance: | Class 1 SAE CISPR 25 Class 3 EMC R10 | |
Parts List |
|
| BE385-ST | LED Beacon Class 1 150mm 10-30V Screw Mount |
| BE385-MG | LED Beacon Class 1 150mm 10-30V Magnetic Mount |
