Tilting Tandem Plant & Machinery Trailer

🏗️ NEW DESIGN – Tilting Tandem Plant & Machinery Trailer

10ft x 5ft 7in | ATM 3,500kg (Upgradeable to 4,490kg) Built for Excavators, Bobcats, Scissor Lifts & More

This extra heavy-duty tilting trailer is engineered for serious work. With a massive payload capacity, full mesh deck, and reinforced drawbar, it’s perfect for transporting a wide range of machinery and attachments. The new tilt design offers unmatched versatility, making loading and unloading fast and efficient.

⚙️ Key Features:

• 🔧 ATM 3,500kg (Upgradeable to 4,490kg)

• 📦 Payload: 2,700kg (or 3,690kg in upgraded configuration)

• 📏 Deck Size: 3,000mm x 1,700mm

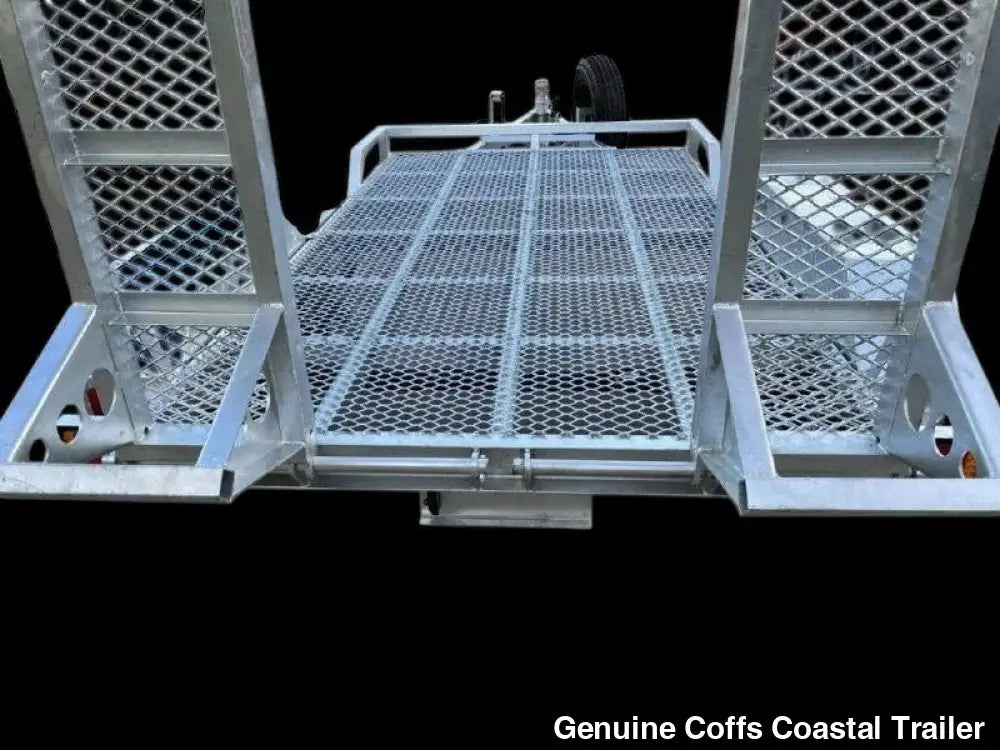

• 🛠️ Full expanded mesh floor for grip and drainage

• 🚜 2.2m reinforced drawbar with cross members for buckets & attachments

• 🔩 Fully welded frame & chassis – built to last

• 🧊 Hot-dip galvanized for corrosion resistance

• 🛞 60mm solid square axles (rated to 4,500kg)

• 🛑 Emergency breakaway system included

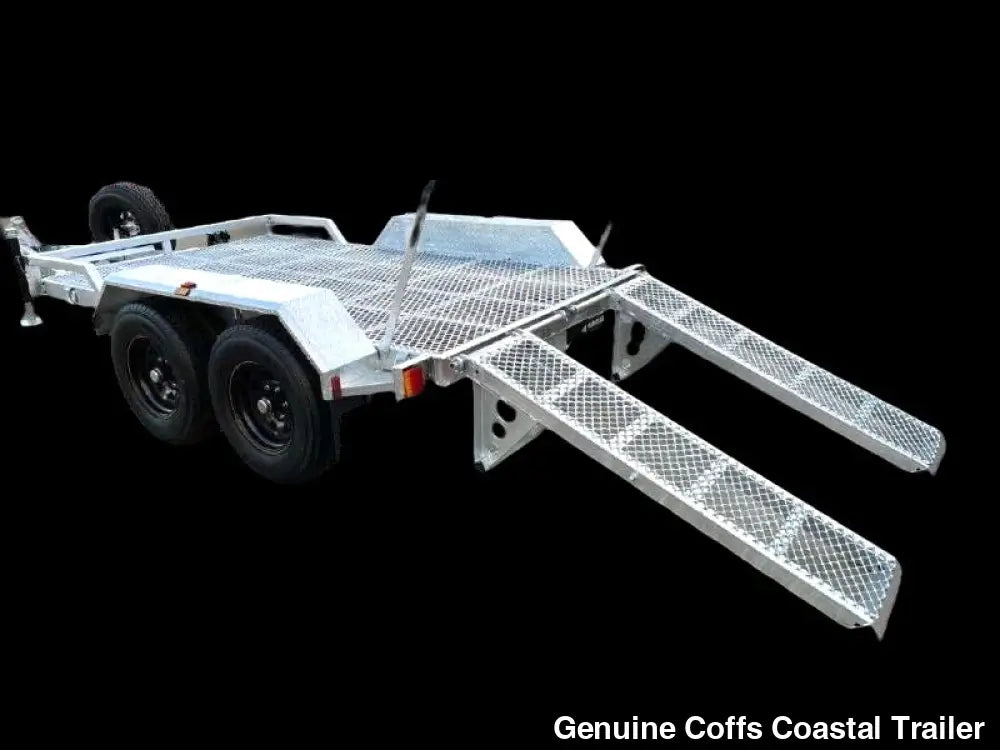

• 🪜 Heavy-duty fold-down ramps with anti-squat brackets

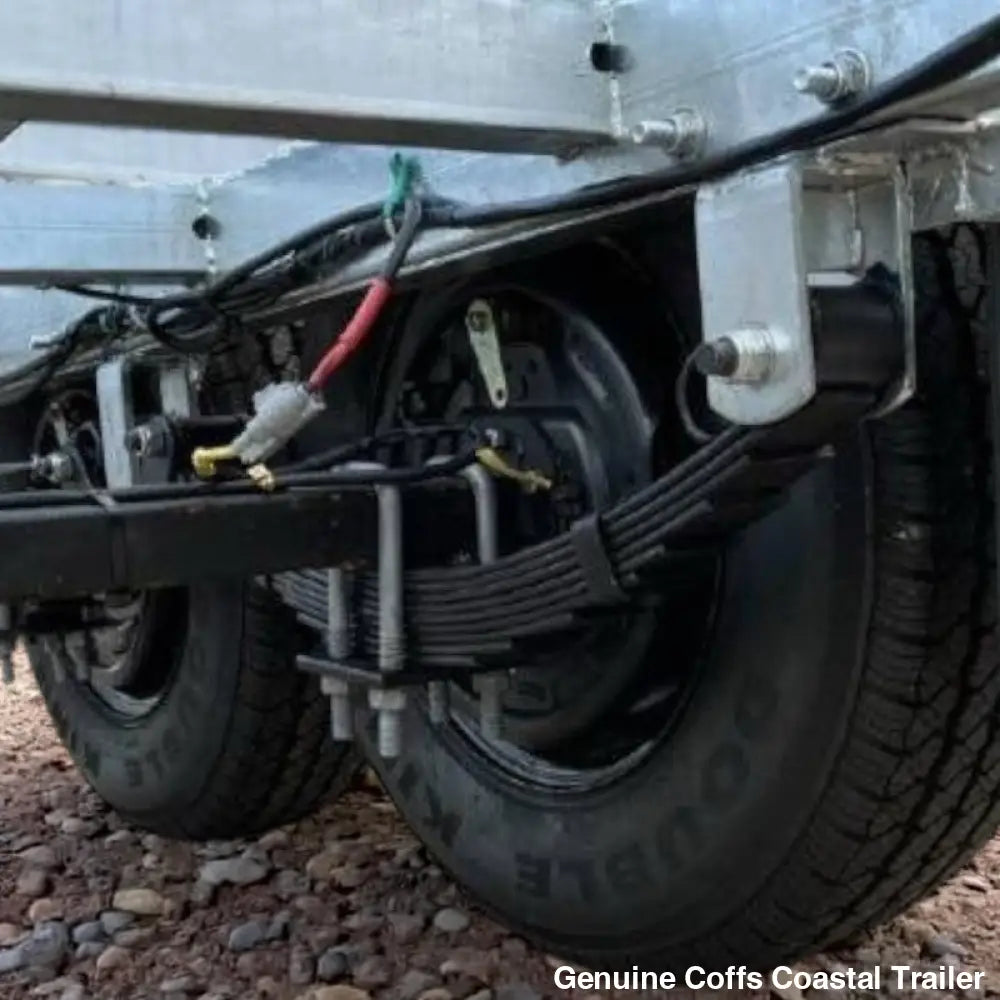

• 🌀 Rocker roller suspension – 9-leaf load share springs (4,500kg rated)

• 🔗 6 high-strength fold-down tie-down points

• 💡 Multi-volt 10/30V LED lights with side markers

• ⚙️ Adjustable heavy-duty jockey stand

• 🔒 50mm 3.5T quick release coupling

• 🧲 Tow hitch brake & handbrake

• 🔗 2x safety chains with hammerlock system & 4,500kg D-shackles

🛞 Wheels & Tyres:

📐 Ramp Specs:

• Length: 1,600mm

• Width: 400mm

• Design: Hinge-down with anti-squat brackets

• Multi-position folding for flexible loading angles

💬 Why This Trailer Stands Out:

• Designed for large-scale machinery transport

• Tilt deck eliminates need for steep ramp angles

• Reinforced drawbar accommodates front-end attachments

• ADR-compliant lighting and braking systems

• Built tough for Australian conditions

📞 Call now for pricing on the 4,490kg ATM upgrade or to customize your build.
