A massive flat deck trailer design with a variety of fit outs and ATMs. The Tri Axle trailer is configured with an ATM of 4500kg.
The tandem axle trailer in current configuration with an ATM of 3.5 ton is upgradable to 4 ton if required.
On-site Registration is available, along with other Options, Other ATM’s, Winch, Spare Tyre and Bracket
Extra Heavy Duty Flat Deck Hydraulic Tipping Trailer ATM 4.5 tonne (4,500kg)
A massive flat deck trailer design with an ATM of 4500kg.Engineered to 6000 kg in strength.
This Tri Axle trailer featured here is currently configured with an ATM of 4500kg.
Call for Availability

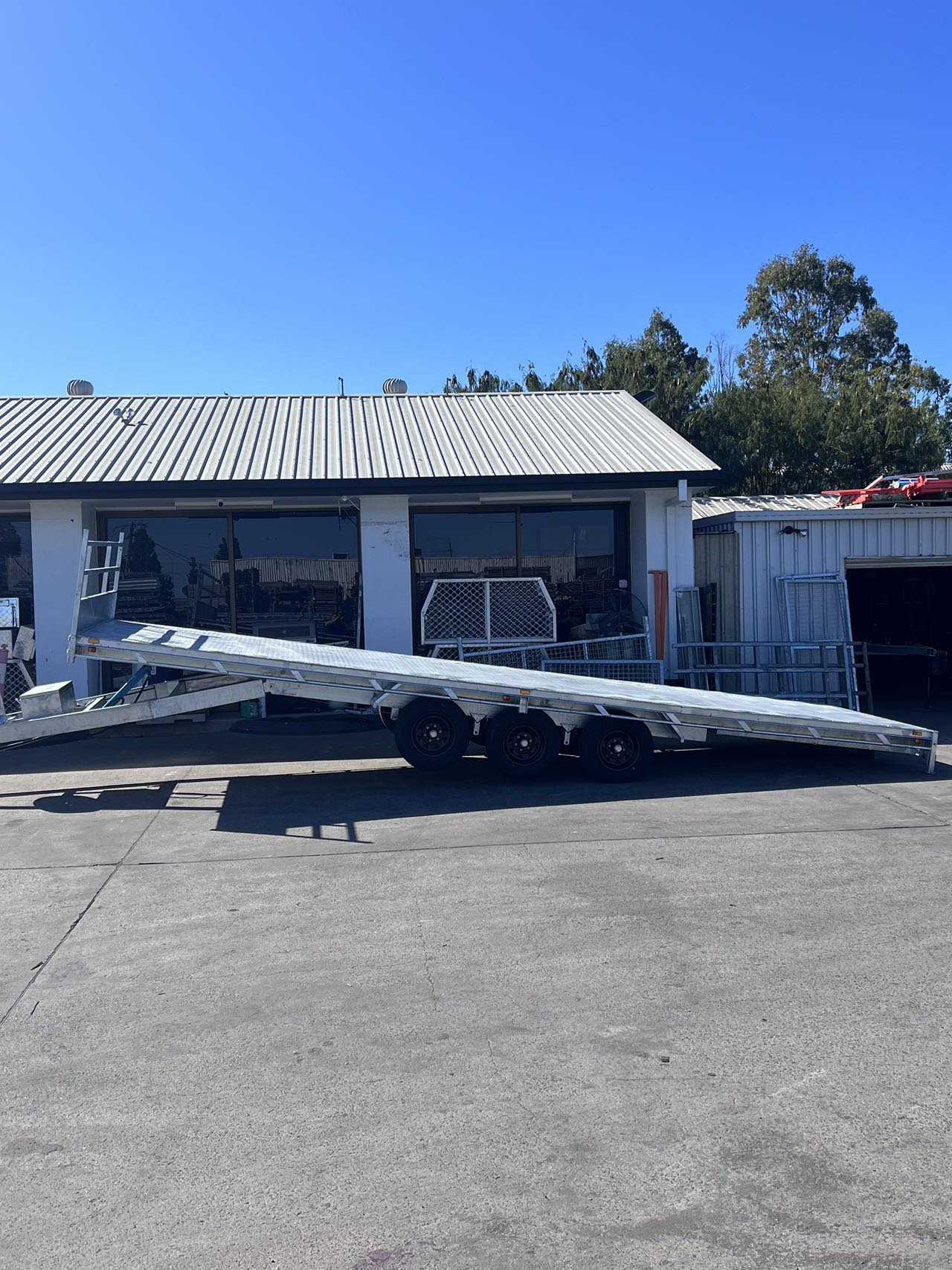

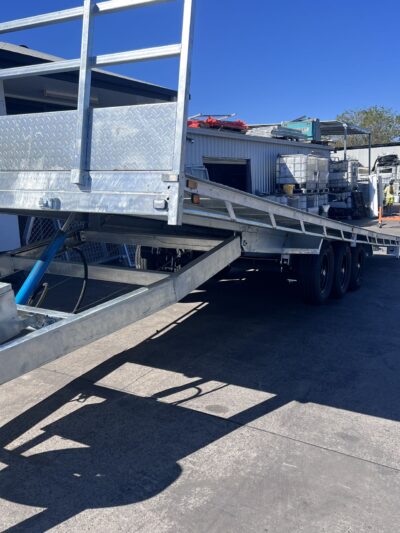

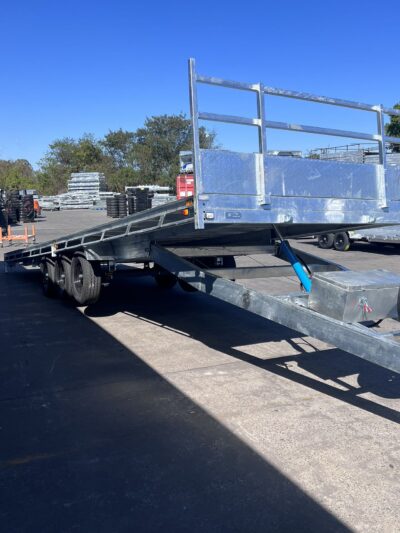

This trailer is unique in every way and features an underbody hydraulic tilting system, pull-out loading ramps housed underneath the trailer deck
Trailer has been designed to incorporate an optional 12,000lb remote-controlled electric winch housed at the front of the trailer deck. This new design trailer is a great asset for machinery operators, farmers, tradespeople, and anyone looking for a high-volume robust and versatile flat deck trailer.
DESCRIPTION AND SPECIFICATIONS
- DECK SIZE: 8m x 2.4m
- Tare 1860kg Bare trailer. Tri-Axle ATM: 4.5tonne
- 150mm & 120mm & 100mm Min Structural chassis System and Drawbar ultra-strong and flexible
- Under body extra bracing for maximum strength and long-lasting construction
- ATM 4500kg Tri Axle
- Fully Welded Hot Dip Galvanised Heavy-Duty Body and Chassis.
- Toolbox Galvanized for battery and Hydraulic Pump fitted
- 1 x Deep cycle Gel Battery
- Hydraulic Tilt action loading dual Heavy-duty locks
- Heavy Duty slide out Loading Ramps
- Tie Rails full length both sides for straps or chains
- Heavy Duty DEXTER Bearings (USA)
- 60sq Axle Solid Each Axle rated at 2000kg each Tri Axle (6Ton Rated)
- Fitted with 6 x 12inch Electric Brakes
- Quality Emergency Breakaway Unit fitted
- LED lights with Marker Lights on the sides. ADRs Compliance
- 70mm 4.5t Quick Release or 6000kg Ring Pull Coupling for Tri Axle Trailer
- 2300mm Long Draw Bar. With 150mm x 70mm x 9mm
- Load Sharing Rocker Roller Suspension with Heavy Duty 9 Leaf Springs
- LAND-CRUISER 6 stud 16inch wheels on tri-axle 4490 kg ATM with brand new 205 R16c Light Truck Tyres
- Fitted with wind Up 7000lb Heavy Duty Jockey Stand
