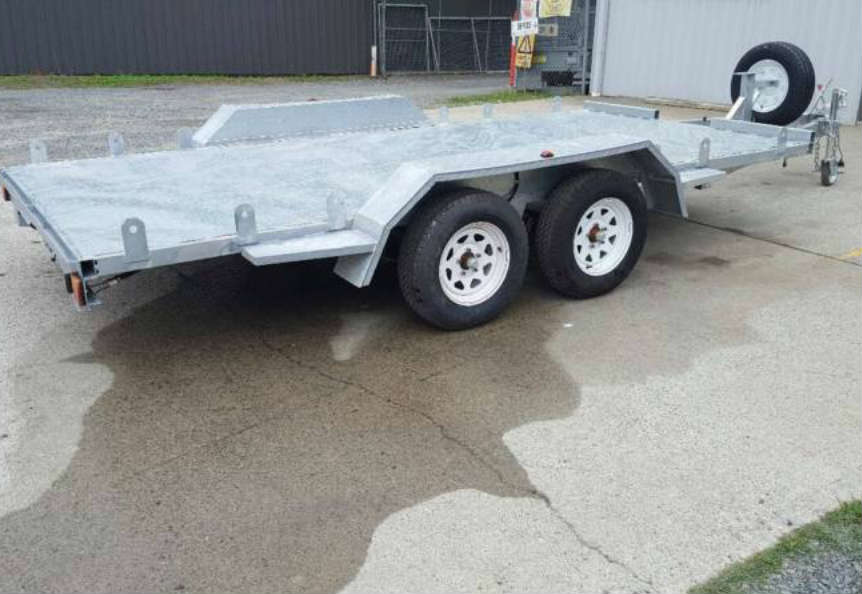

Car 5m (16.6×6.6ft) Manual Tilt Car/Bobcat Trailer ATM 3500kg

Car 5m (16.6×6.6ft) Manual Tilt Car/Bobcat Trailer ATM 3500kg

$8,950.00 AUD
$8,950.00 AUD
Sale Sold out

AVALABLE FOR PICK UP COFFS HARBOUR AND BRISBANE
Constructed with a 125mm structural chassis and equipped with extra bracing for trade use, the Car 5m (16.6×6.6ft) Manual Tilt Car/Bobcat Trailer boasts a rust-free and heavy-duty body and chassis with a maximum ATM of 3500kg. It features sturdy DEXTER bearings, heavy slide out ramps, and extra tie down points for secure transportation. The trailer also includes 12" electric brakes, quality breakaway unit, and LED lights with marker lights on the sides, all complying with ADRs. Utilizing a quick release coupling, a 1900mm long draw bar, and a 3500KG tow hitch with brake/handbrake, this trailer is perfect for commercial and tradesman use. Equipped with Land-Cruiser 6 stud 15 brand new 195 R15c white sunraysia light truck tyres, it also comes with a wind up heavy duty jockey wheel for easy maneuvering



  • DECK SIZE: 5 x 2m  (16.6 x 6.6ft)
  • 125mm Structural chassis supper strong and flexible
  • Under body extra bracing for trade use long lasting construction
  • Rust Free. ATM 3500KG
  • Fully Welded Heavy Duty Body and Chassis. Rust Free. Great for Commercial & Tradesman use
  • Tool box Galvanized Heavy duty

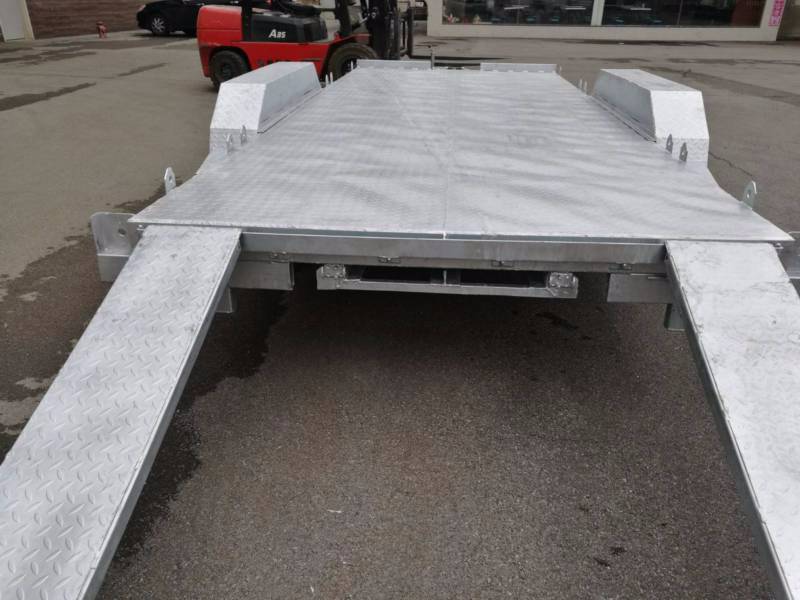

  • Tilt action loading dual Heavy slide out ramps
  • Extra Tie down Points for straps or chains
  • Heavy Duty DEXTER Bearings for trade use
  • Each Axle rated at 2000kg each
  • Comes with 12″ Electric Brakes
  • Quality Breakaway Unit fitted
  • LED lights with Marker Lights on the sides. ADRs Complied.
  • Tie down points All Around.
  • 50mm 3.5t Quick Release Coupling
  • 1900mm Long Draw Bar. With 125mm x 55mm x 6mm
  • 3500KG Tow hitch brake/handbrake
  • 50mm Solid Axles. Rocker Roller Suspension with Heavy Duty 9 Leaf Springs
  • LAND-CRUISER 6  stud 15.
  • Brand new  195 R15c White Sunraysia Light Truck Tyres
  • Comes with wind Up  Heavy Duty Jockey Wheel



  • OPTIONAL EXTRAS:
  • 70mm Tow Hitch Available at a Extra cost

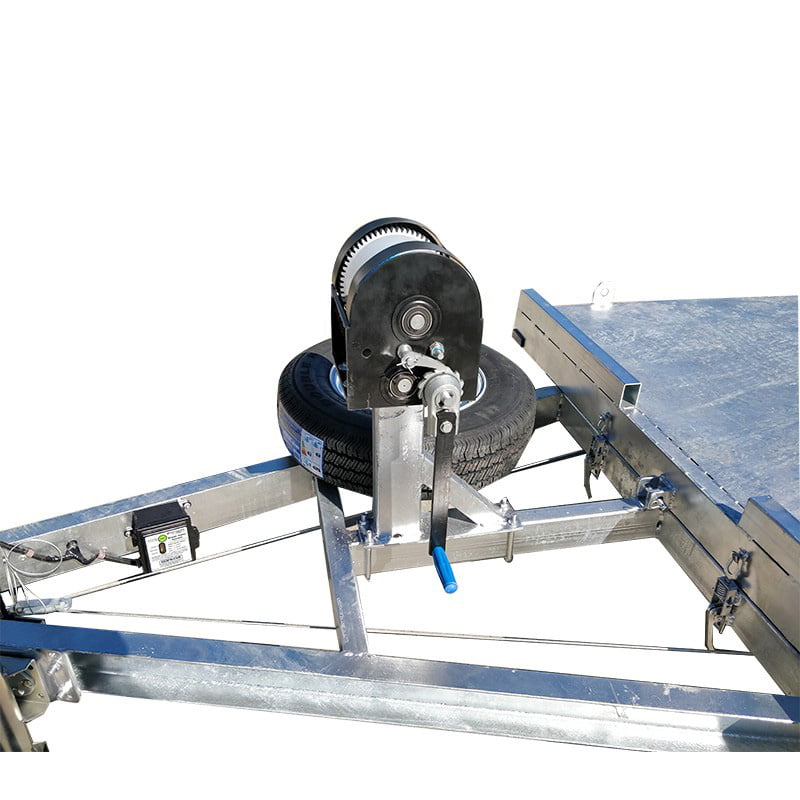

  • 5500kg Electric 4×4 remote Control Winch, with all cables & bolts
  • 4500kg extreme Hvy Duty Manual Braked Hand Winch
  • 100Ahm AGM Gel Battery
  • Battery Hot Dipped steel battery box to suite 100Ahm AGM Gel Battery
  • 15″ 6 stud Landcruiser  Spare tyre & Rim

Specifications

Model: 16.6ft x 6.6ft 3.5T Car Trailer
ATM: 3500kg
Chassis: 5000mm x 2000mm
Internal Trailer Size: 5000mm x 2000mm

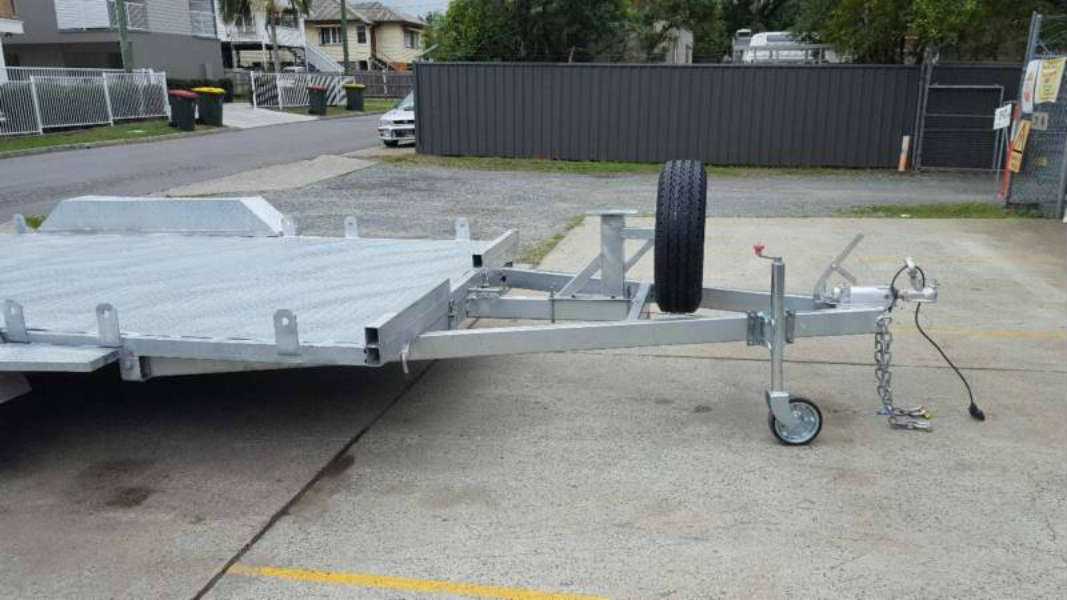

Drawbar: 1900mm Long, 125mm x 55mm x 6mm C-Channel
Body: Flat Bed / Tilt Tray
Finish: Hot Dipped Galvanized
Side Guards 210mm From Floor to Top
Flooring: 2.5mm Checker plate with ranforced bracing
Cage: NIL
Jockey Wheel: 8″ Heavy Duty Swing Up
Wheel: New 195R15C Wheels and Tyres
Spare Wheel and Holder: Optional
Brake: 12″ Elec  Drum Brakes x 4
Axle: Dual Axle, 50mm Round Solid Axles
Coupling: 50mm Australia Standard
Lights: LED
Lights Plug: Flat 7 Pin Plug
Spring: 9 Leaf Heavy Duty Rocker Roller Spring
Safety Chain: 2 x 12mm
Ladder Racks: NIL
Warranty: 12 months Limited Warranty
