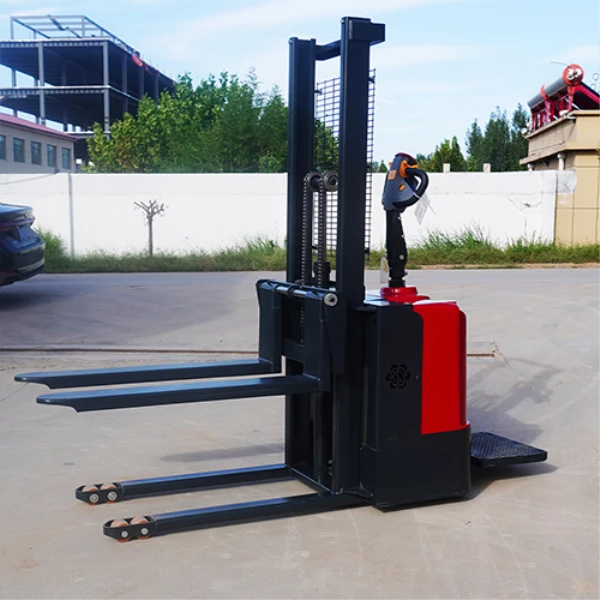

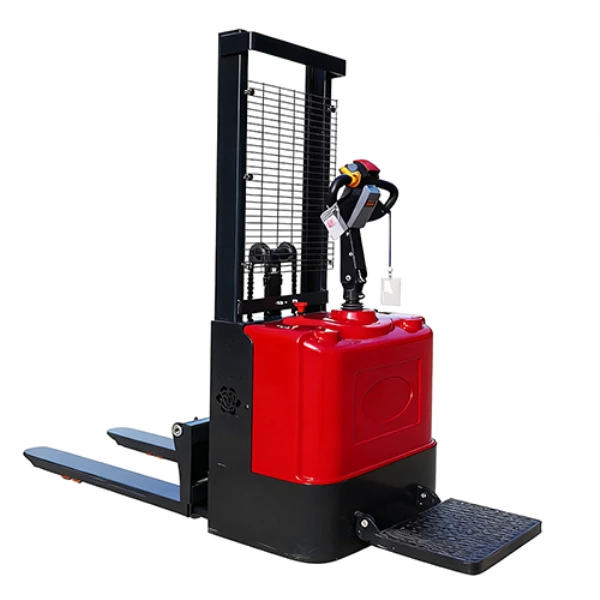

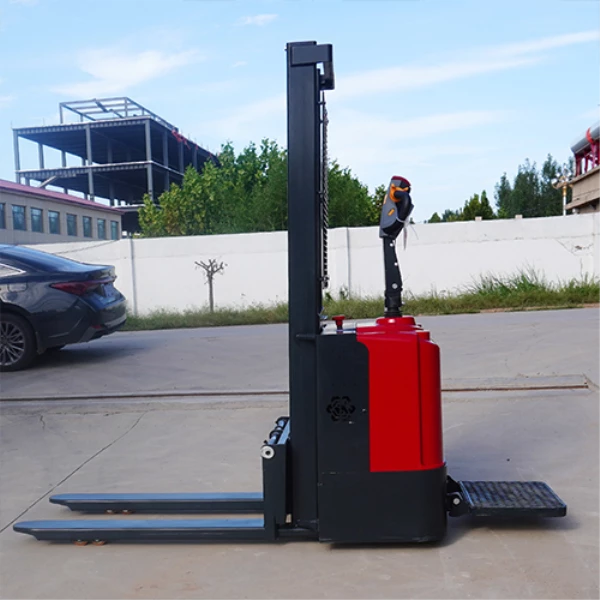

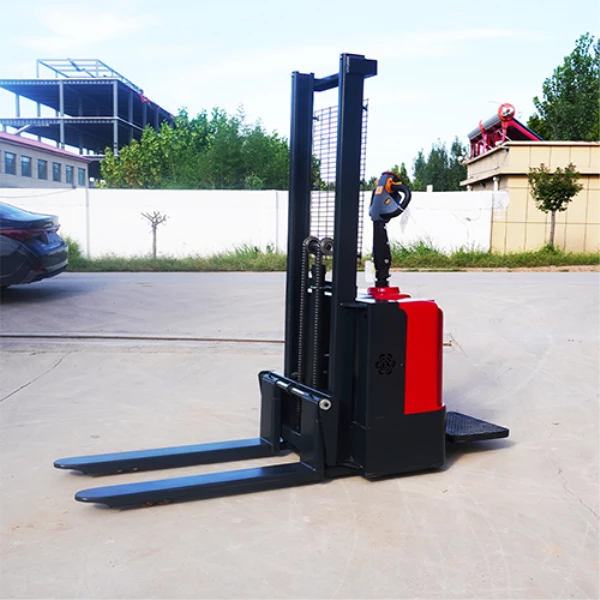

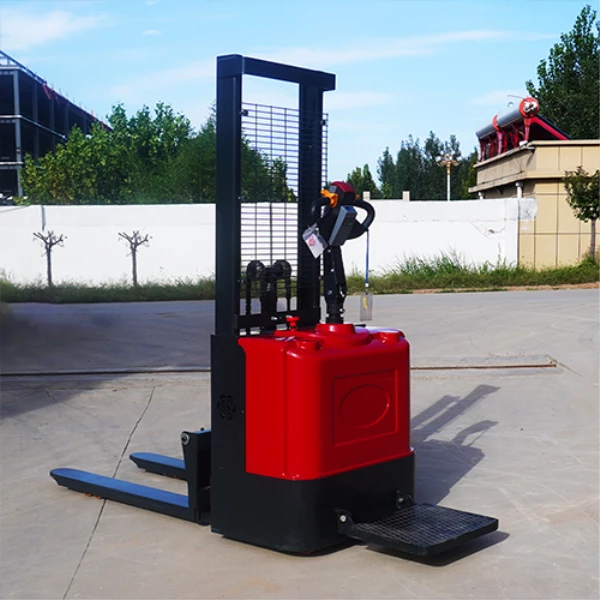

CMW‑Stacker2000 – 2‑Ton Stand‑On Electric Stacker

Australian‑Engineered • Ultra‑Narrow • High‑Lift Stacking up to 4000 mm

The CMW‑Stacker2000 from Coffs Metal Works is an Australian‑engineered stand‑on electric stacker designed for high‑density indoor storage environments. Built to our strict specifications and supported locally, it delivers exceptional agility, precise control, and clean electric performance — perfect for narrow‑aisle warehouses, retail distribution centres, and light industrial facilities.

With an ultra‑narrow 855 mm body, stand‑on operation, and lifting heights up to 4000 mm, the CMW‑Stacker2000 maximises storage density while maintaining safe, efficient pallet stacking in spaces where traditional forklifts simply cannot operate.

🔧 Key Specifications

• Model: CMW‑Stacker2000
• Type: Stand‑On Electric Stacker
• Rated Load Capacity: 2000 kg
• Maximum Lifting Height: Up to 4000 mm (customisable)
• Vehicle Width: 855 mm
• Turning Radius: 2100 mm (loaded)
• Battery System: 48V / 20Ah maintenance‑free (upgradeable)
• Lift Motor: 2.2 kW

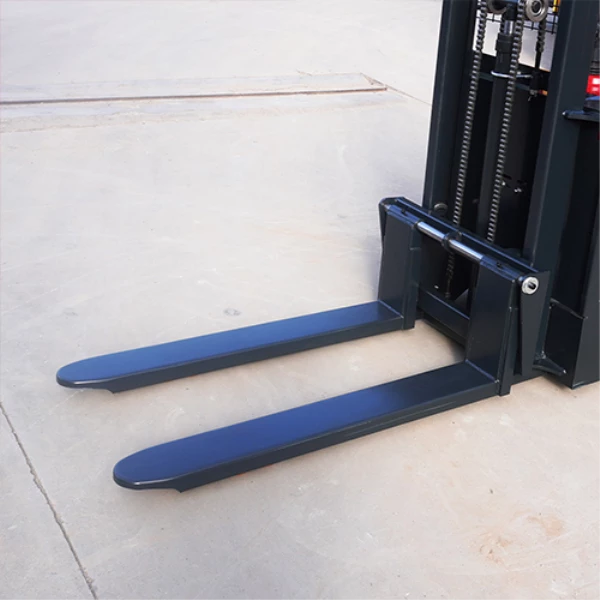

• Fork Spacing: 0–800 mm adjustable

🌱 Why the CMW‑Stacker2000 Excels

Each benefit includes a Guided Link so you can expand the topic anytime.

• Ultra‑Narrow Design — Navigate aisles as tight as 1.0 m, increasing racking rows and storage density.
• Zero‑Emission Operation — Clean, quiet, and ideal for indoor environments.
• Low‑Maintenance Power — Maintenance‑free battery and simplified electric drive reduce downtime.
• Precise Speed Control — MOS stepless control ensures smooth acceleration, lifting, and lowering.
• High‑Lift Capability — Up to 4000 mm lift height for efficient vertical stacking.
• Australian Engineering Oversight — Designed by Coffs Metal Works for durability, safety, and real‑world usability.
• Full Australian Warranty — Local support, local parts, and long‑term peace of mind.

🏭 Built for Tight, High‑Density Storage

The CMW‑Stacker2000 is ideal for:

• Narrow‑aisle warehouses
• Retail distribution centres
• Manufacturing workshops
• Inventory rooms & small industrial facilities

Any site where space is limited and vertical storage is essential

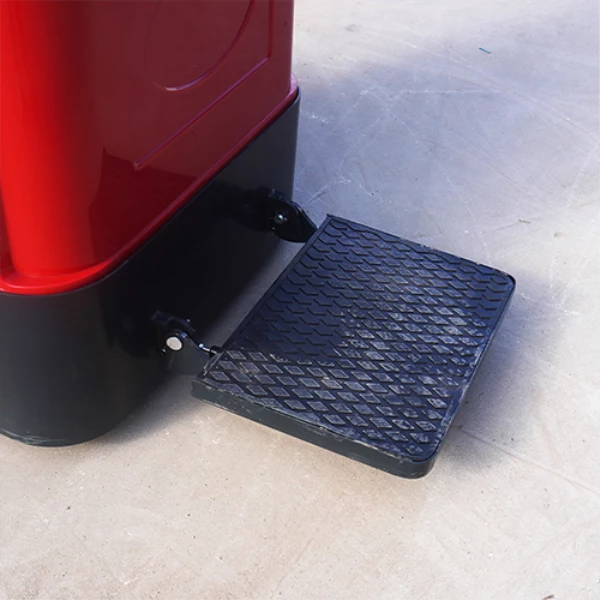

• Its foldable stand‑on platform, compact footprint, and tight turning radius make it perfect for operations that need maximum efficiency in minimal space.
•

• 🔒 Safety & Operator Comfort
• Electromagnetic braking for instant stopping power
• Polyurethane wheels to protect indoor floors
• Dual load wheels for stability at height

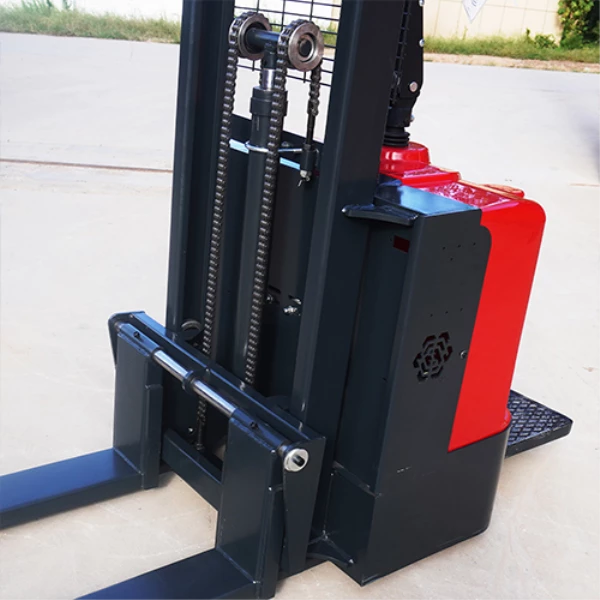

• 12‑gauge forklift‑grade steel mast for structural strength

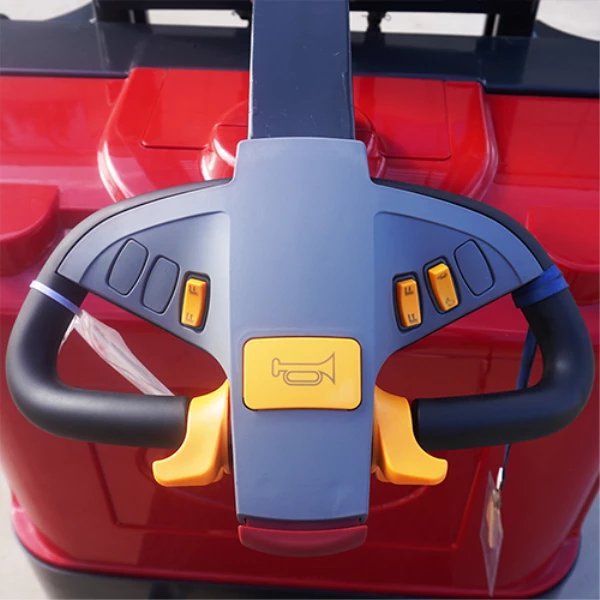

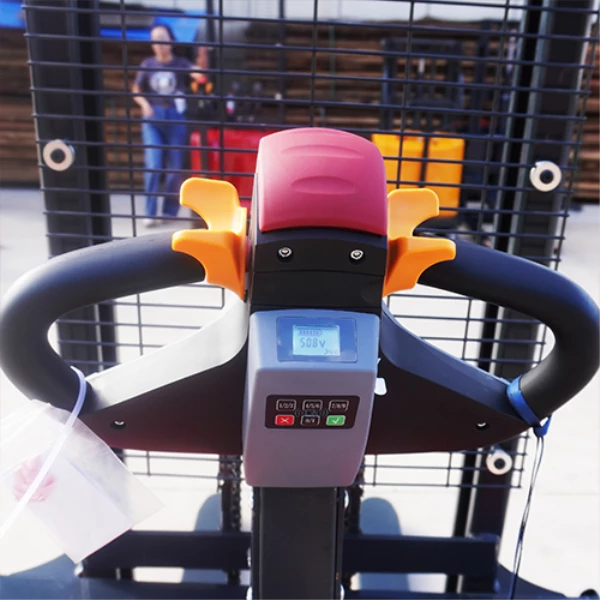

• Ergonomic control layout to reduce operator fatigue
• Protective overhead guard for safe operation in busy facilities
•

• 🇦🇺 The Coffs Metal Works Advantage
• The CMW‑Stacker2000 is Australian‑designed, Australian‑specified, and Australian‑supported. Every unit is built to Coffs Metal Works’ engineering standards and backed by our full Australian warranty, ensuring reliability, serviceability, and long‑term value for your business.
