AQUAIDEA LED - UNDERWATER TRANSOM LIGHT 6 pack - SURFACE MOUNT - JB20W & B20W (Copy)

AQUAIDEA LED - UNDERWATER TRANSOM LIGHT 6 pack - SURFACE MOUNT - JB20W & B20W (Copy)

$2,058.00 AUD
$2,058.00 AUD
Sale Sold out

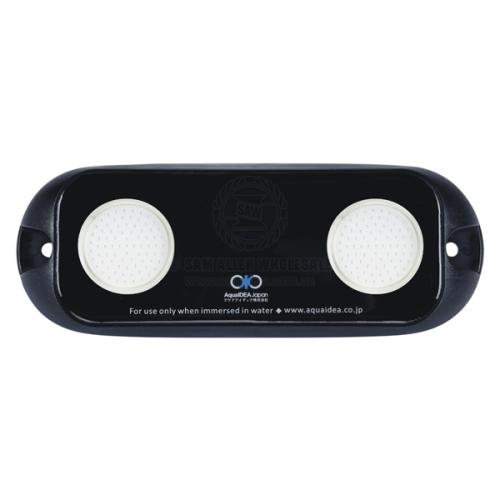

AquaIDEA B‑Series Underwater Light – Blue (Part No. 709560)

A powerful, fully sealed underwater LED light engineered for boats, docks, and trim tabs. Built with a rugged PA body, tempered glass lens, and high‑output COB LED technology, the AquaIDEA 709560 delivers exceptional brightness and long‑term reliability in harsh marine environments.


🔧 Specifications

Feature Details
Part No. 709560

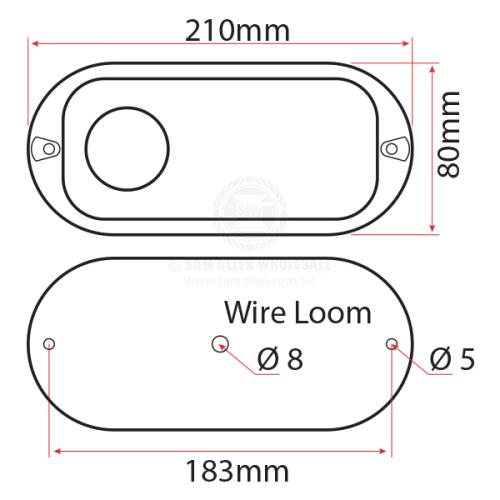

Length 210 mm
Width 80 mm
Height 30 mm
LED Colour Blue
Frame Colour Black
Lumens 2700 lm
Voltage 12V
Current Draw 2A
Power 20W
LED Type 1 × 20W COB LED
Beam Output 60° primary spot, 120° diffused
Construction Sealed epoxy resin, PA body, tempered glass lens
Protection Rating IP68
Cable Length 2 m pre‑wired
Unit Qty 1


✨ Key Features

  • Sealed watertight construction ideal for underwater lighting and trim tab installations

  • Dual‑pattern output:

  1. 60° focused beam from mounting surface
  2. 120° wide diffused illumination
  • High‑intensity 20W COB LED for maximum brightness
  • Durable PA housing with tempered glass lens
  • IP68‑rated for continuous underwater operation
  • Includes mounting hardware and installation diagram
  • 2 m pre‑wired cord for easy setup

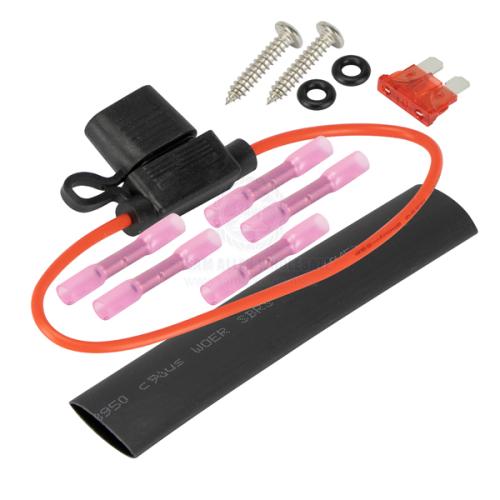

📦 Kit Contents (Varies by B‑Series Model)

Each kit includes:

  • B‑Series Underwater Light
  • Stainless steel mounting hardware
  • Rubber washers
  • Fuse holder
  • Butt splice terminals

Quantities vary depending on the specific B‑Series model.


⚠ Important Notes

  • Designed for underwater use only — the light relies on water for cooling
  • For RGB models in the B‑Series:
  • Rapidly toggle the on/off switch to cycle through 11 preset RGB modes
  • To reset to default, turn off for 3–6 seconds, then turn back on
  • Refer to the instruction manual for full mode details
