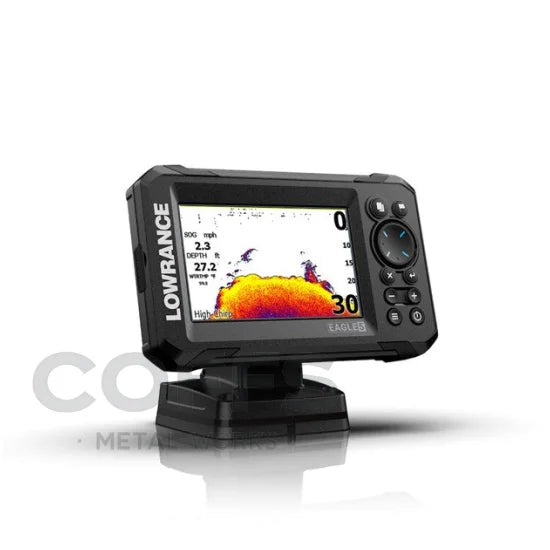

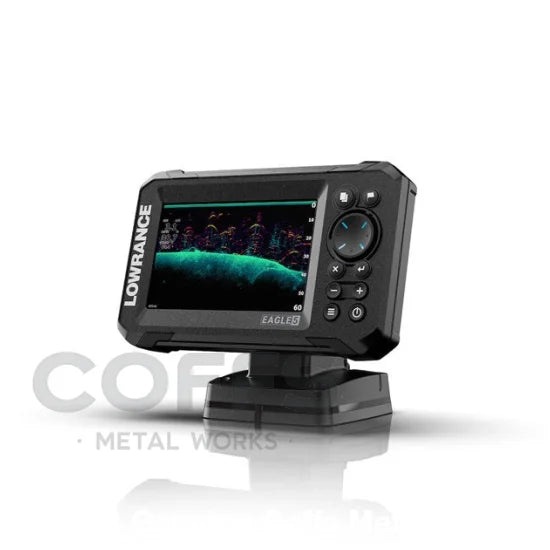

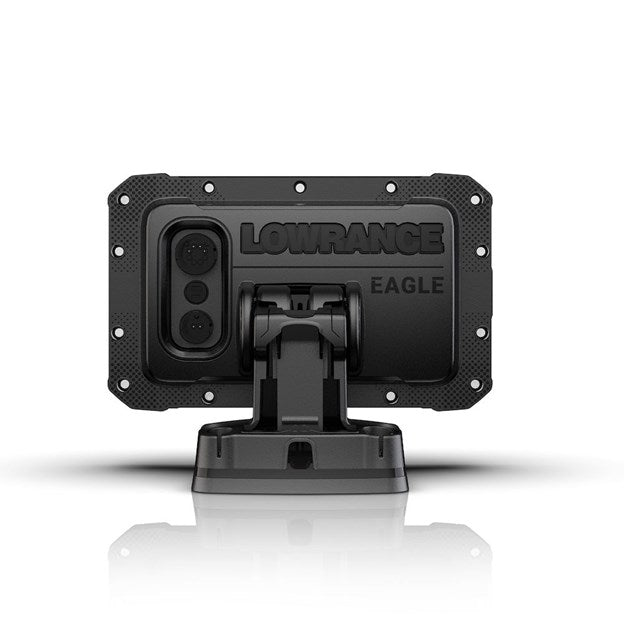

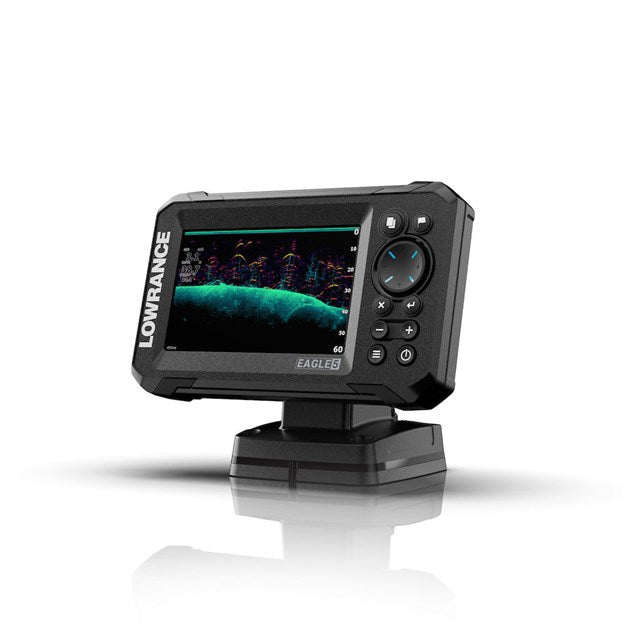

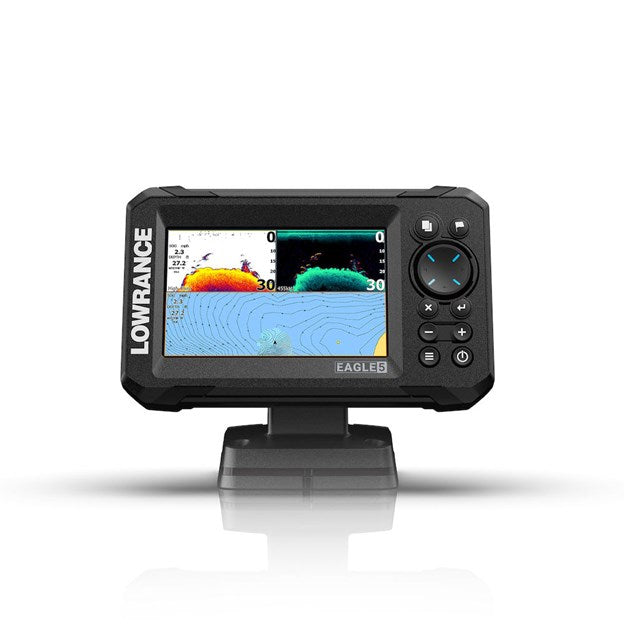

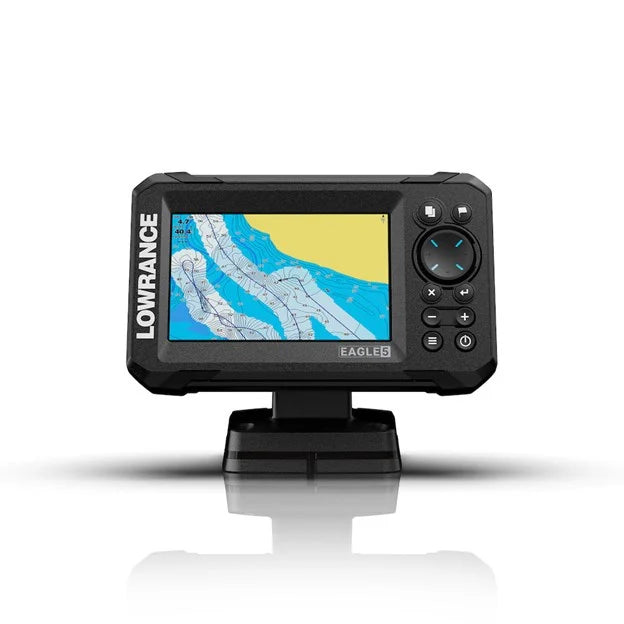

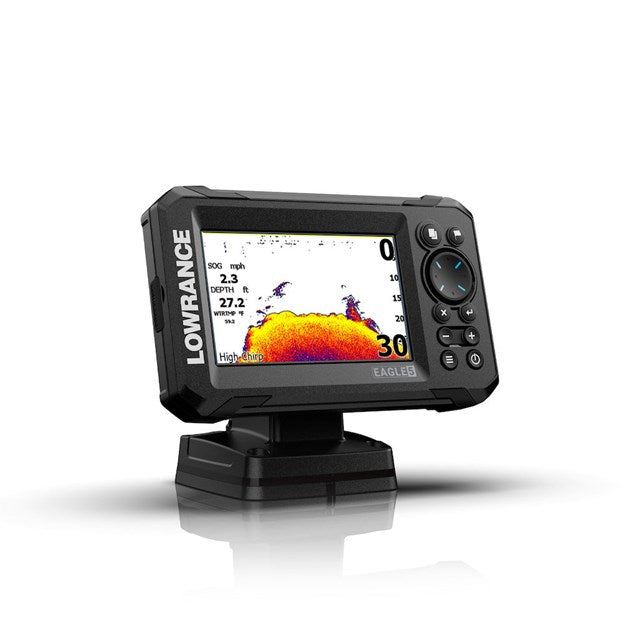

Eagle 5 with SplitShot™ HD Transducer and AUS/NZ Enhanced Embedded Charts
Eagle 5 with SplitShot™ HD Transducer and AUS/NZ Enhanced Embedded Charts
Regular price
$700.00 AUD
Regular price
Sale price
$700.00 AUD
Quantity
Couldn't load pickup availability
Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed SplitShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. This model comes pre-loaded with a worldwide basemap chart, and the option to upgrade to CMAP® DISCOVER™.
Specifications
Display
Backlight ColorPure white LED
Display Resolution800 x 480
Display Size5 inches
Screen Brightness1000 NITS
Viewing Angles80° top/bottom, 80° left/right
Connectivity
SD Card Storage1 slot (microSD® 32 GB maximum)
Cartography
Charts supportedC-MAP® DISCOVER™.
Electrical
Power Consumption max280 mA @ 12 V DC with backlight on full
Power Consumption min190 mA @ 12 V DC with backlight off
Power Consumption typical280 mA @ 12 V DC with backlight on full
Recommended Fuse Rating3A
Supply Voltage12v DC (10.8-17VDC)
Environment
Humidity60°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
WaterproofratingIPX7 with card door closed
