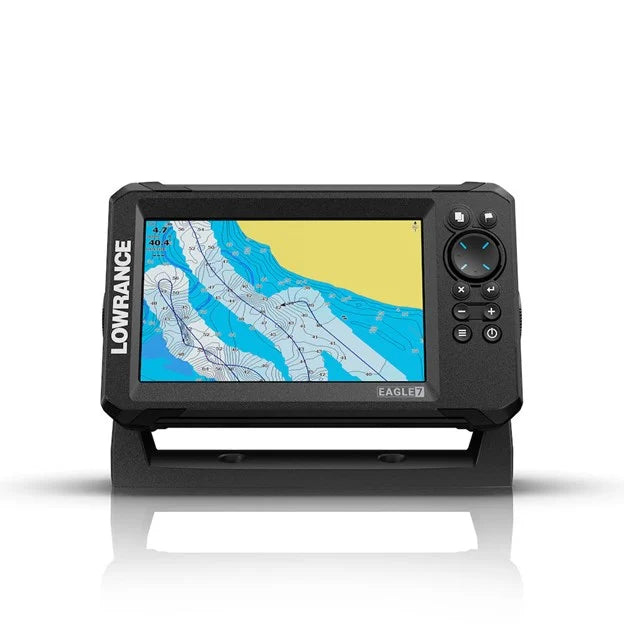

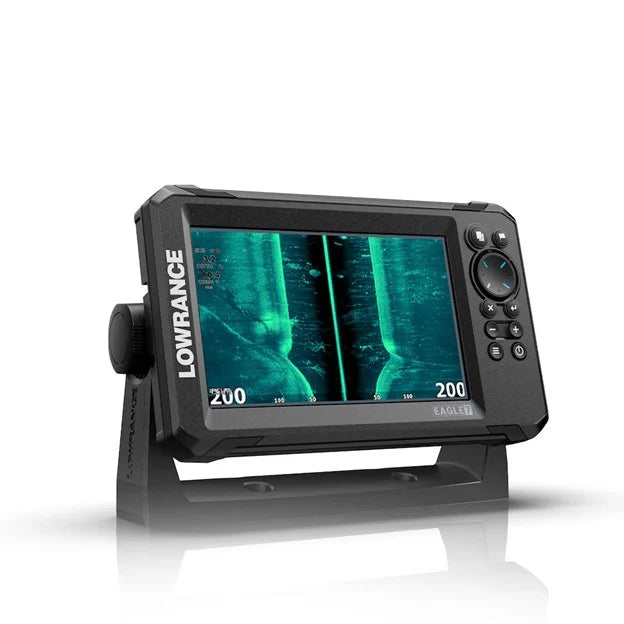

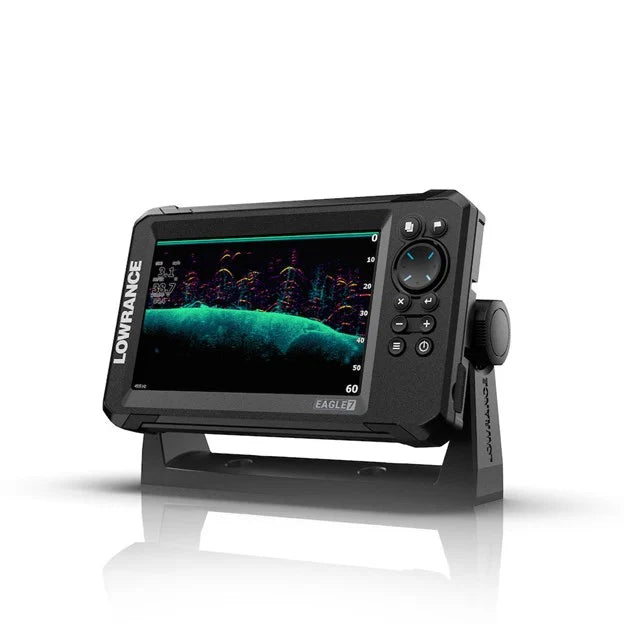

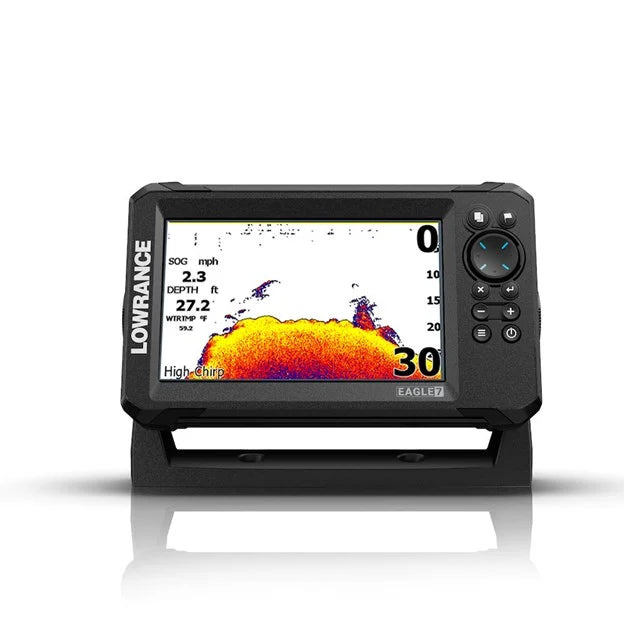

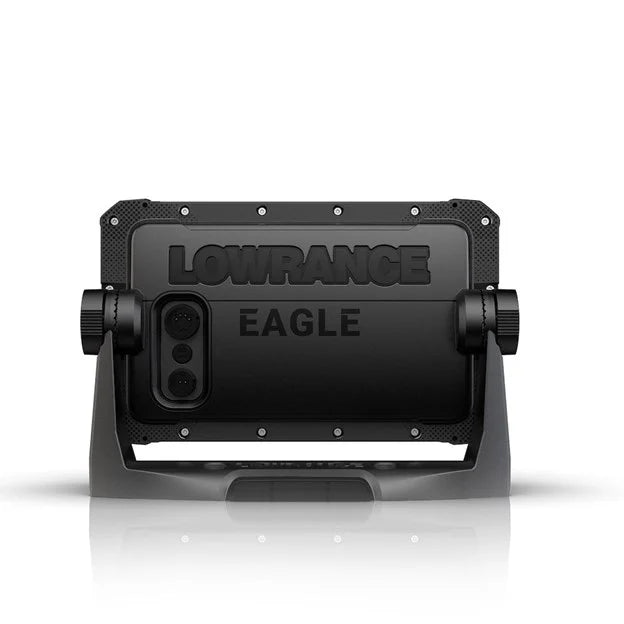

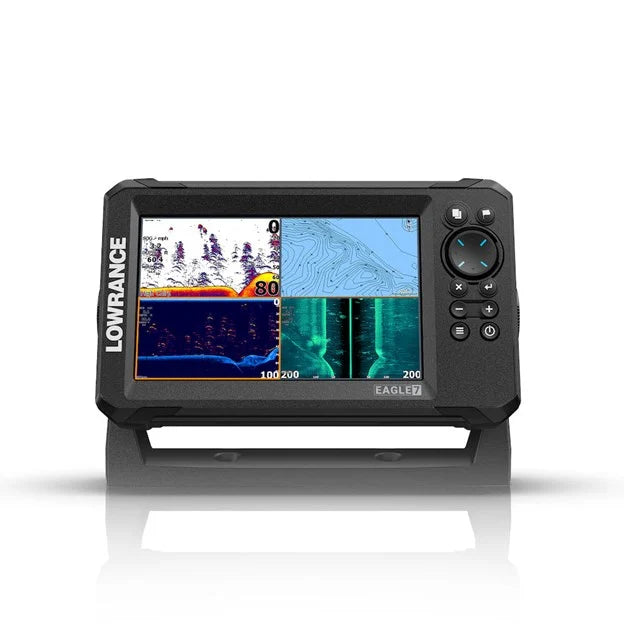

Eagle 7 with TripleShot™ HD Transducer and AUS/NZ Enhanced Embedded Charts
SKU: 000-16122-001
Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed TripleShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. This model comes pre-loaded with a worldwide basemap chart, and the option to upgrade to CMAP® DISCOVER™.
Specifications
Display
Backlight ColorPure white LED
Display Resolution800 x 480
Display Size7 inches
Screen Brightness1000 NITS
Viewing Angles80° top/bottom, 80° left/right
Connectivity
SD Card Storage1 slot (microSD® 32 GB maximum)
Cartography
Charts supportedC-MAP® DISCOVER™.
Electrical
Power Consumption max550 mA @ 12 V DC with backlight on full
Power Consumption min250 mA @ 12 V DC with backlight off
Power Consumption typical550 mA @ 12 V DC with backlight on full
Recommended Fuse Rating3A
Supply Voltage12v DC (10.8-17VDC)
Environment
Humidity60°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
WaterproofratingIPX7 with card door closed
GPS
CorrectionSBAS
Time to First Fix45s
MFD
Cartography includedC-MAP Embedded Charts for New Zealand & Australia Inland and Coastal
Waypoints, Routes, Tracks3000 Waypoints 100 Routes 100 Trails
Physical
Compass Safe12" (300mm)
Dimensions W x H x D225.9 mm (8.89") x 139.8 mm (5.5") x 88.5 (3.48)
Mounting TypeGimbal bracket or dash mount
Weight0.67 kg (1.48 lb)
Other
InterfaceKeypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
Warranty Period1 Year + 4 additional years of upgrade options totaling 5 years
