TMC DECK WASHDOWN KIT – PART NO. 239311E

The TMC 239311E Deck Washdown Kit is a complete, high‑performance system designed for serious boat owners who want reliable washdown pressure, clean plumbing, and dependable components built for marine conditions. Coffs Metal Works supplies and installs this full kit, ensuring every part is fitted correctly and integrated into your boat’s layout.

This kit combines a powerful washdown pump, a dual‑port livewell pump, quality hoses, fittings, valves, and pickup hardware—everything needed for a professional‑grade washdown and water‑supply system.

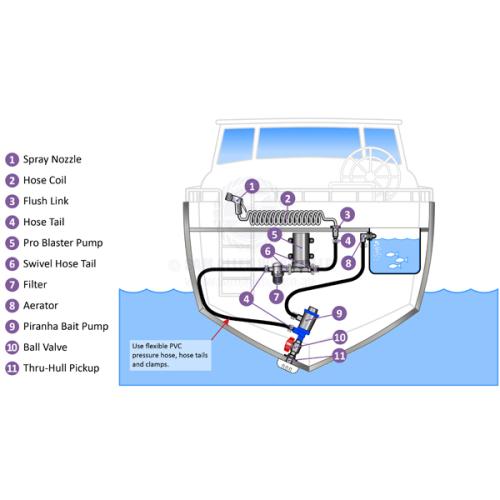

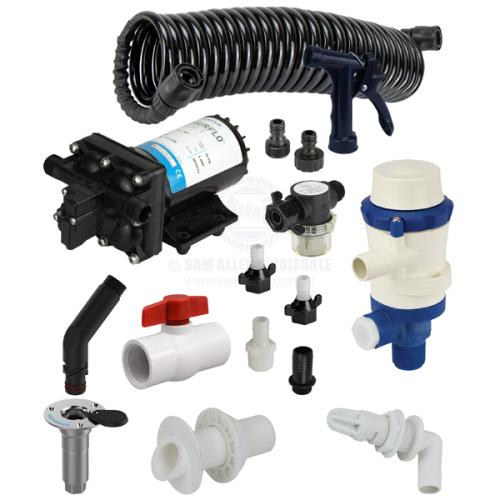

Kit 239311E – Full Component Breakdown

• 1 x 239428 Pro Blaster II Washdown Pump – 12V – 13.2 LPM – 45 PSI (5) A strong, high‑pressure pump ideal for blasting away bait, blood, sand, and salt. Delivers consistent pressure and flow for fast deck cleaning.

• 1 x 23035 Piranha Livewell Pump – Dual Port – 12V – 600 GPH (9) A dual‑port pump that supplies both the livewell and the washdown system. Efficient, reliable, and designed for continuous marine use.

• 1 x 23740 Nozzle & 3/4" BSP Tails (1) Durable spray nozzle with matching tails for secure hose connection and adjustable spray control.

• Deck Wash Hose – Black – 7.5m x 3/8" I.D. – Snap‑On (2) A flexible, marine‑grade hose with snap‑on fittings for quick use and easy storage.

• 1 x 23886 Flush Link 130° – 1/2" BSPF x 3/4" BSPM – Stainless Steel (3) A stainless‑steel flush link for corrosion resistance and long‑term durability.

• 1 x 45361 Hose Tail – 1/2" BSPM x 15mm – Polypropylene (4) Lightweight, corrosion‑resistant hose tail for secure plumbing connections.

• 1 x 23974 Hose Tail – 1/2" NPTM x 1/2" I.D. – Nylon (4) Strong nylon tailpiece designed for tight, leak‑free hose attachment.

• 2 x 23963 Swivel Hose Tail – 1/2" NPTF x 1/2" I.D. – Nylon (6) Swivel fittings allow easier hose routing and prevent twisting or strain on plumbing.

• 1 x 23956 Water Strainer – Swivel Nut – 1/2" NPTF x 1/2" NPSM (7) Protects pumps from debris and ensures long service life. Easy to clean and maintain.

• 1 x 23036 Aerator Head – 90° x 3/4" I.D. – Nylon – White (8) Provides smooth water flow into the livewell with minimal splash and noise.

• 1 x 45181 Ball Valve – 3/4" BSPF – PVC (10) A durable shut‑off valve allowing full control of water flow and system isolation.

• 1 x 23040 Hi‑Speed Thru‑Hull Pickup – 3/4" BSPM – Nylon (11) Designed to maintain water supply at speed, ensuring pumps stay primed and functional.

Why This Kit Works Well for Boat Owners

• Complete washdown and livewell supply system in one package
• High‑pressure pump for fast deck cleaning
• Dual‑port pump simplifies plumbing and reduces clutter
• Marine‑grade components built for saltwater conditions
• Includes all fittings, tails, valves, and strainers needed for installation
• Compatible with aluminium and fibreglass boats


Coffs Metal Works Installation Advantage

Coffs Metal Works can install this kit with:

• Custom aluminium brackets
• Clean hose routing
• Waterproof wiring
• Proper pump mounting
• Integration with existing plumbing
• Optional upgrades like hose storage, extra outlets, or deck plates

The workshop’s access to all major brands means you can combine this kit with any additional accessories you prefer—without being locked into a single supplier.
