Name: The Elite Fishing System 10in
Brand: lowraance
Availability: InStock

The Elite Fishing System^®

The Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD* and preloaded C-MAP^® Enhanced Embedded charts – to help you make the most of your time on the water.

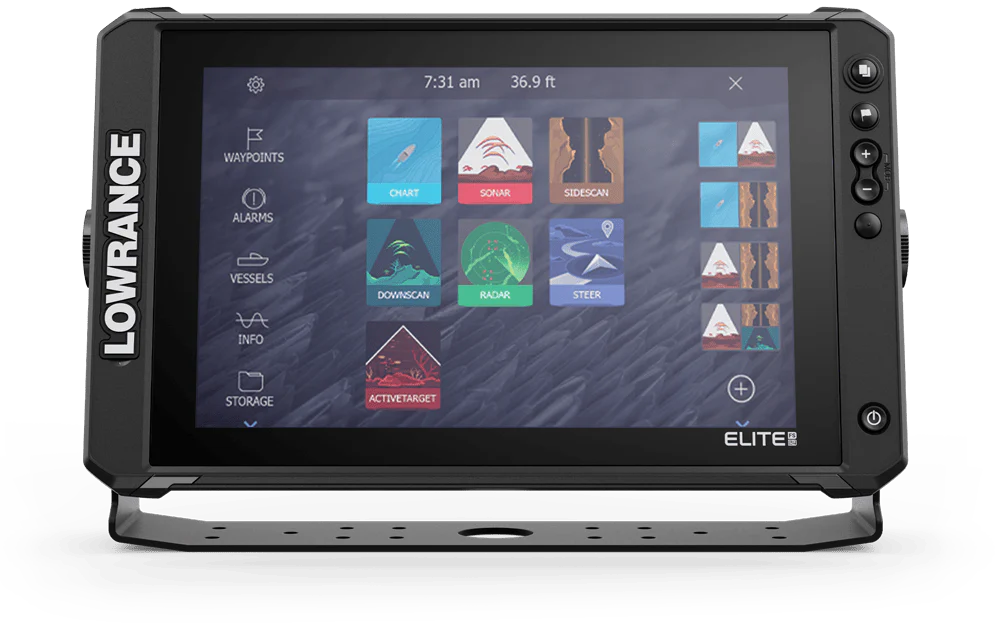

High resolution multi-touch screen

The best screen yet in our Elite Series, multi-touch with a flat glass screen and anti reflective coating gives great visibility in all light. A single user programmable key allows for quick selection of those vital and most used interactions.

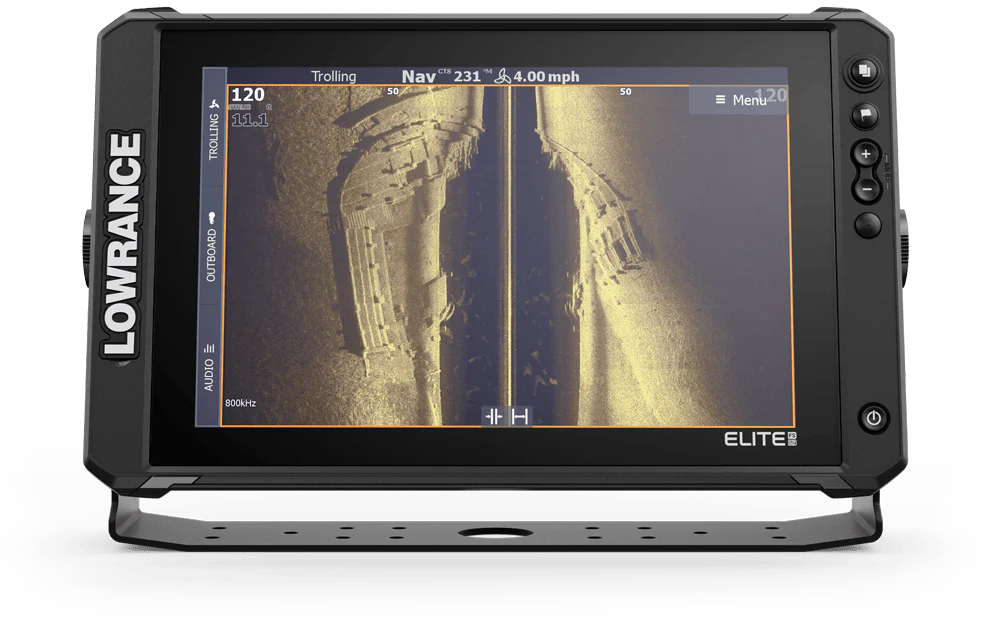

Active Imaging™ 3-in-1 & Active Imaging™ HD

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ and Active Imaging™ HD* sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.**

DownScan Imaging

DownScan Imaging™ makes it easier to identify how fish are relating to structure, providing photo-like images of rocks, trees, bottom composition and other underwater structure directly beneath the boat.

SideScan Imaging

Perfect for searching large areas for fish-holding structure, allowing you to cover more water in a shorter period of time, and view areas too shallow for your boat – like next to the shore or bank.

CHIRP Sonar

See ﬁsh, structure and the bottom with greater clarity with Lowrance CHIRP, which delivers the best views of individual ﬁsh targets.


Display	Screen size 7" IPS Resolution 800x480 Brightness >1200 nits	Touchscreen Multitouch Keypad Pages, waypoint, zoom, power, (1) user programmable quick access keys Viewing angles in degrees 50° top 60° bottom 70° left/right
Sonar	Sonar compatibility Integrated: CHIRP, Broadband, Active Imaging™ HD DownScan, Active Imaging™ HD SideScan, Active Imaging™ DownScan, Active Imaging™ SideScan *requires S3100 module Compatible with: ActiveTarget® 2, ActiveTarget®, S3100, SonarHub®, StructureScan®, StructureScan®HD, StructureScan®3D, LiveSight (requires PSI-1 module)	Sonar frequencies CHIRP High CHIRP Medium CHIRP Low CHIRP (depending on transducer) Broadband 50 kHz 83 kHz 200 kHz (depending on Broadband transducer) Active Imaging 800 kHz 455 kHz Active Imaging HD (Via additional S3100 module) DownScan: 700 kHz CHIRP 1200 kHz CHIRP SideScan: 455 kHz CHIRP 1075 kHz CHIRP

Multifunction Support	AIS AIS chart overlay. Target vessel details. Autopilot Outboard Pilot Ghost® Trolling Motor Recon™ Trolling Motor MotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway) Cartography included AUS/NZ Enhanced Basemap Cartography supported C-MAP® REVEAL™ C-MAP® DISCOVER™ C-MAP® Genesis Navionics (Gold, NAV+ Platinum+) Lowrance Regional Mapping Partners GPS 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS	Multimedia SonicHub SonicHub2 FusionLink products Any NMEA 2000 compliant marine audio products Weather SiriusXM via WM-4 (USA only) Compass safe distance 12" (300mm) Waypoints, routes, tracks 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail

Interface and Connectivity	NMEA 2000® 1x Micro-C Ethernet 1 x 100Mbit Card reader 1 micro SD card up to 32GB	Wi-Fi® Internal 802.11b/g/n Bluetooth® Bluetooth® 4.0 with support for Bluetooth® classic

Electrical	Supply voltage 12 V DC (10.8 - 17 V DC) Power consumption (Max) 2.0A @ 13VDC with backlight on full	Recommended fuse rating 3 A

Physical	Weight (display only) 0.90 kg (1.90 lbs)	Mounting type Gimbal Bracket or Dash Flush Mount

Environmental	Operating temperature range -15°C to 55°C (5°F to 131°F) Storage temperature -20°C to 60°C (4°F to 140°F) Waterproof rating IPX7 with card door closed	Humidity 60°C, 95% relative humidity (RH) for 18 hours Shock and vibration 100,000 cycles of 20 G

Warranty	Warranty period 2 Year + 3 additional years of upgrade options totaling 5 years
