10" 5 Stud Trailer Caravan Horse Float Electric Drum Brake & Coupling Kit.

10" ELECTRIC DRUM BRAKE & COUPLING KIT
AVAILABLE TO SUIT: FORD, HT, HQ, COMMODORE & 5 STUD LANDCRUISER
(6 STUD KITS AVAILABLE IN EBAY STORE)
Please note: this kit comes with no brake mounts

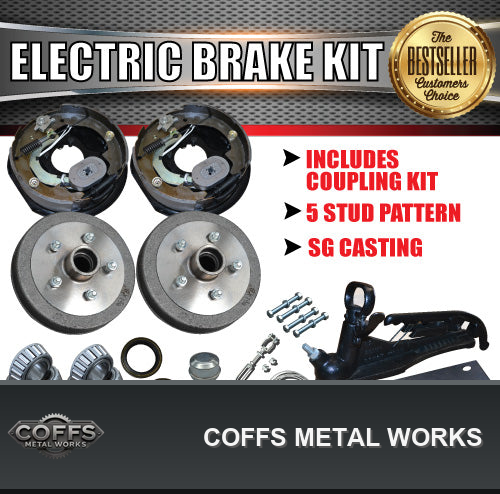

FULL KIT INCLUDES

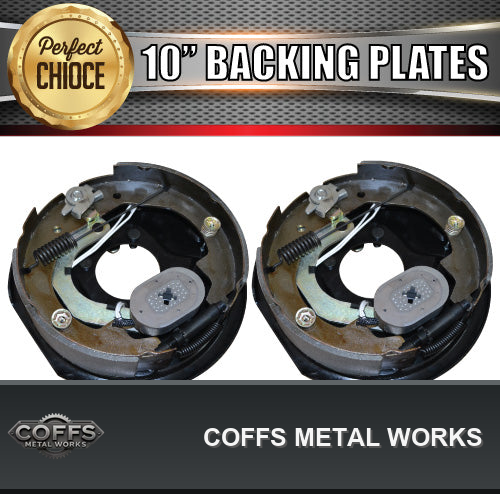

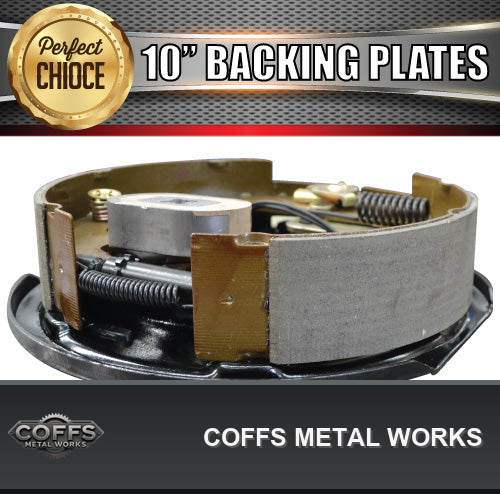

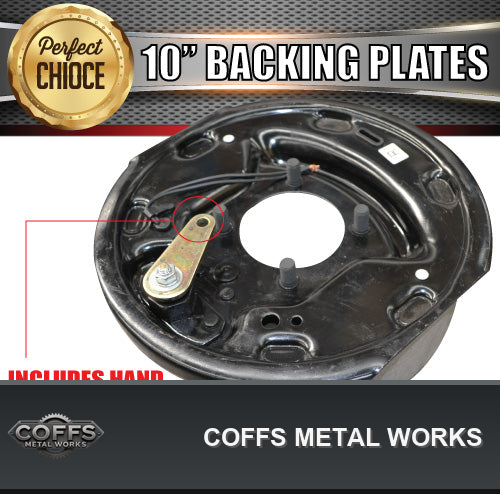

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

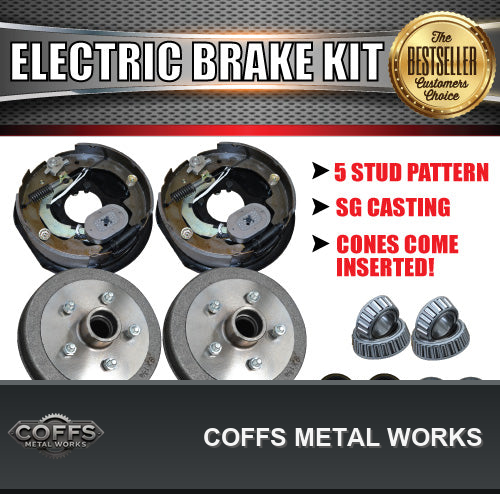

2X 10" HUB DRUMS (AVAILABLE PATTERNS TO SUIT 5 STUD FORD, 5 STUD COMMODORE, 5 STUD HQ HOLDEN, 5 STUD HT HOLDEN & 5 STUD LANDCRUISER)
S.G CASTING (MUCH STRONGER THEN GREY IRON)
drums come with cups already inserted.
2X BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

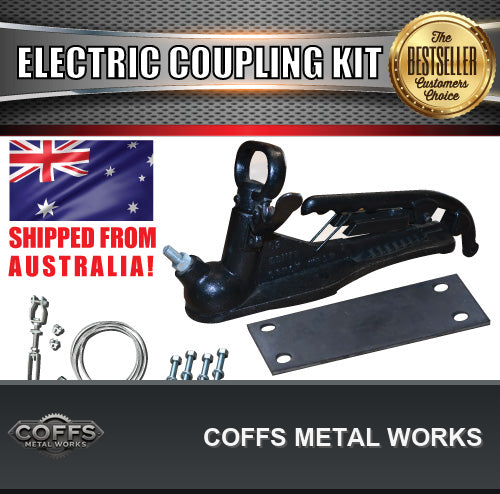

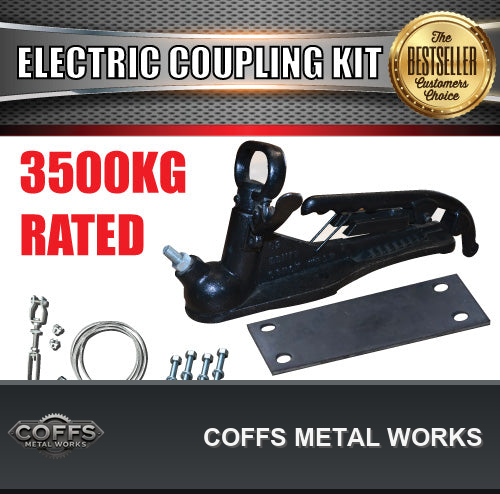

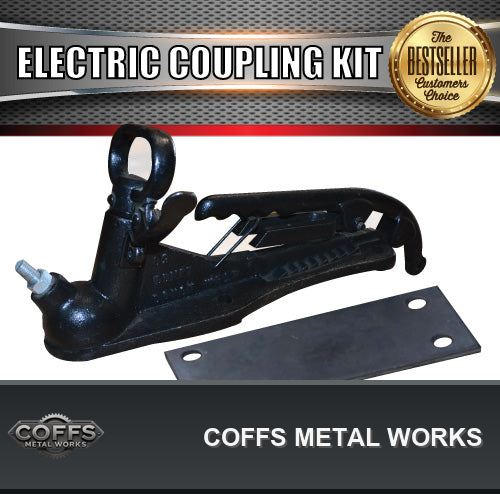

1X 3500KG ELECTRIC BALL COUPLING WITH HAND BRAKE LEVER
1X 8 METRE HAND BRAKE CABLE (LET US KNOW IF LONGER IS NEEDED)
1X CABLE ADJUSTER
1X 4 HOLE COUPLING WELD ON PLATE
2X CABLE CLAMPS
4X 12MM HIGH TENSILE BOLTS, NUTS AND WASHERS FOR COUPLINGS

INFORMATION REQUIRED
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49

STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches
