10" 5 Stud Trailer Caravan Marine Grade Hydraulic Disc Brake Kit With Japanese Koyo Bearings

10" TRAILER HYDRAULIC DISC BRAKE KIT
With Japanese Koyo Bearings

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $115 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$115 12" DISCS

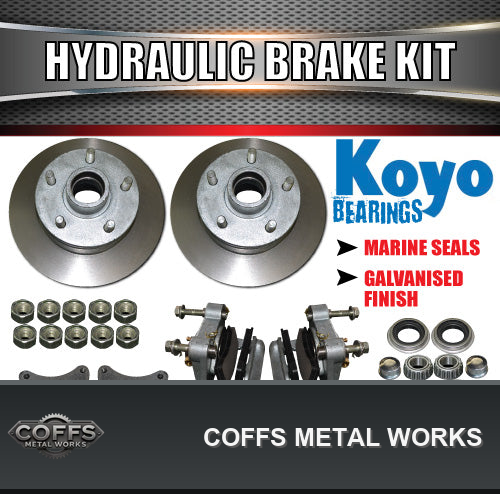

FULL KIT INCLUDES

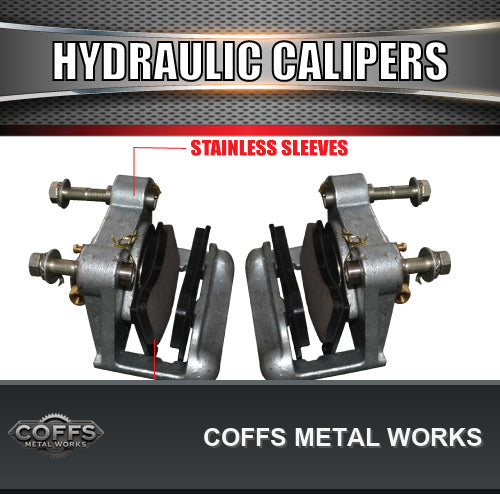

2X GALVANISED HYDRAULIC DISC BRAKE CALIPERS WITH STAINLESS STEEL PISTON. COMES WITH MOUNT BOLTS AND WASHERS
4X HYDRAULIC DISC BRAKE PADS

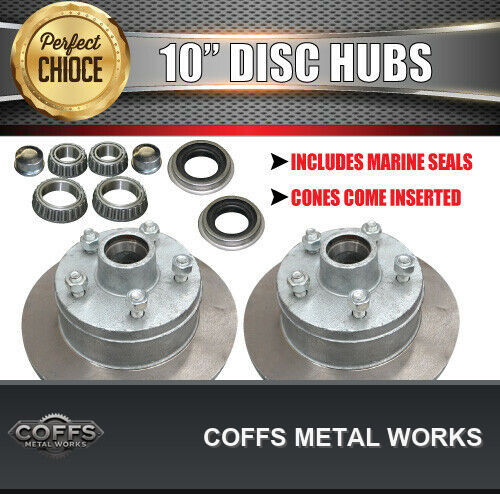

2 X GALVANISED DACROMET 10" HYDRAULIC DISC HUBS WITH CUPS INSERTED. COMES WITH WHEEL NUTS TO SUIT STUD PATTERN PROVIDED
2X NATURAL FINISH MOUNTING PLATES (suit 39mm round, 45mm square, 45mm round or 45mm square)
2 X COMPLETE JAPANESE KOYO BEARING KITS. HOLDEN OR FORD SIZE INCLUDING MARINE SEALS AND DUST CAPS

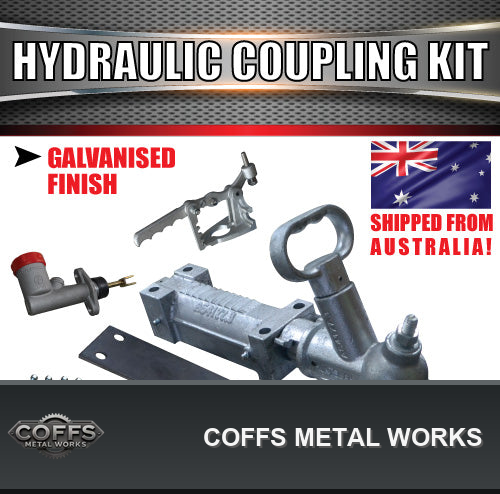

upgrade to the easy instillation hydraulic line setup.
12ft set up Item number: 180995030571 $105
16ft set up Item number: 171178278490 $115

INFORMATION REQUIRED
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
WIDTH OF AXLE: 39MM ROUND, 40MM SQUARE, 45MM ROUND OR 45MM SQUARE (45mm mounts can be used for 50mm axles)

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERNS:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

6 STUD LANDCRUISER
PCD: 6/139.7
Stud Thickness: 1/2"

5 Stud Landcruiser
PCD: 5/150
Stud Thickness: 9/16"

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
