10.9" Dacromet Ventilated Hydraulic Disc Brake Kit
Dacromet finish
Ford, Commodore or HT Holden Pattern

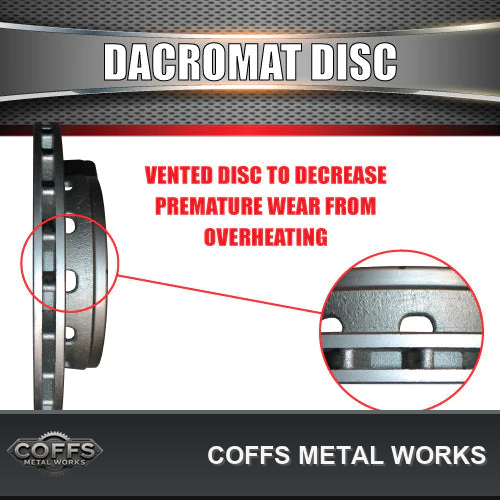

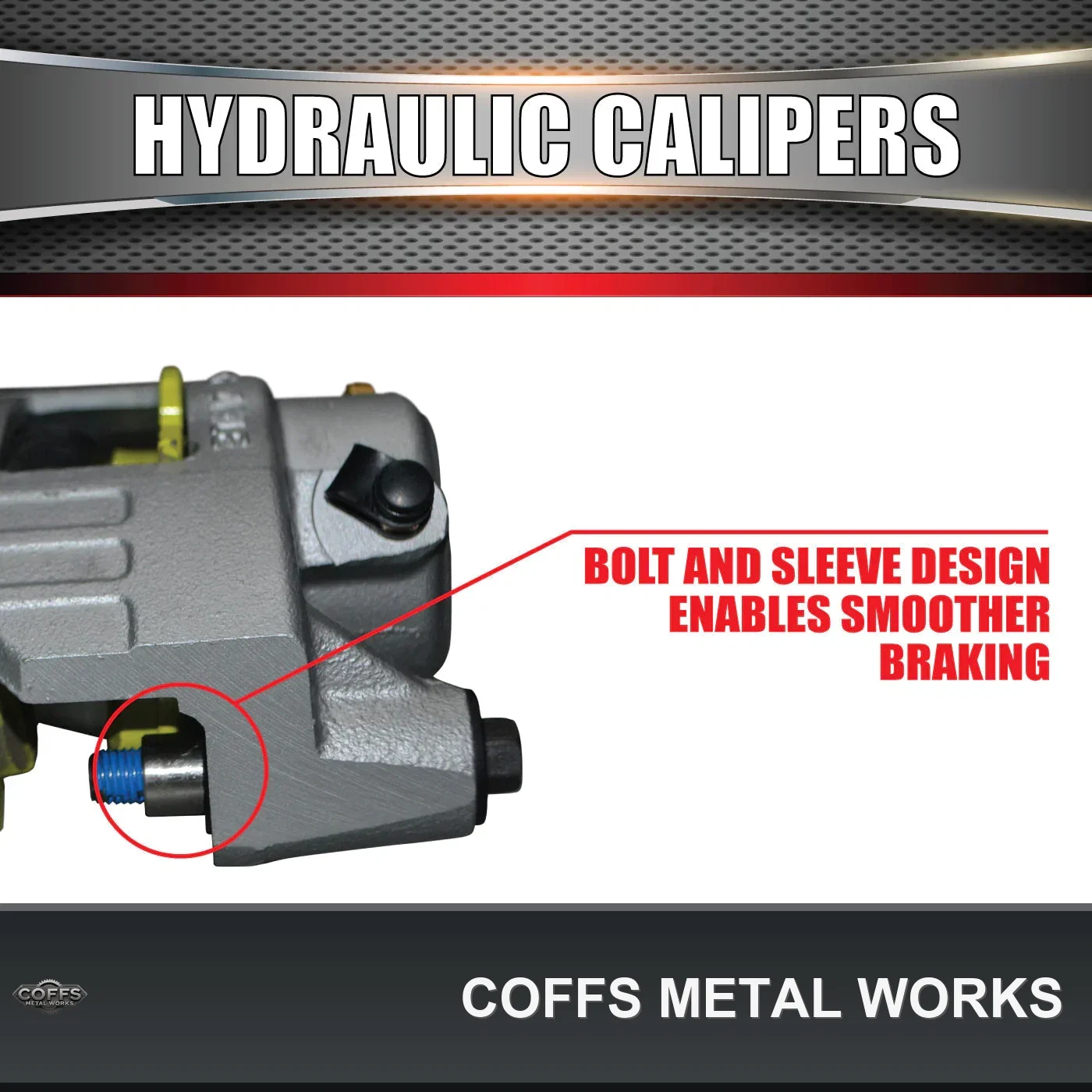

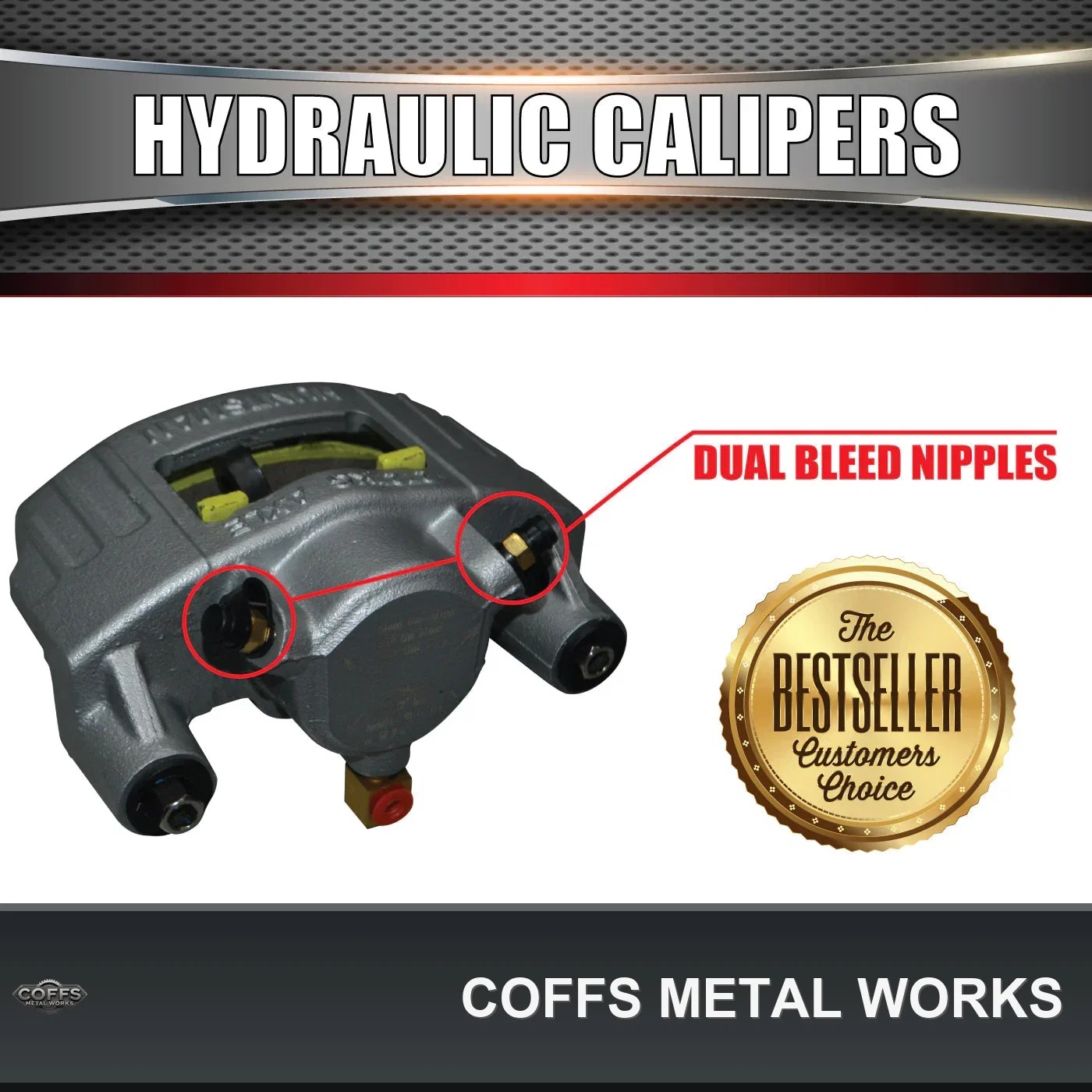

This Coffs Metal Works ventilated hydraulic disc brake kit is much more superior to any standard trailer or RV brake kit. The ventilated disc will allow the caliper to breathe and work at full capacity with better cooling . The ventilation disc will also allow any mud or water to easily release from the brake setup. With the caliper having dual bleed nipples it will allow more options for caliper position. The caliper also has a bolt and sleeve design.

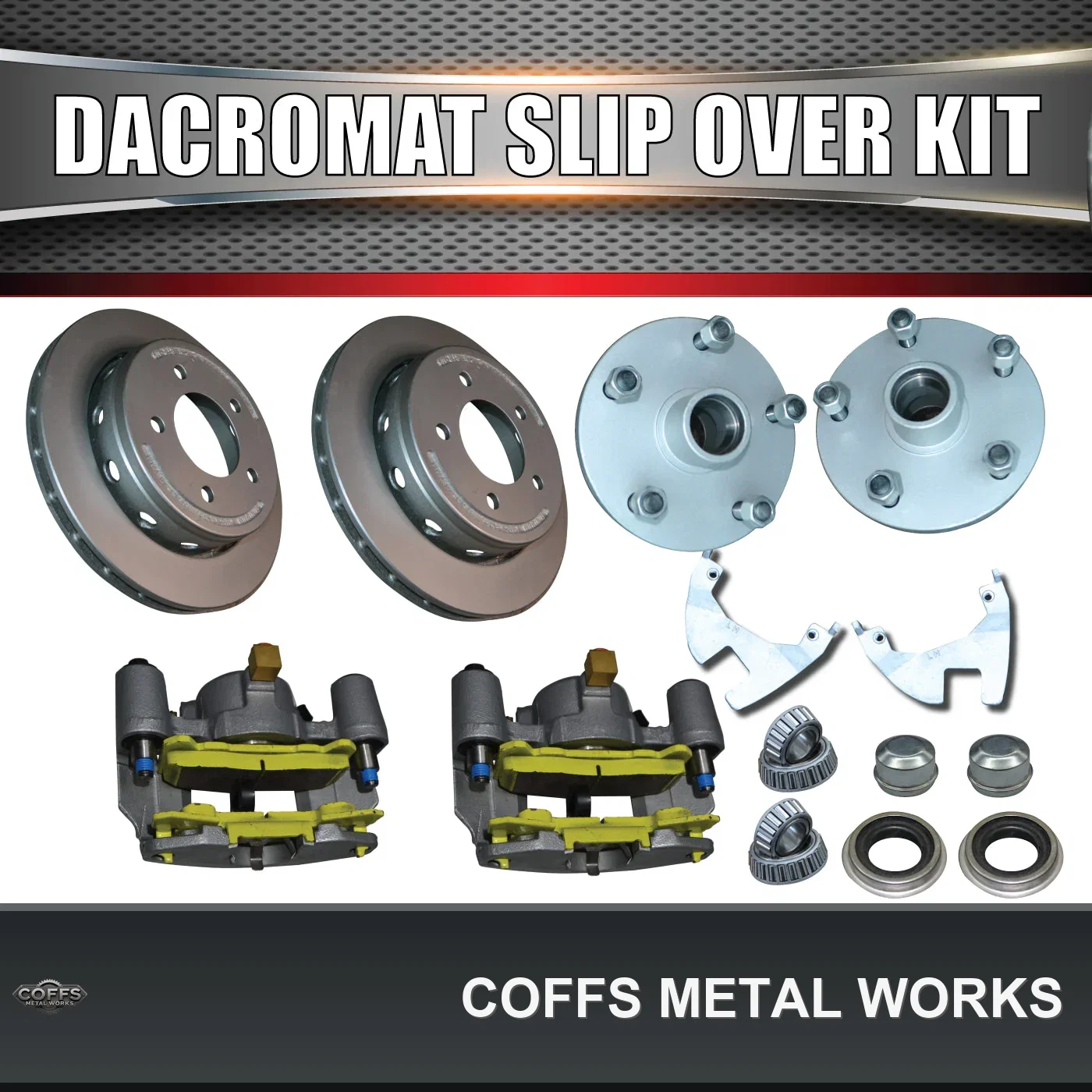

FULL KIT INCLUDES

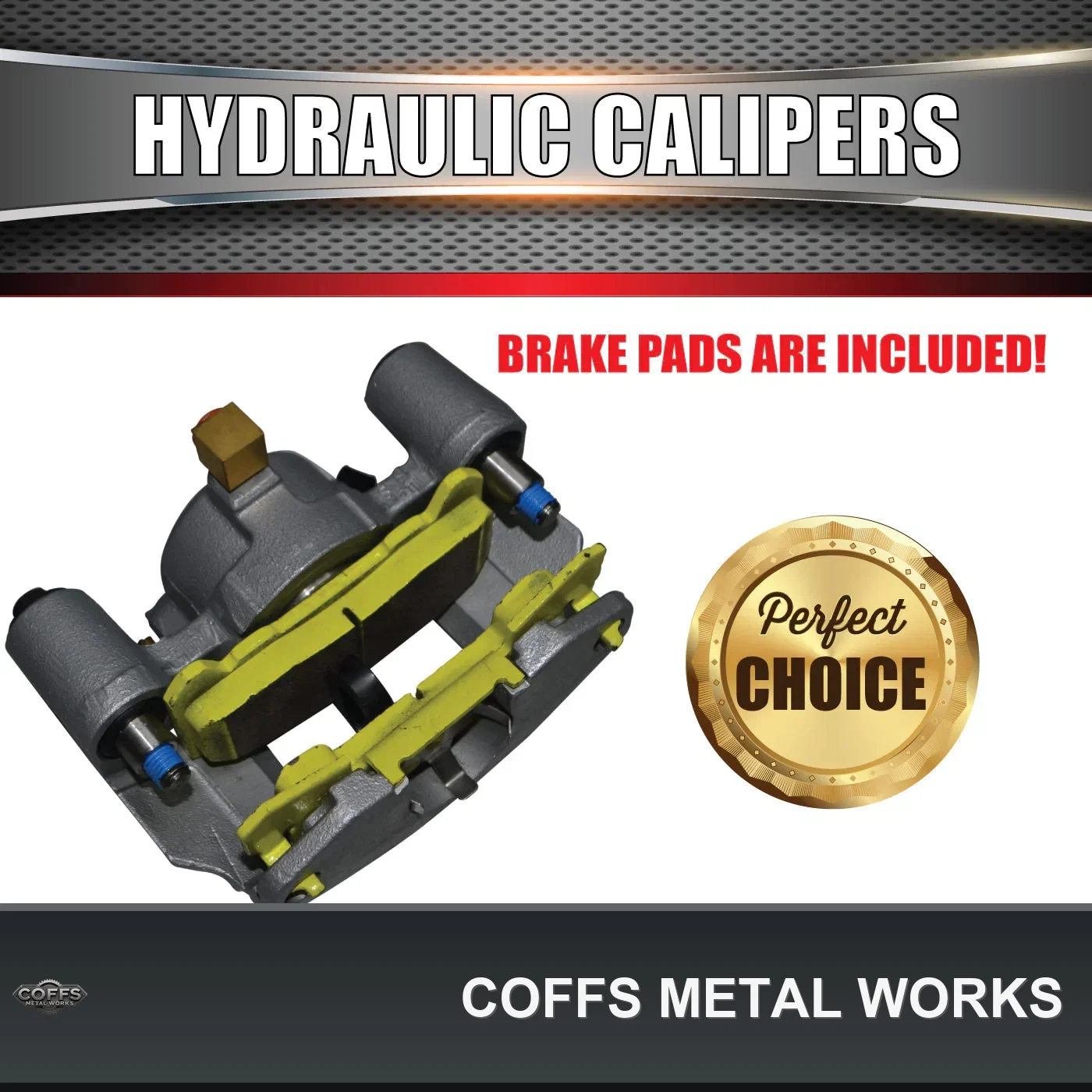

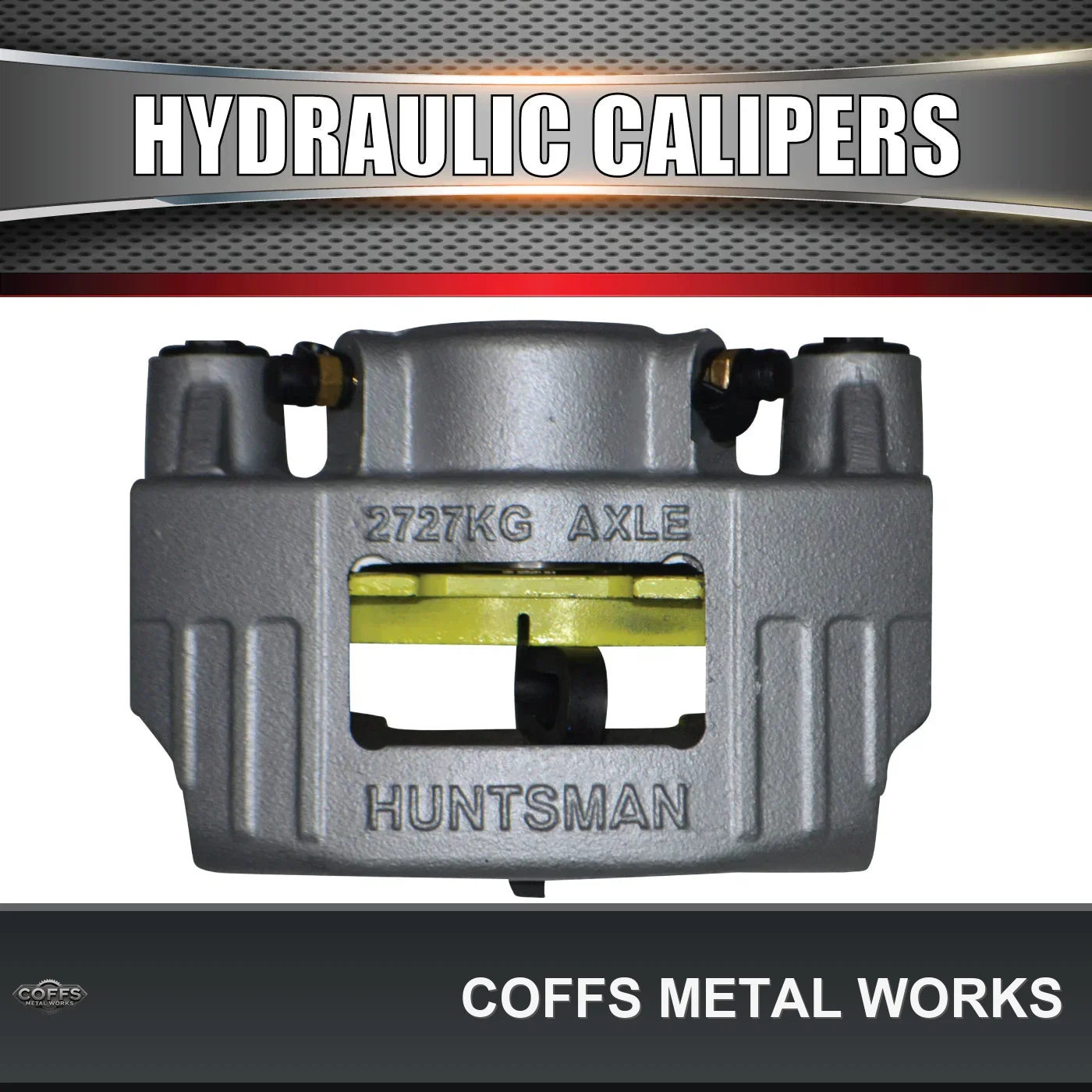

2X DACROMET STEEL DISC BRAKE CALIPER 2727KG MAX WITH BRAKE PADS

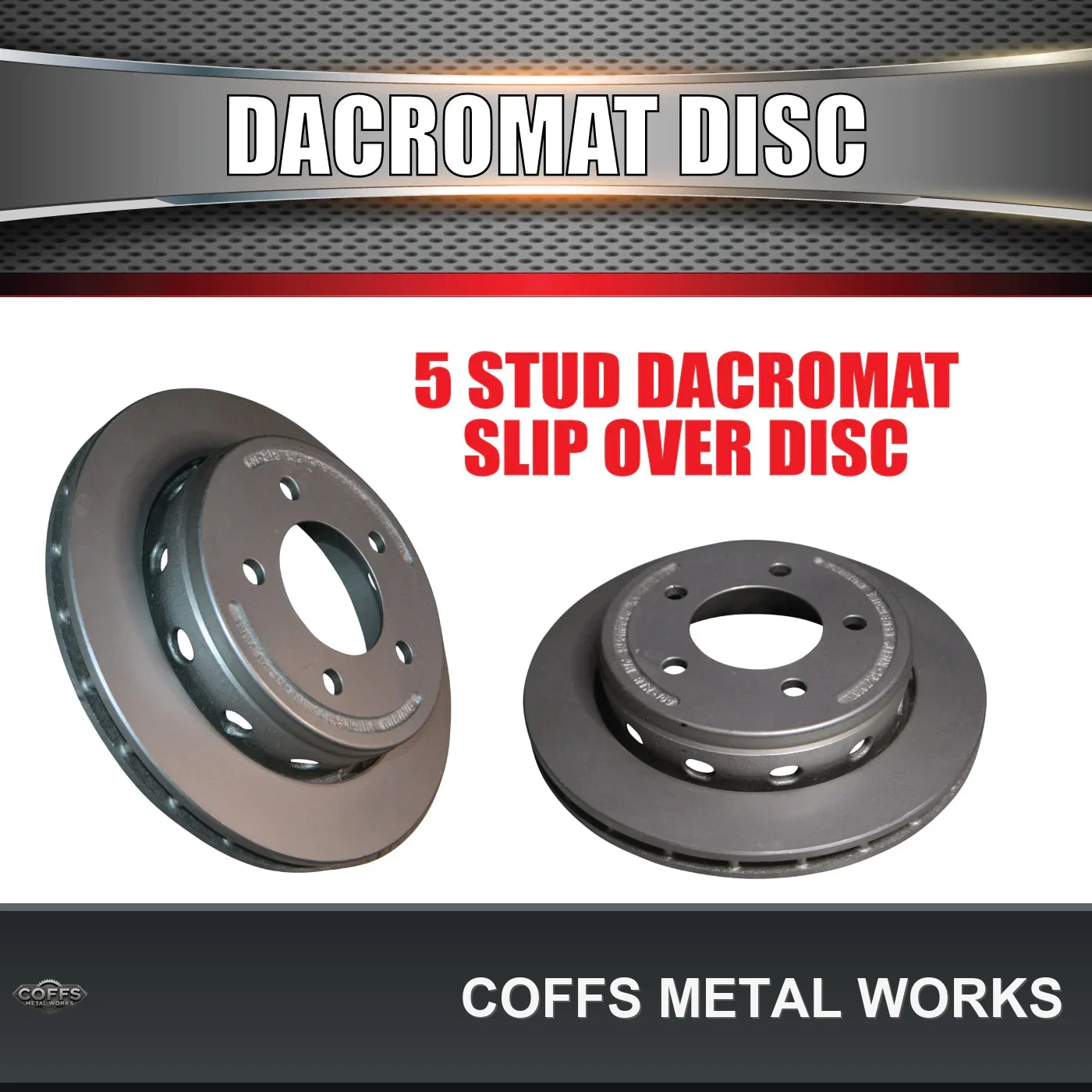

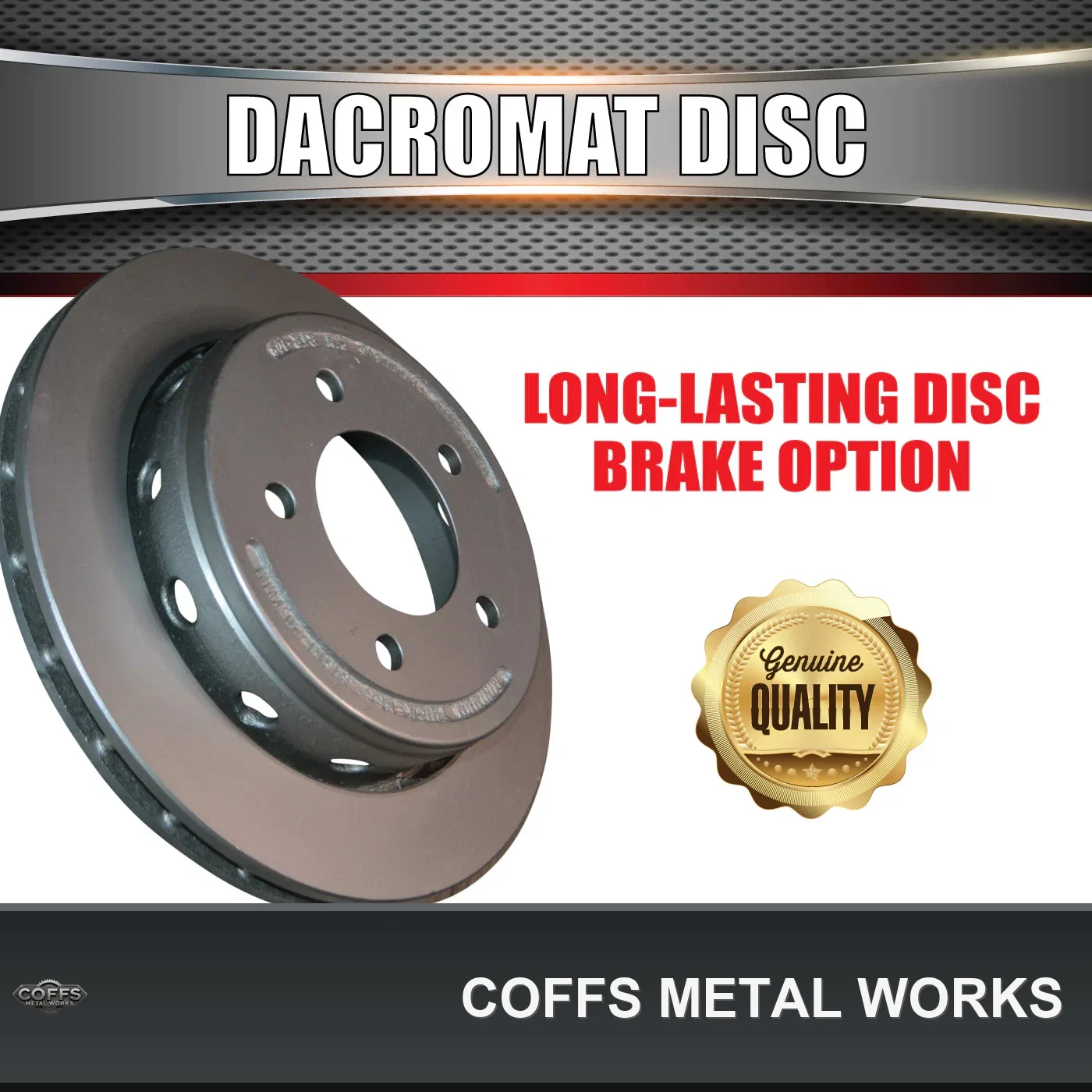

2X STEEL VENTILATED 10.9"SLIP OVER ROTOR 5 LUG DISCS
2X SLIP OVER DISC MOUNTS (AVAILABLE 40MM & 45MM SQUARE. CAN BE TRIMMED FOR 50MM)

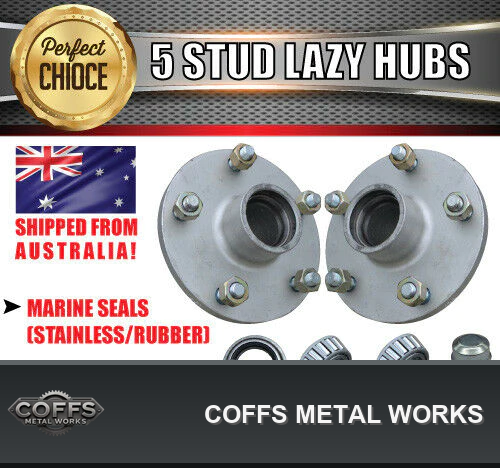

2X DACROMET LAZY HUBS
2X COMPLETE BEARING KITS WITH STAINLESS STEEL MARINE SEALS
STUD PATTERNS & BEARING COMBINATIONS AVAILABLE
FORD 5/114.3 PCD - LM (67048 INNER & L11949 OUTER), SLIMLINE (L86149 INNER & L12749 OUTER)
FORD AMERICAN 5/114.3PCD (L68149 INNER & L44649 OUTER)
COMMODORE 5/120 PCD - LM (67048 INNER & L11949 OUTER), SLIMLINE (L86149 INNER & L12749 OUTER)
HT HOLDEN 5/108 PCD - LM (67048 INNER & L11949 OUTER), SLIMLINE (L86149 INNER & L12749 OUTER)

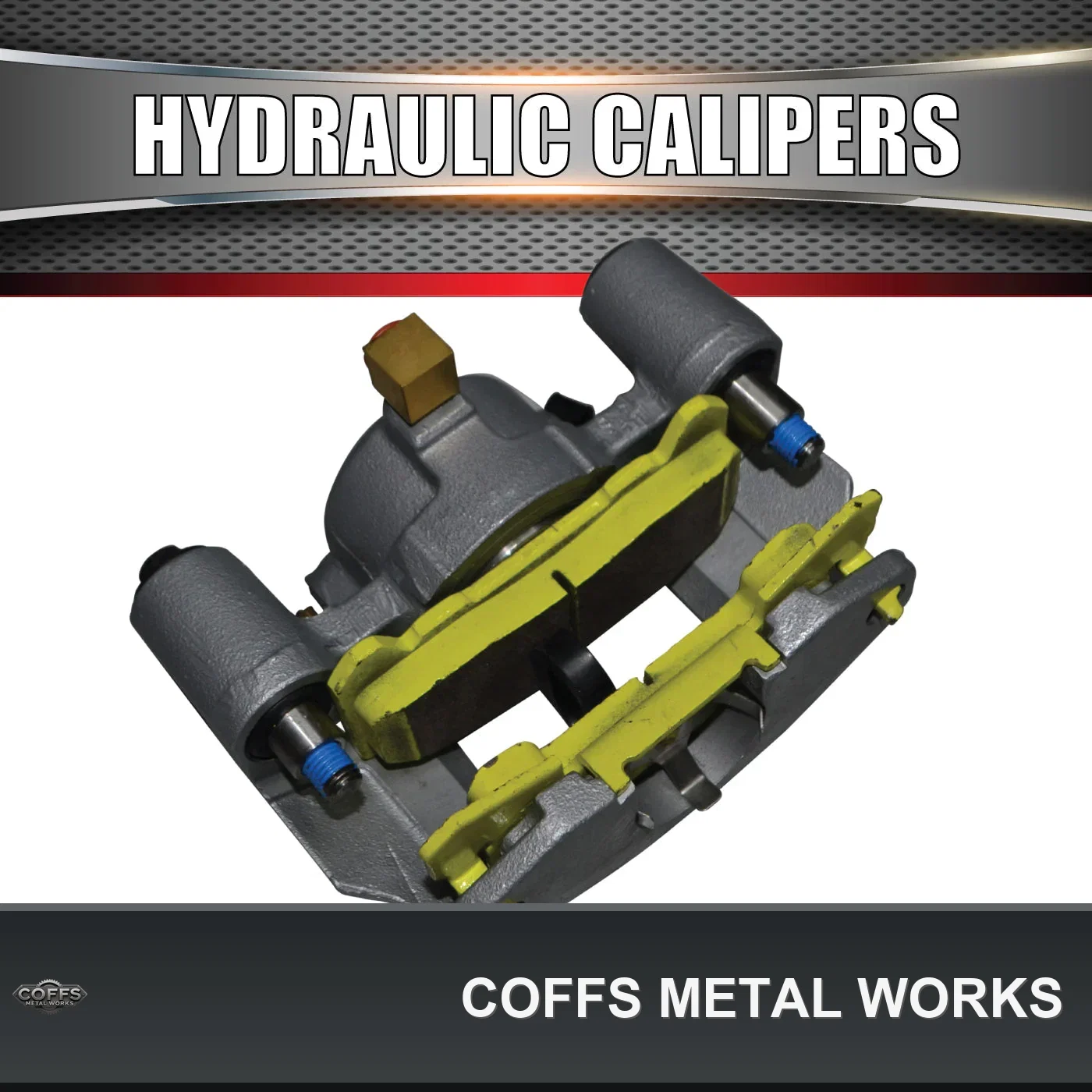

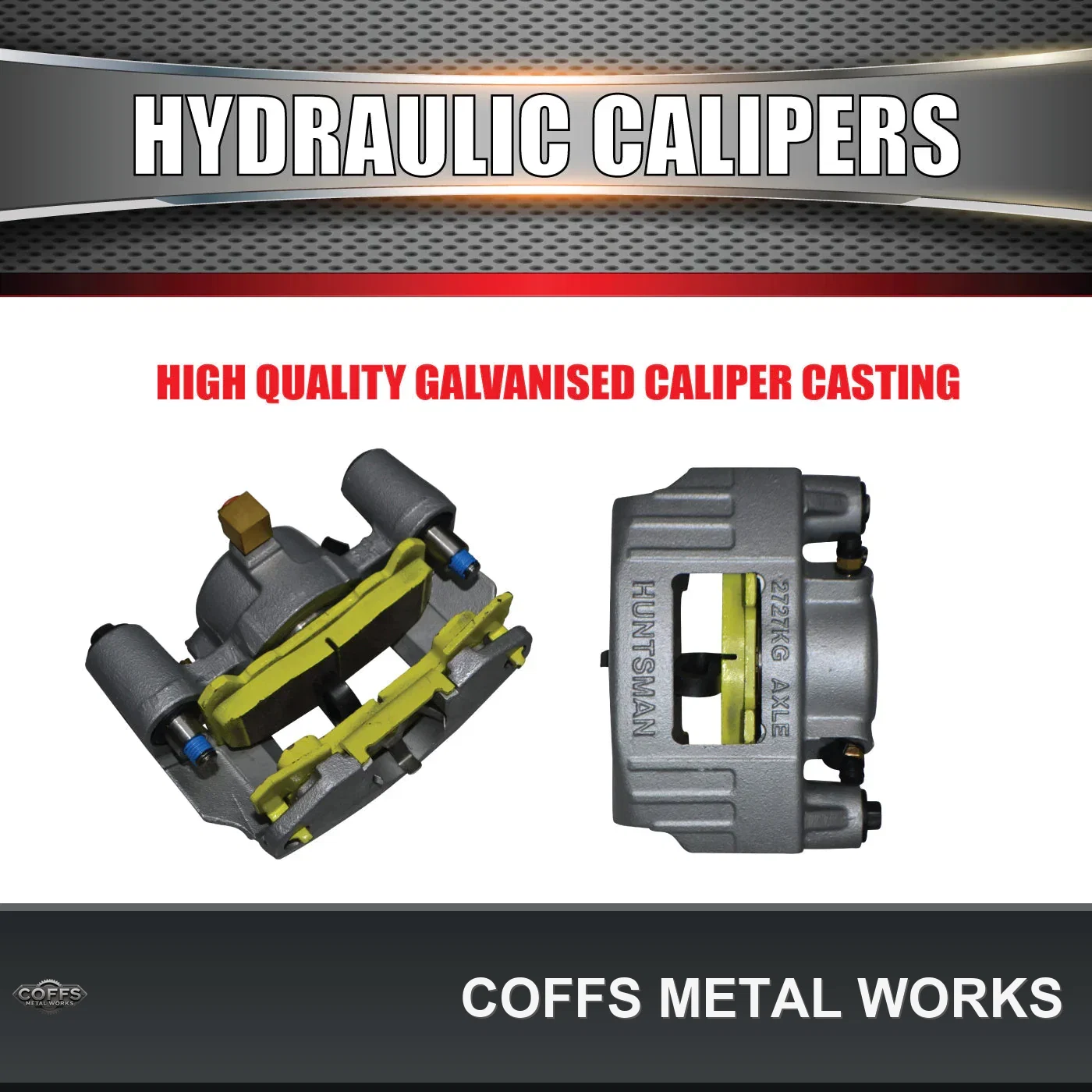

DACROMET CALIPERS
DUAL BLEEDER NIPPLES
CERAMIC BACKING PLATES
STAINLESS STEEL BOLT PINS
STAINLESS STEEL SLEEVES
HOLE CENTRES: 147MM
USED ON 10", 11" AND 12" DISCS
SUIT APPROX 23MM THICK DISCS
VENTILATED DISCS
DACROMET FINISH
PCD: 5/108, 5/120 OR 5/114.3
DISC THICKNESS: 23.6mm
These will replace Kodiak and Deemaxx brand
DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
