10" Parallel Bearing Trailer Electric Drum Brake Kit + 50mm Stub Axle & Electric Mounts Welded

10" ELECTRIC PARALLEL DRUM BRAKE KIT
WITH 50MM SOLID STUB AXLES RATED AT 1600KG
PARALLEL DRUMS AND BEARINGS ALLOW FOR A LARGER LOAD RATING THEN SLIMLINE (FORD) SIZE DRUMS AND BEARINGS


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS) MINIMUM 76MM CENTRE BORE ON RIM REQUIRED
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) MINIMUM 95MM CENTRE BORE ON RIM REQUIRED
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) MINIMUM 108MM CENTRE BORE ON RIM REQUIRED

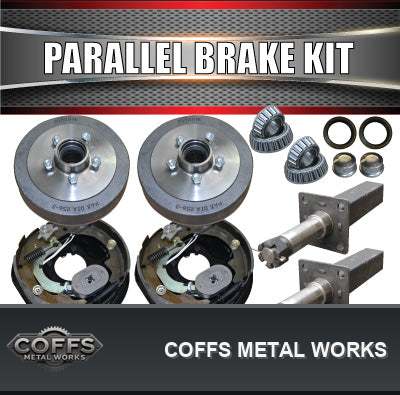

FULL KIT INCLUDES

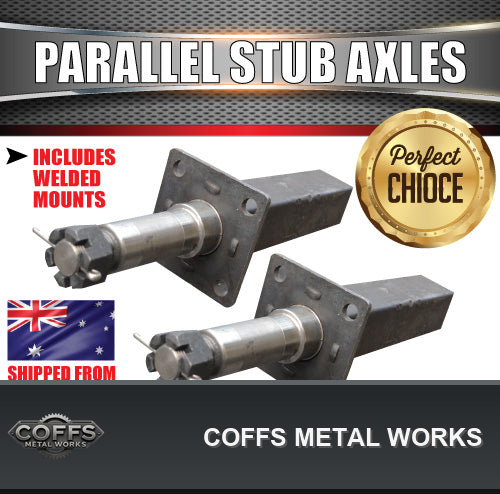

2X 50MM SOLID STUB AXLES (380MM OVERALL LENGTH) WITH ELECTRIC BRAKE MOUNTS ALREADY WELDED. ALSO COMES WITH WASHER SPLIT PIN AND AXLE NUT

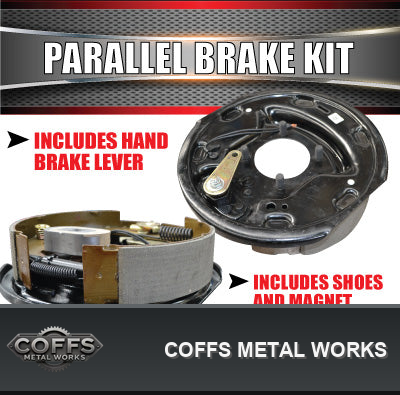

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

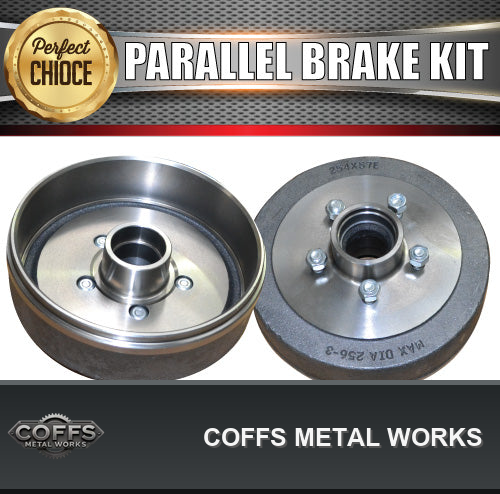

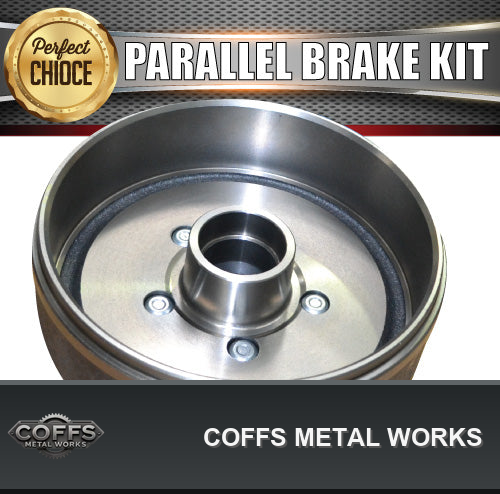

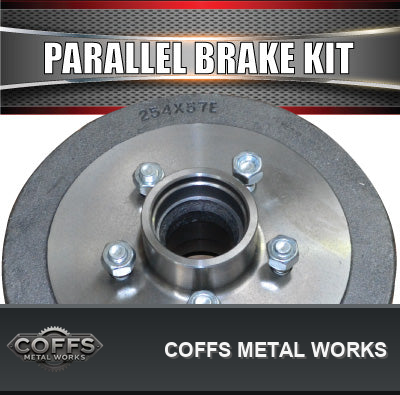

2X 10" PARALLEL HUB DRUMS (AVAILABLE IN 6 STUD, 5 STUD 100 SERIES LANDCRUISER, 5 STUD FORD)
drums come with cups already inserted.
2X BEARING SETS (4X LARGE SLIMLINE 68149 BEARINGS, 4X LARGE SLIMLINE CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X PARALLEL DUST CAPS)
On ordering please confirm your stud pattern
