Coffs Metal Works

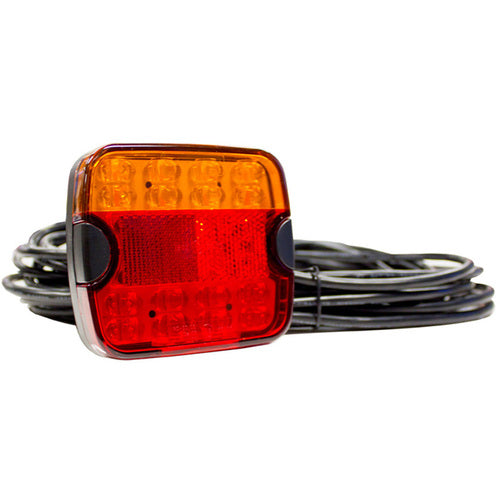

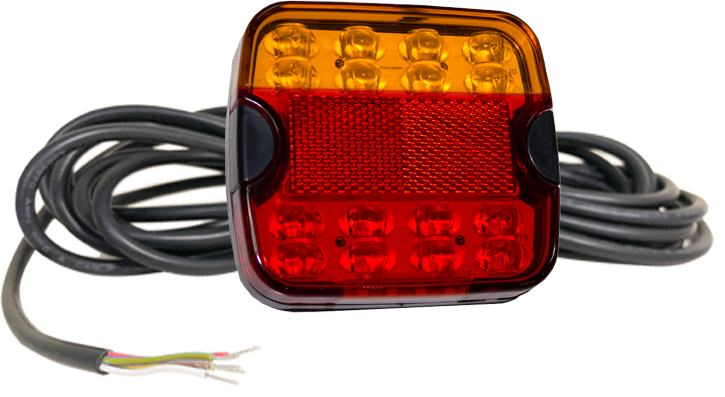

10 Series Left Hand LED Combo Trailer Lamp - Stop / Tail / Indicator with 9m Cable

10 Series Left Hand LED Combo Trailer Lamp - Stop / Tail / Indicator with 9m Cable

Regular price $90.95 AUD
Regular price Sale price $90.95 AUD
Sale Sold out
Quantity

Description

The CRL10LED is new generation combination lamp with innovative design making is suited to a wide variety of applications . Incorporating stop / tail / indicator, licence plate and reflector functions all in one package. This series features the new Multimount™ system enabling the lamp to be either stud mounted or screw mounted depending on the mounting requirement. This makes a very versatile lamp for almost any rear signalling application. Comprising a polycarbonate lens, high quality optics and tough ABS base the CRL10LED series delivers paramount reliability and performance. Available in 0.5mtr and 9mtr cable specifically for boat trailers.

Features

  • Full function LED combination lamp
  • All in one solution for rear lighting
  • Rear stud or front screw mount - Multimount™
  • Fully ADR compliant
  • Available in 0.5 & 9M Cable

Specifications

Voltage: 9-33V DC Varivolt®
Power: Stop: 3W Rear: 0.5W, Indicator: 3W Lic Plate: 2W
Mounting: Rear stud or front screw Multimount™ Rear stud or front screw Multimount™
Rear stud or front screw Multimount™
Environmental: IP67 IP67
IP67
CTA:
CRL10LH CTA-060759 CTA-060759
CTA-060759
CRL10RH CTA-060760 CTA-060760
CTA-060760

Parts List

CMW-CRL10LEDVLH LH Stop/Tail/Indicator/ Reflector
CMW-CRL10LEDVLHB LH Stop/Tail/Indicator/ Reflector - BLISTER PACK
CMW-CRL10LEDVLH9X LH Stop/Tail/Indicator/ Reflector 9m Cable
CMW-CRL10LEDVTWB LH Stop/Tail/Indicator/Reflector -TWIN BLISTER PACK
CMW-CRL10LEDVRH RH Stop/Tail/Indicator/Lic Plate/ Reflector
CMW-CRL10LEDVRHB RH Stop/Tail/Indicator/Lic Plate/ Reflector - BLISTER PACK
CMW-CRL10LEDVRH9X RH Stop/Tail/Indicator/Lic Plate/ Reflector 9m Cable

Download Specifications
