10 Series Right Hand LED Combo Trailer Lamp - Stop / Tail / Indicator / License Plate
10 Series Right Hand LED Combo Trailer Lamp - Stop / Tail / Indicator / License Plate
Regular price
$46.50 AUD
Regular price
Sale price
$46.50 AUD
Quantity
Couldn't load pickup availability
Description

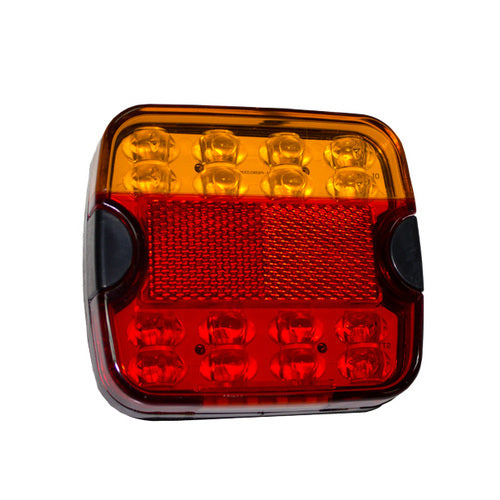

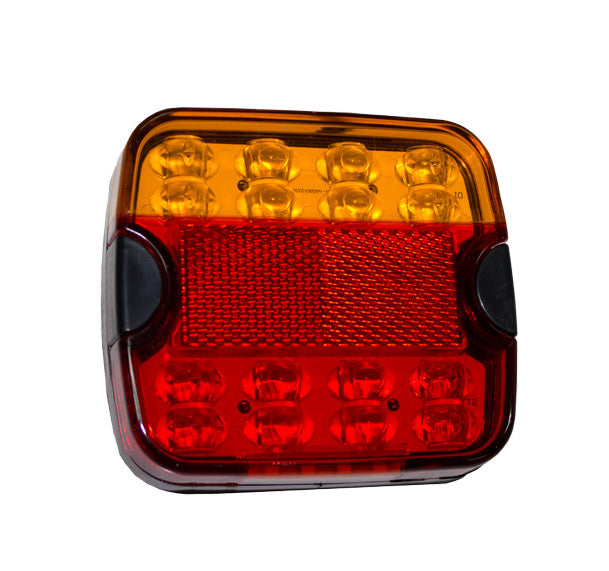

The CRL10LED is a new generation combination lamp with innovative design making that is suited to a wide variety of applications. Incorporating stop/tail/indicator, licence plate and reflector functions all in one package, the CRL10LED features the new Multimount™ system enabling the lamp to be either stud mounted or screw mounted depending on the mounting requirement. This makes a very versatile lamp for almost any rear signalling application. Comprising a polycarbonate lens, high-quality optics and tough ABS base the CRL10LED series delivers paramount reliability and performance. Suited to OEM and commercial applications.
Features
- Full function LED combination lamp
- Highly aesthetic optical design
- All in one solution for rear lighting
- Rear stud or front screw mount – Multimount™
- Fully ADR compliant
Specifications
| Applications | •Trucks •Heavy Trailers •Trailers •RV | |
| Functions | Stop / Rear Position / Direction Indicator / Licence Plate / Reflector | |
| Voltage | 9-33V DC Varivolt® | |
| Wattage | Stop:1.2W Rear Position:0.17W Licence Plate 0.1W Indicator:1.2W | |
| Mounting | Rear stud or front screw Multimount™ | Rear stud or front screw Multimount™ |
| Rear stud or front screw Multimount™ | ||
| Materials | Polycarbonate Lens ABS Body | Polycarbonate Lens ABS Body |
| Polycarbonate Lens ABS Body | ||
| Cable Length | 0.5M, 9M Optional | |
| Dimensions | 104x94x20mm | 104x94x20mm |
| 104x94x20mm | ||
| ADR Compliance | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Licence Plate: 48/00, Retro Reflector:47/00, | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Licence Plate: 48/00, Retro Reflector:47/00, |
| Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Licence Plate: 48/00, Retro Reflector:47/00, | ||
| CRN | Pending |
Parts List
| CMW-CRL10LEDLH | 10 Series Rear Combination LED 9-33V – Multimount™ w/ 0.5mtr Cable |
| CMW-CRL105LEDB | 10 Series Rear Combination LED w/ License Plate 9-33V – Multimount™ w/ 0.5M Cable |
| CMW-CRL10LEDLH9 | 10 Series Rear Combination LED 9-33V – Multimount™ w/ 9mtr Cable |
| CMW-CRL10LEDRH9 | 10 Series Rear Combination LED w/ License Plate 9-33V – Multimount™ w/ 9mtr Cable |
| CMW-CRL10LEDLHB | 10 Series Rear Combination LED 9-33V – w/ 0.5M Cable Blister |
| CMW-CRL10LEDRHB | 10 Series Rear Combination LED w/ License Plate 9-33V – w/ 0.5M Cable Blister |
