12" 5 Stud Landcruiser pattern 5/150 PCD Marine Grade Trailer Mechanical Disc Brake Kit

12" Boat Trailer Mechanical Disc Brake Kit
5 Stud Landcruiser pattern 5/150 PCD


STUD PATTERNS AVAILABLE
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)

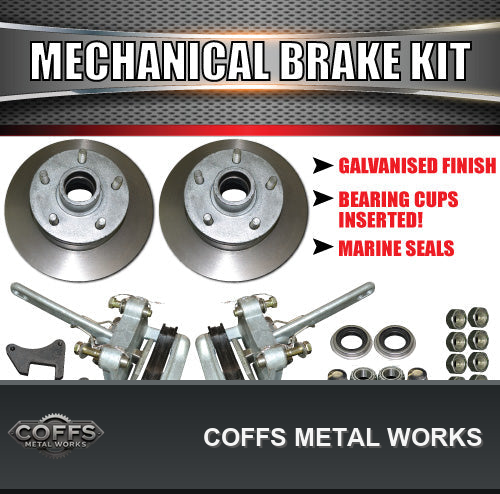

FULL KIT INCLUDES

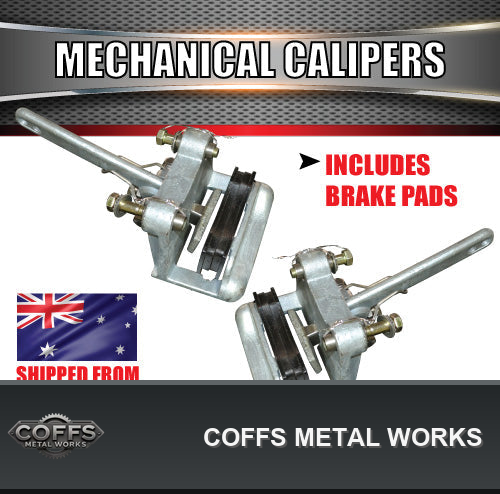

2X GALVANISED MECHANICAL BRAKE CALIPERS WITH MOUNTING BOLTS AND BRAKE PADS ALREADY INSERTED

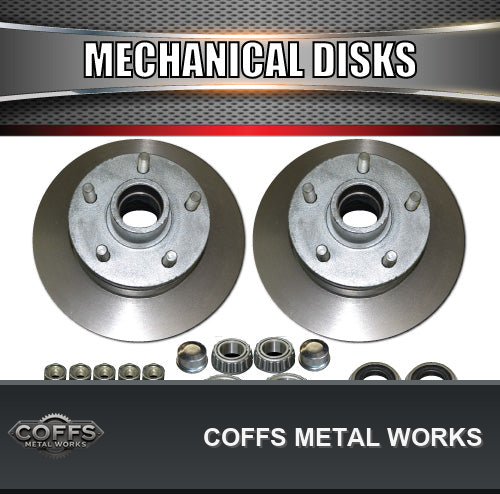

2X 12" GALVANISED DACROMET DISCS WITH HOLDEN LM OR FORD S/L SIZE BEARINGS & MARINE SEALS. COMES WITH WHEEL NUTS TO SUIT THE STUD PATTERN PROVIDED
2X BEARING SETS WITH MARINE SEALS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X MARINE SEALS SEALS, 2X DUST CAPS) Bearing Cups will be inserted

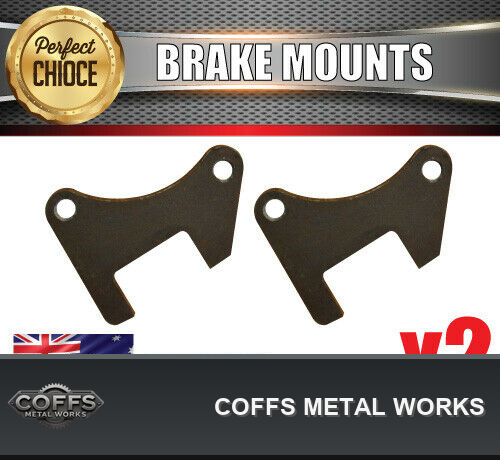

2X MECHANICAL DISC BRAKE FLANGES (available in 39mm round, 40mm square 45mm round, 45mm square)

INFORMATION REQUIRED
BEARING STYLE: LM OR SLIMLINE (see options below)
WIDTH OF AXLE: 39MM ROUND, 40MM SQUARE, 45MM ROUND OR 45MM SQUARE (45mm mounts can be used for 50mm axles)

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
