12" 6 Stud Trailer Caravan Mechanical Disc Brake & Coupling Kit

12" TRAILER CARAVAN MECHANICAL DISC BRAKE KIT
WITH COMPLETE COUPLING KIT
(6 STUD LAND CRUISER PATTERN)


STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)

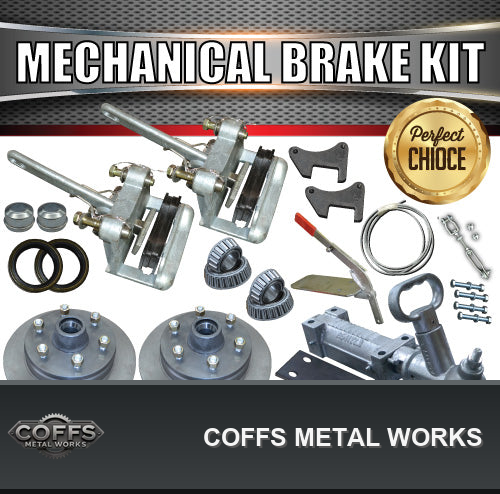

FULL KIT INCLUDES

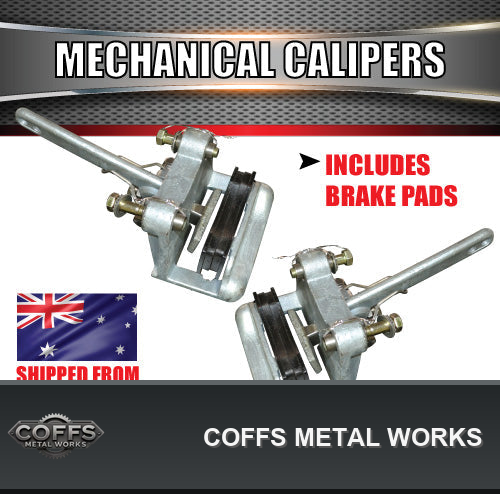

2X GALVANISED MECHANICAL BRAKE CALIPERS WITH MOUNTING BOLTS AND BRAKE PADS ALREADY INSERTED

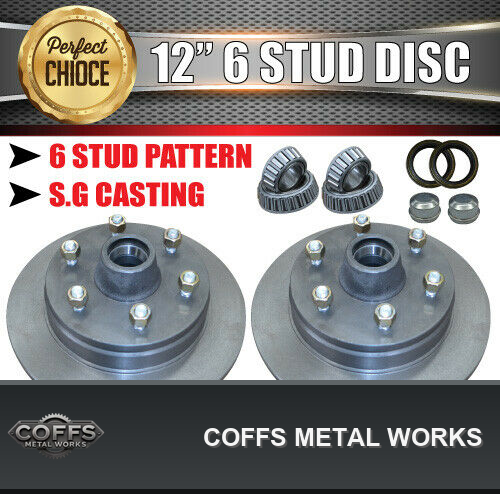

2X NATURAL FINISH 12" 6 STUD MECHANICAL BRAKE DISCS WITH CUPS INSERTED. COMES WITH 1/2" WHEEL NUTS
2X BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X DUST SEALS, 2X DUST CAPS)

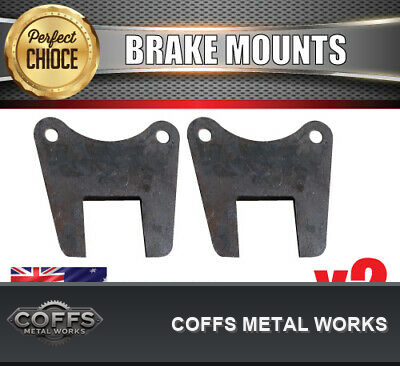

2X LARGE LANDCRUISER SIZE MECHANICAL DISC BRAKE FLANGES (available in 40mm square, 45mm square or 50mm square)

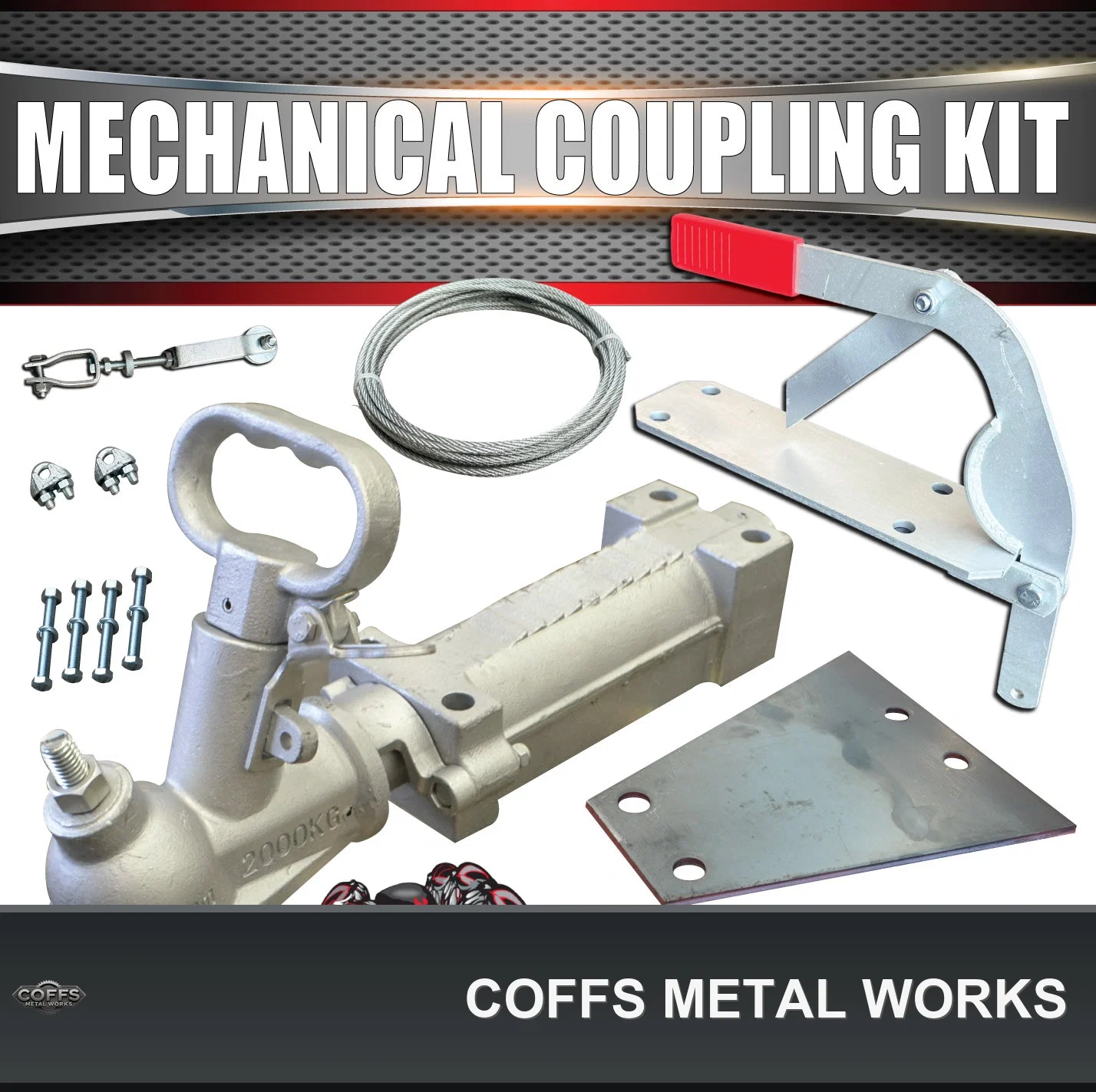

1X 2000KG 4 HOLE OVERRIDE 50mm BALL COUPLING

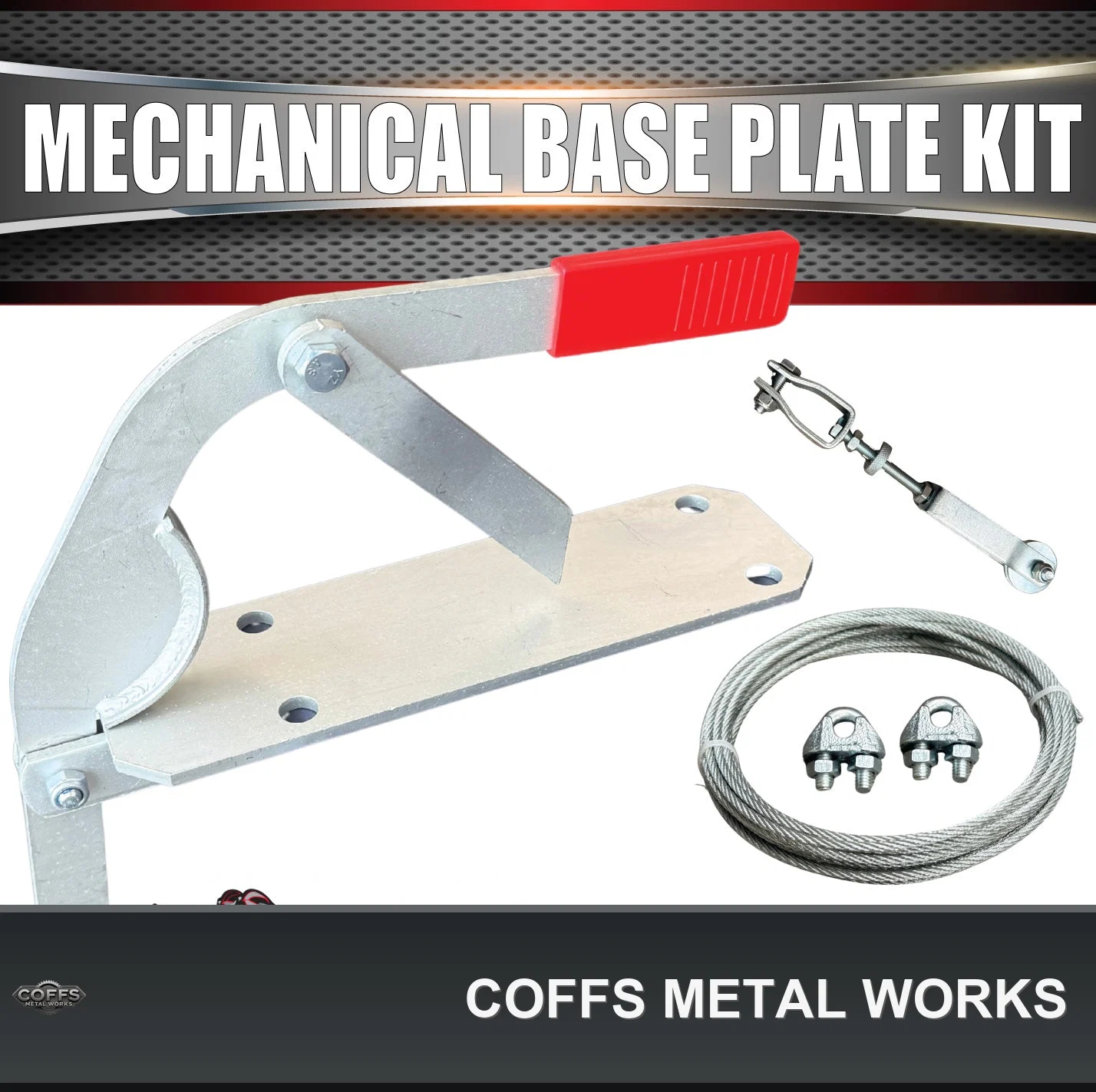

1X GALVANISED MECHANICAL BASE PLATE AND LEVER (Designed to hel clear rear car doors)
4X HIGH TENSILE BOLTS WITH NYLOC NUTS
4 HOLE WELD ON COUPLING BASE PLATE
8 METRES 4MM HAND BRAKE CABLE (let us know if longer is required)
2X CABLE CLAMPS
1X CABLE ADJUSTER AND STAINLESS BOLT WITH NYLOC NUT

HUBS COME WITH BEARING CUPS INSERTED

INFORMATION REQUIRED
BEARING STYLE (LM OR SL) SEE OPTIONS BELOW
WIDTH OF AXLE FOR DISC MOUNTS: 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE


BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49
