12" Galvanised 6 Stud Boat Trailer Mechanical Disc Brake & Coupling Kit

12" GALVANISED BOAT TRAILER MECHANICAL DISC BRAKE KIT
WITH COMPLETE COUPLING KIT

STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)

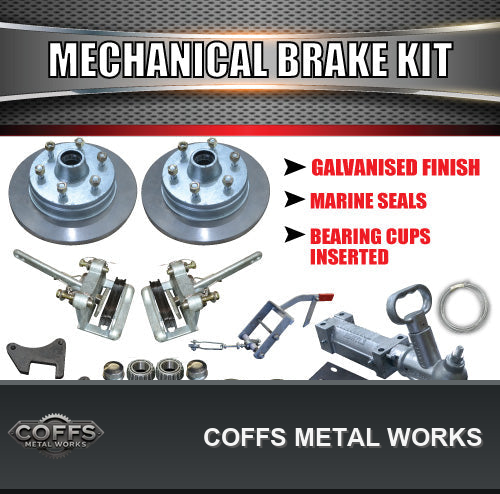

FULL KIT INCLUDES

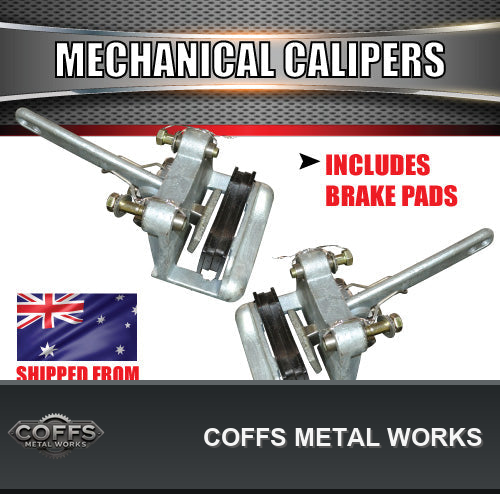

2X GALVANISED MECHANICAL BRAKE CALIPERS WITH MOUNTING BOLTS AND BRAKE PADS ALREADY INSERTED

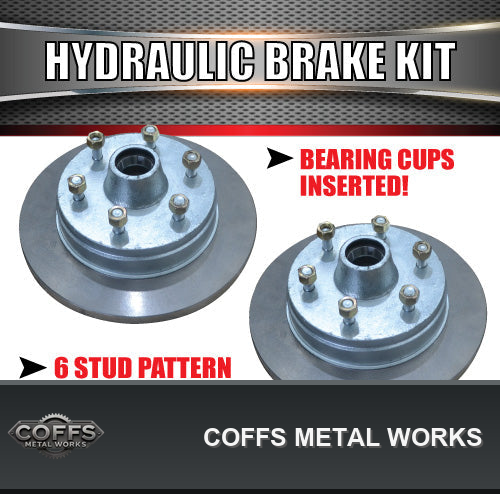

2X GALVANISED DACROMET 12" 6 STUD DISCS WITH CUPS INSERTED. COMES WITH WHEEL NUTS
2X LM OR SLIMLINE BEARING SETS WITH MARINE SEALS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X MARINE SEALS SEALS, 2X DUST CAPS)

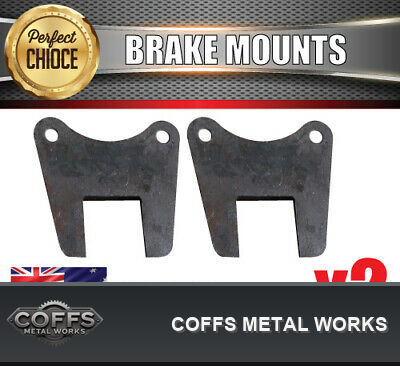

2X LARGE LANDCRUISER SIZE 12" MECHANICAL DISC BRAKE FLANGES (available in 40mm square, 45mm square or 50mm square)

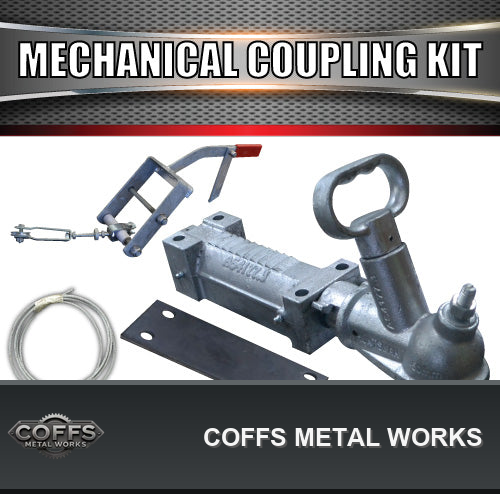

1X 2000KG GALVANISED OVERRIDE 50MM BALL COUPLING
1X MARINE MECHANICAL BRAKE LEVER. AVAILABLE TO SUIT 100MM OR 75MM WIDE DRAW BAR. 100MM WILL COME STANDARD UNLESS ADVISED OTHERWISE (A Frame mechanical base plate style available upon request)
1X 8 METRES 4MM BRAKE CABLE (PLEASE LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
2X CABLE CLAMPS
1X 4 HOLE WELD ON PLATE
4X HIGH TENSILE BOLTS AND NYLOC NUTS
HUBS COME WITH BEARING CUPS INSERTED

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT)
BEARING STYLE (LM OR SL) SEE OPTIONS BELOW
WIDTH OF AXLE FOR DISC MOUNTS: 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
