12" Parallel 1600Kg Boat Trailer 6 Stud Hydraulic Disc Brake Kit. S/S Pistons

PARALLEL 1600KG TRAILER HYDRAULIC DISC BRAKE KIT
STAINLESS STEEL PISTONS

STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)

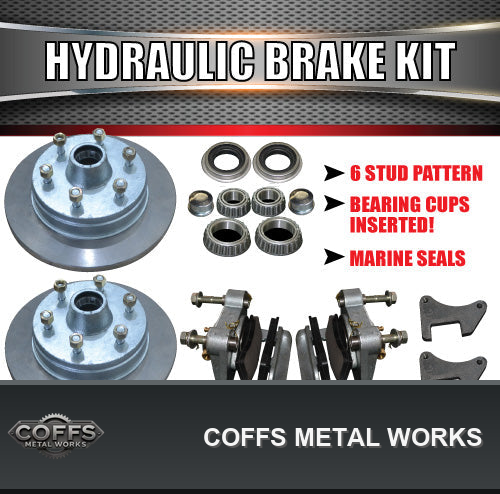

FULL KIT INCLUDES

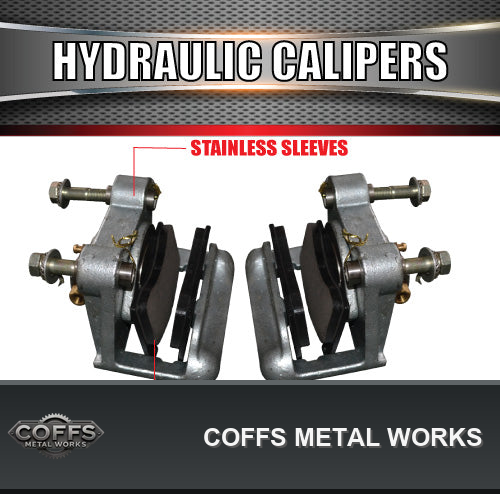

2X GALVANISED HYDRAULIC DISC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS. COME WITH MOUNT BOLTS AND WASHERS
4X HYDRAULIC DISC BRAKE PADS

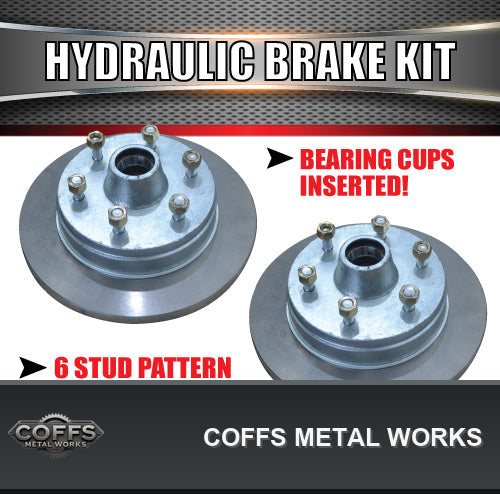

2 X PARALLEL GALVANISED DACROMET 12" 6 STUD DISC HUBS WITH PARALLEL CUPS INSERTED. COMES WITH 1/2" WHEEL NUTS

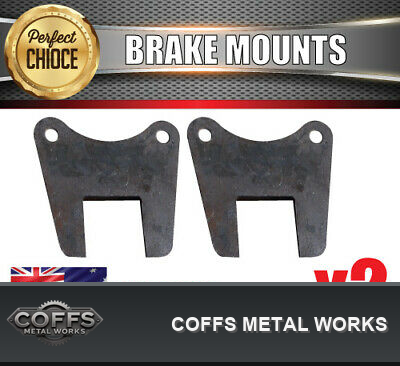

2X NATURAL FINISH MOUNTING PLATES (available in 45mm square or 50mm square)
2X PARALLEL BEARING SETS (2X L68149 INNER BEARINGS, 2X L68149 OUTER BEARINGS, 2X STAINLESS STEEL MARINE SEALS, 2X 63MM DUST CAPS)

upgrade to the easy instillation hydraulic line setup.
12ft set up Item number: 180995030571 $105
16ft set up Item number: 171178278490 $115

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0

INFORMATION REQUIRED
WIDTH OF AXLE FOR DISC MOUNTS:  45MM SQUARE OR 50MM SQUARE


DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
