12" Trailer 5 Stud 5/150 PCD Suit Landcruiser Pattern Marine Grade Hydraulic Disc Brake Kit

TRAILER CARAVAN HYDRAULIC DISC BRAKE KIT
TO SUIT 5 STUD LANDCRUISER PATTERN (12"discs)
STAINLESS STEEL PISTONS

STUD PATTERNS AVAILABLE
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) 12" DISCS

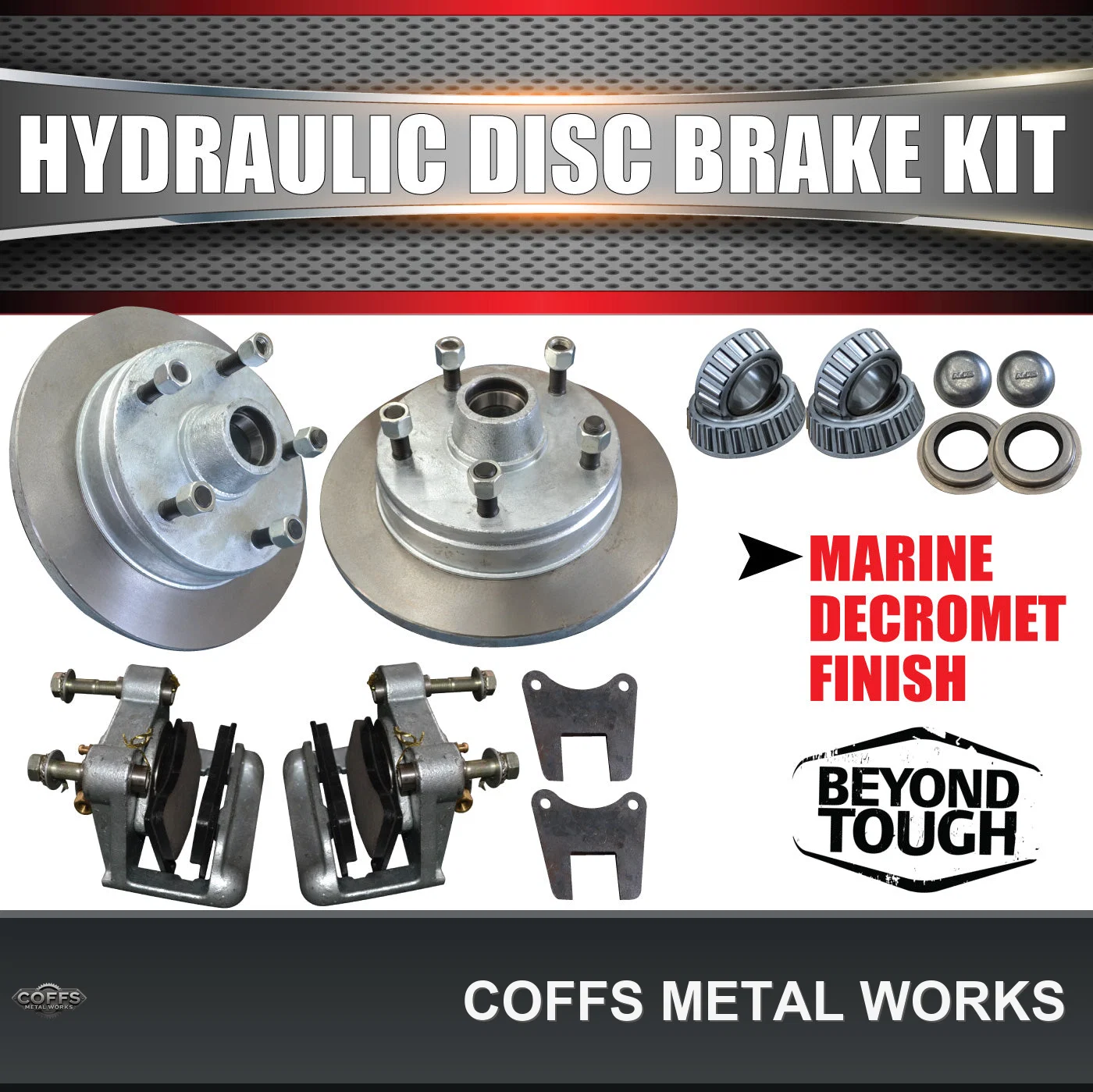

FULL KIT INCLUDES

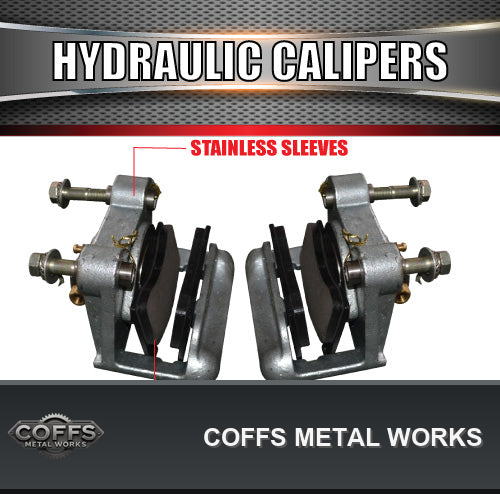

2X GALVANISED HYDRAULIC BRAKE CALIPERS WITH STAINLESS STEEL PISTON. COMES WITH MOUNT
4X HYDRAULIC DISC BRAKE PADS

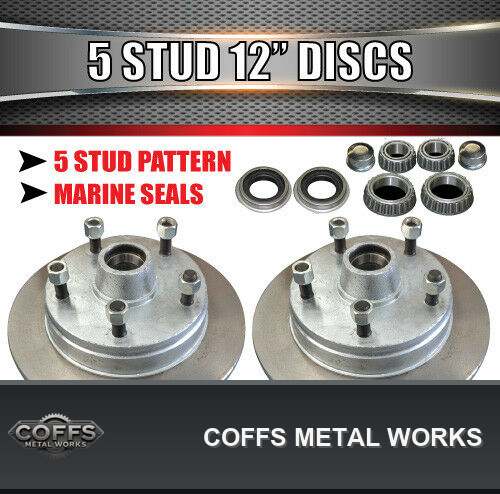

2 X GALVANISED DACROMET 12" HYDRAULIC DISC HUBS WITH CUPS INSERTED. COMES WITH 9/16" WHEEL NUTS

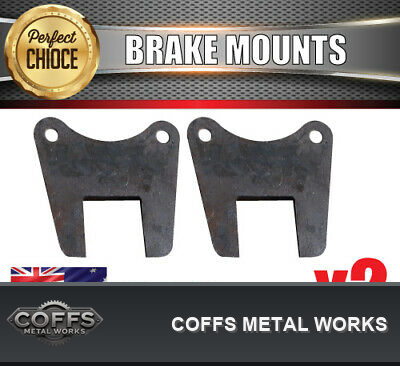

2X NATURAL FINISH MOUNTING PLATES. 88mm Hole Centres (available in 40mm square, 45mm square or 50mm square)
2X BEARING SETS TO SUIT AXLE SIZE SUPPLIED (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL BEARING CUPS, 2X MARINE SEALS, 2X DUST CAPS)

upgrade to the easy instillation hydraulic line setup.
12ft set up Item number: 180995030571 $105
16ft set up Item number: 171178278490 $115

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0

INFORMATION REQUIRED
BEARING STYLE (LM OR SL) SEE OPTIONS BELOW
WIDTH OF AXLE FOR DISC MOUNTS: 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE

BEARING NUMBERS
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERN:
5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches


DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
