12" Trailer 6 Stud Hydraulic Disc Brake Kit. Caravan Camper. Stainless Pistons

TRAILER CARAVAN HYDRAULIC DISC BRAKE KIT
STAINLESS STEEL PISTONS

STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)

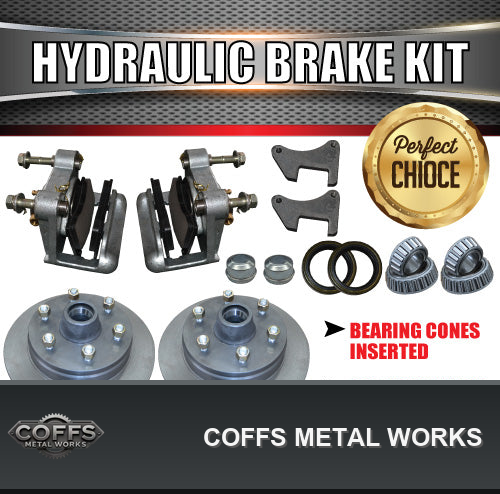

FULL KIT INCLUDES

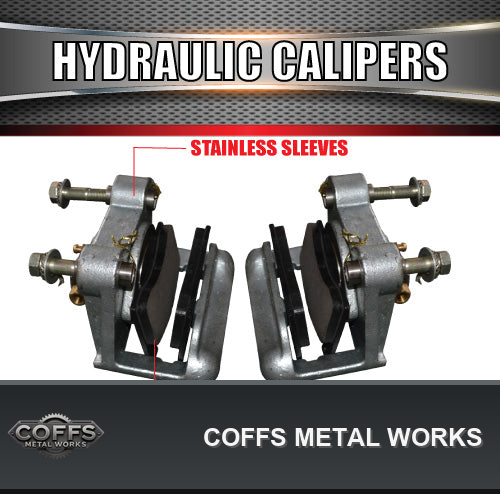

2X GALVANISED HYDRAULIC DISC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS. COMES WITH MOUNT BOLTS AND WASHERS
4X HYDRAULIC DISC BRAKE PADS

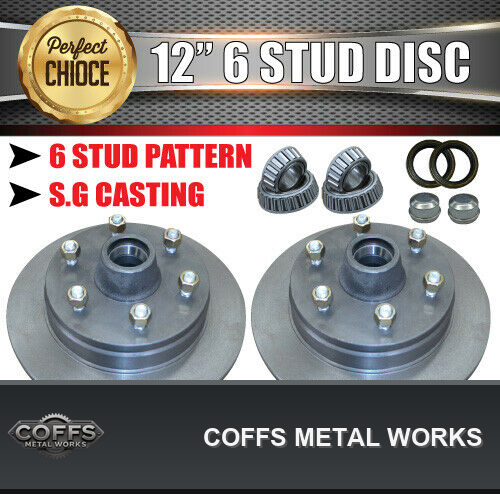

2 X NATURAL FINISH 12" 6 STUD HYDRAULIC DISC HUBS WITH CUPS INSERTED. COMES WITH 1/2" WHEEL NUTS

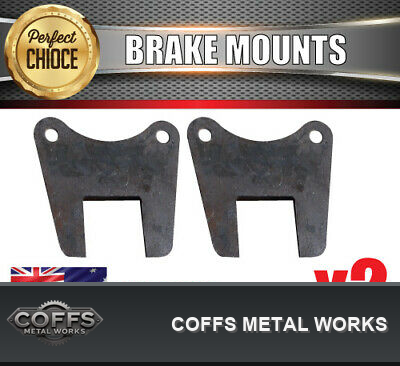

2X NATURAL FINISH MOUNTING PLATES (available in 40mm square, 45mm square or 50mm square)
2X BEARING SETS TO SUIT THE AXLE SPECS PROVIDED (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL BEARING CUPS, 2X DUST SEALS, 2X DUST CAPS)

upgrade to the easy instillation hydraulic line setup.
12ft set up Item number: 180995030571 $95
16ft set up Item number: 171178278490 $105

INFORMATION REQUIRED
BEARING STYLE (LM OR SL) SEE OPTIONS BELOW
WIDTH OF AXLE FOR DISC MOUNTS: 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49

STUD PATTERN:
6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches
