12" Trailer Caravan 6 Stud Hydraulic Disc Brake Kit With Full coupling & hydraulic Line kit.

HYDRAULIC DISC BRAKE KIT
COMPLETE WITH COUPLING AND FITTING KIT

STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)

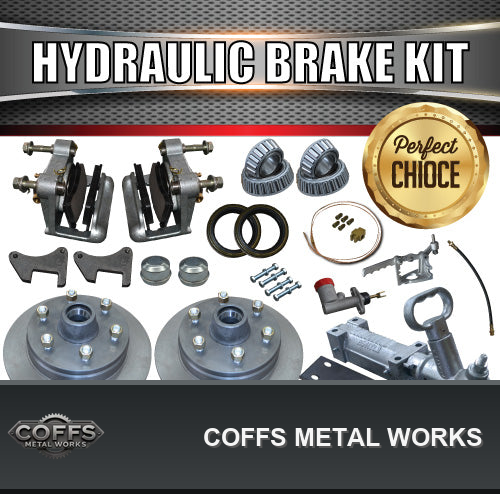

FULL KIT INCLUDES

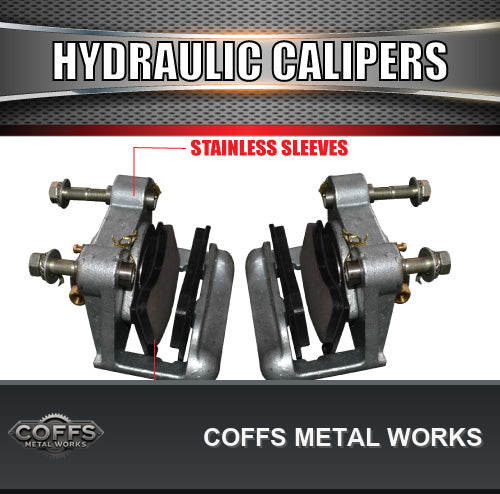

2X GALVANISED HYDRAULIC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS. COMES WITH MOUNT BOLTS AND WASHERS
4X HYDRAULIC DISC BRAKE PADS

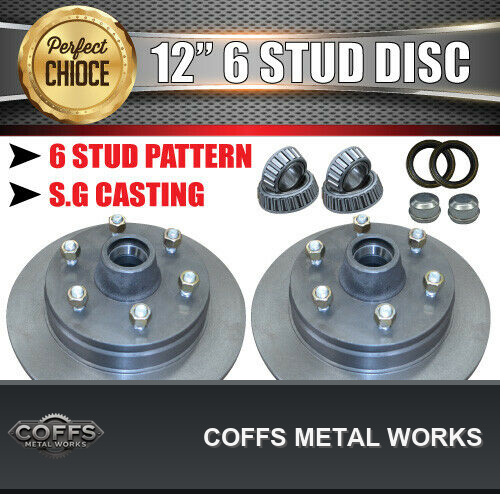

2 X NATURAL FINISH 12" 6 STUD DISC HUBS WITH CUPS INSERTED. COMES WITH 1/2" WHEEL NUTS

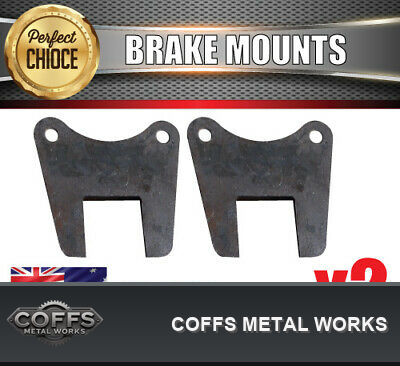

2X NATURAL FINISH MOUNTING PLATES (available in 40mm square, 45mm square or 50mm square)
2X BEARING SETS TO SUIT CUSTOMERS AXLE (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL BEARING CUPS, 2X DUST SEALS, 2X DUST CAPS)

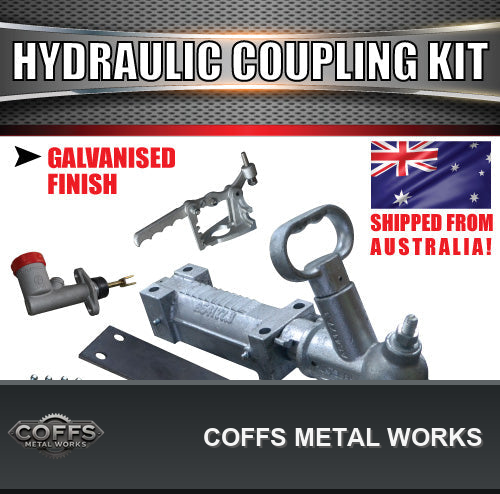

1X OVERRIDE 2000Kg 50mm BALL COUPLING
1x MASTER CYLINDER BRACKET
1X 3/4" MASTER CYLINDER AND STAINLESS MOUNTING BOLTS (7/8" available upon request +$15)
1 X 4 HOLE WELD ON COUPLING PLATE

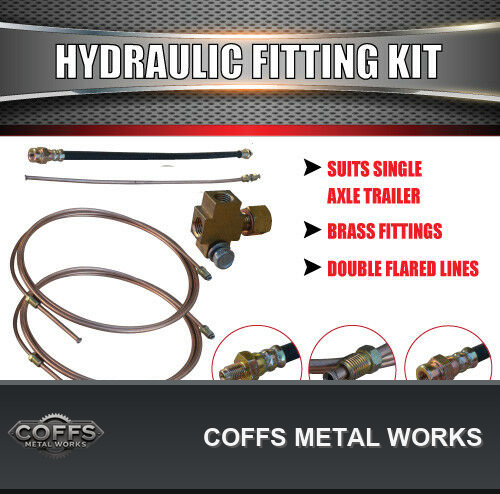

1 X 300MM MALE/FEMALE FLEXI HOSE
1X 2500MM COUPLING TO AXLE FLARED BUNDY LINE WITH NUTS (let us know if longer is required)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING

INFORMATION REQUIRED
BEARING STYLE (LM OR SL) SEE OPTIONS BELOW
WIDTH OF AXLE FOR DISC MOUNTS: 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE


BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERN:
6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches
