1400Kg Single Axle Trailer Kit. 12" Mechanical Disc Brakes. Eye to Eye Springs. Machined Stub Axles

DIY SINGLE AXLE TRAILER KIT
1400KG RATED
EYE TO EYE SPRINGS, MECHANICAL DISC BRAKES


45MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION

Stud Patterns Availble
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)

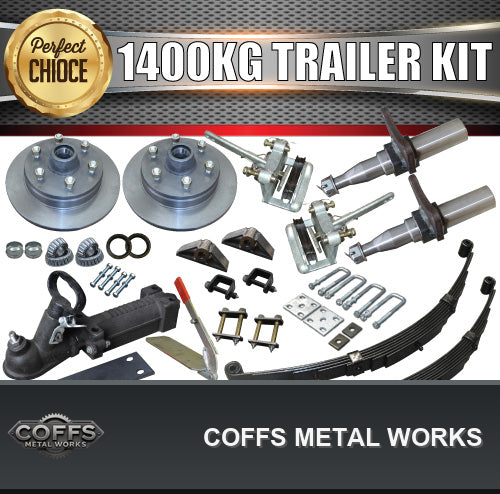

IN THIS KIT

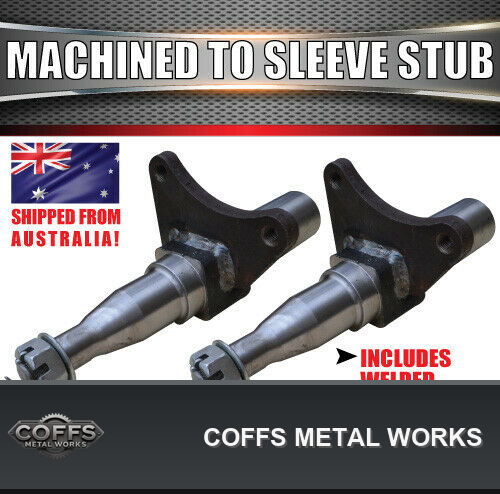

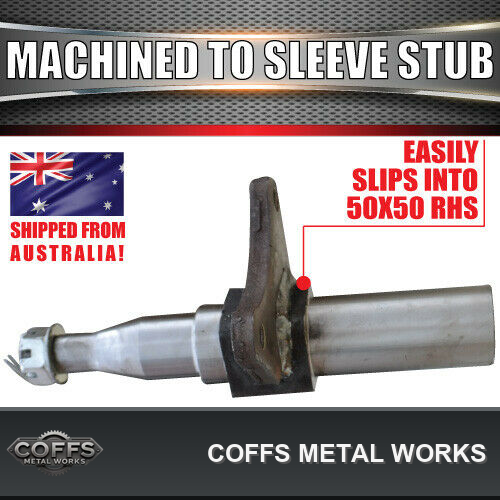

2X 45MM X 250MM SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S WITH 12" MECHANICAL DISC MOUNTS WELDED. ALSO COMES WITH SPLIT PINS AND WASHER

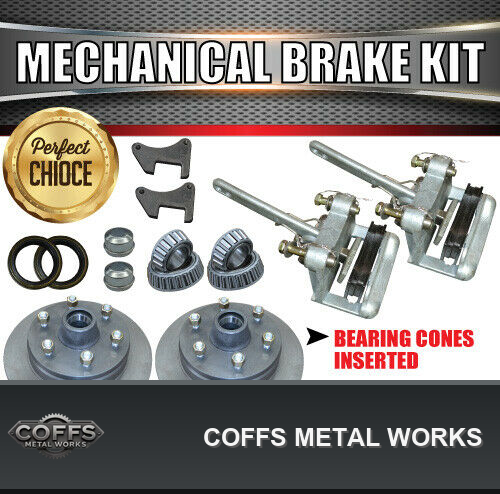

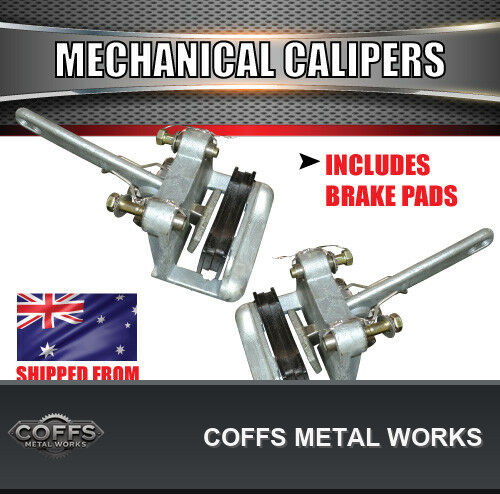

2X MECHANICAL BRAKE CALIPERS WITH CALIPER BRAKE PADS
2X 12" NATURAL FINISH DISCS.  S.G CASTING.  WHEEL STUDS AND NUTS SUPPLIED  (discs come with cups already inserted)
2X SLIMLINE BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

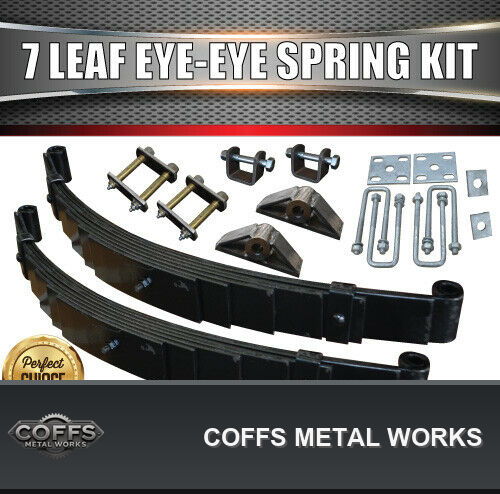

2X 7 LEAF 60MM X 6MM BLACK EYE TO EYE SHACKLE SPRINGS. RATED 1600KG PER PAIR. (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

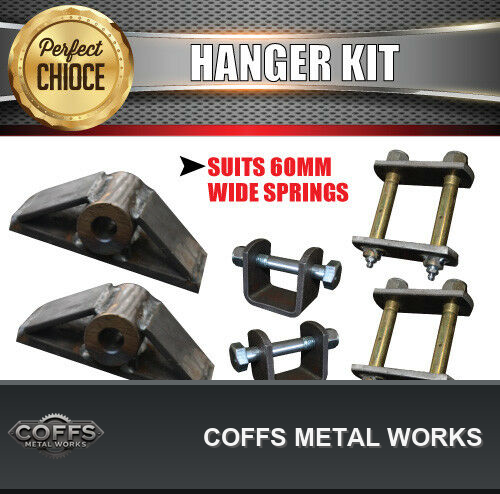

2X FRONT HANGERS WITH 5/8" HIGH TENSILE GREASABLE SPRING BOLTS
2X REAR EXTRA STRENGTH GUSSETED HANGERS
2X REAR DOUBLE 5/8" HIGH TENSILE GREASABLE SHACKLE BOLTS WITH NYLOC NUTS
2X FISH PLATES
4X 50MM X 150MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

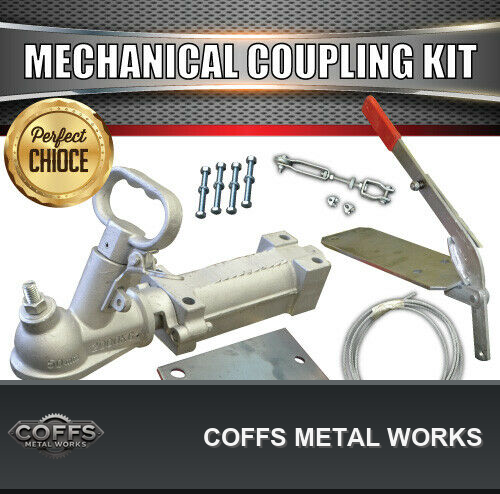

1X 2000KG 4 HOLE OVERRIDE BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS BOLTS WITH NYLOC NUTS
1X 4 HOLE WELD ON COUPLING BASE PLATE
1X GALVANISED MECHANICAL BASE PLATE WITH HANDBRAKE LEVER
8 METRES 4MM HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
2X CABLE CLAMPS
1X CABLE ADJUSTER

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (CLINK ON LINK BELOW)

SHOT PEENING

Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.

EYE TO EYE SPRING SETUP

Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs
