1400Kg Single Axle Trailer Kit. Mechanical Drum Brakes. Eye to Eye Shackle Springs. Axle Lengths 64" - 77"

MECHANICAL DRUM BRAKED EYE TO EYE SPRING TRAILER KIT
1400KG RATED
AXLE LENGTHS 64" - 77" (for longer axles SKU: 364245273385)

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)

AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)

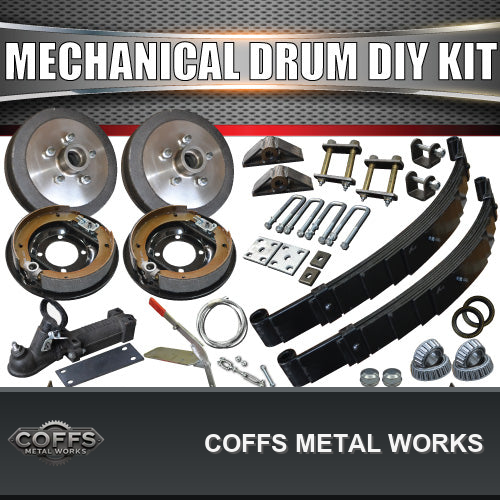

IN THIS KIT
1X 45MM SQUARE SOLID AXLE WITH MECHANICAL MOUNTS ALREADY WELDED , ALSO COMES WITH SPLIT PINS & WASHERS. AVAILABLE IN 64", 65", 66, 67", 68", 69", 70", 71", 73", 75", 77" ( TIP TO TIP)

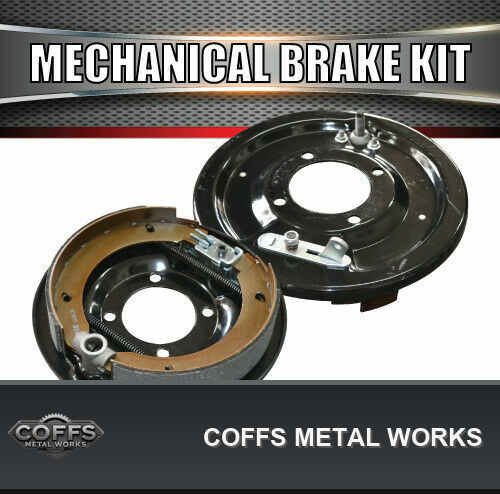

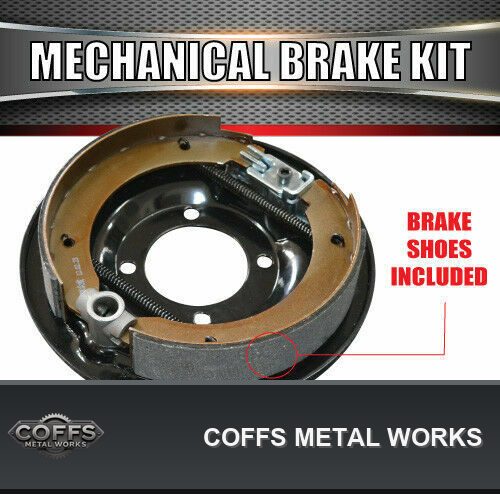

1X LEFT HAND 9" MECHANICAL BRAKE BACKING PLATE
1X RIGHT HAND 9" MECHANICAL BRAKE BACKING PLATE

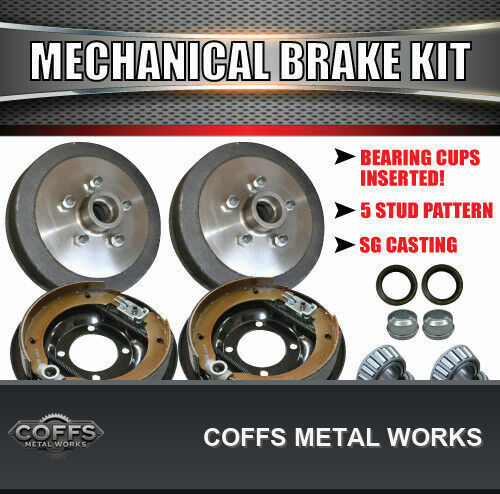

2X 9" HUB DRUMS. S.G CASTING. WHEEL STUDS AND NUTS SUPPLIED (drums come with cups already inserted)
2X SLIMLINE BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

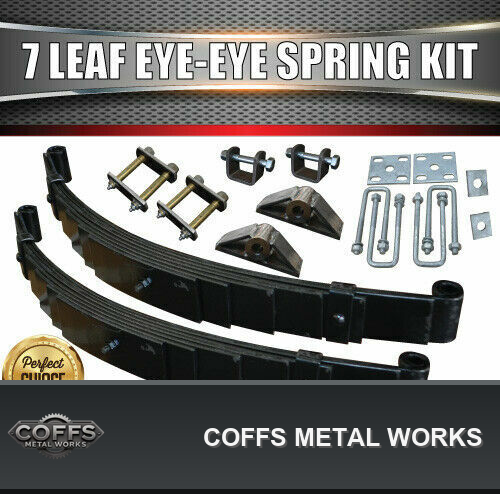

2X 7 LEAF 60MM X 6MM BLACK EYE TO EYE SPRINGS. RATED 1600KG PER PAIR. (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

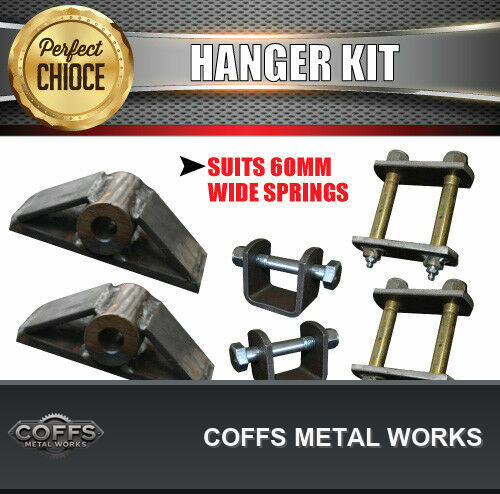

2X FRONT SHACKLE HANGERS
2X REAR SHACKLE HANGERS WITH EXTRA STRENGTH GUSSET SUPPORTS
2X REAR HIGH TENSILE DOUBLE SHACKLE BOLTS WITH GREASE NIPPLES
2X HIGH TENSILE FRONT SPRING BOLTS
2X SLOTTED FISH PLATES
4X 45MM X 150MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

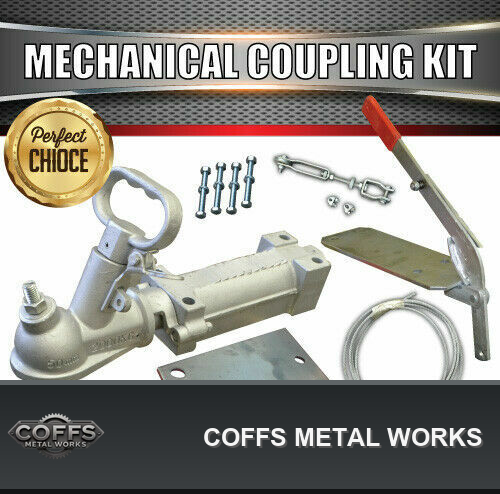

1X 2000KG 4 HOLE OVERRIDE BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING BASE PLATE
1X MECHANICAL BASE PLATE WITH BRAKE LEVER
8 METRES 4MM BRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
2X CABLE CLAMPS

EYE TO EYE SPRING SETUP BELOW

Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs

SHOT PEENING

Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
