1400Kg Single Axle Trailer Kit. Mechanical Drum Brakes. Slipper Springs. Machined Stub Axles

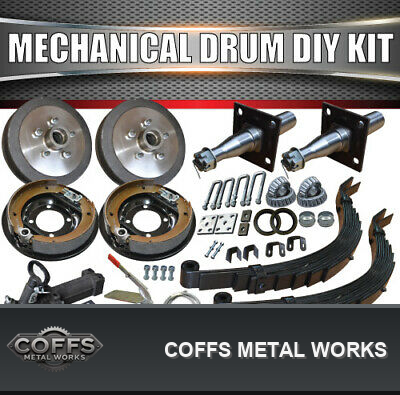

DIY 1400KG TRAILER KIT
MECHANICAL DRUM BRAKES, SLIPPER SPRINGS
5MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)


IN THIS KIT

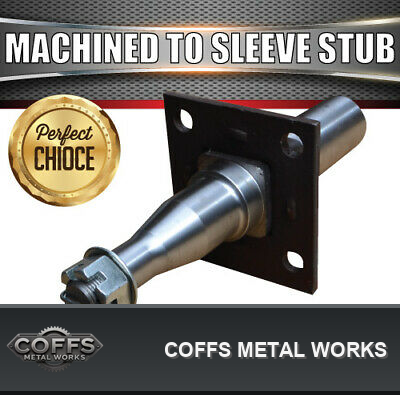

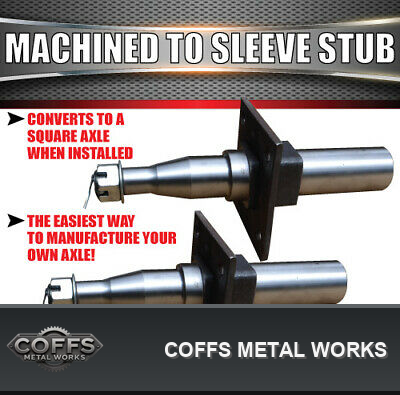

X2 BRAND NEW 45MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION WITH MECHANICAL DRUM BRAKE MOUNTS WELDED

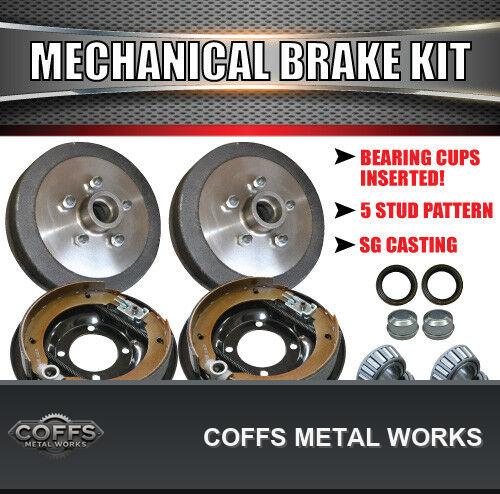

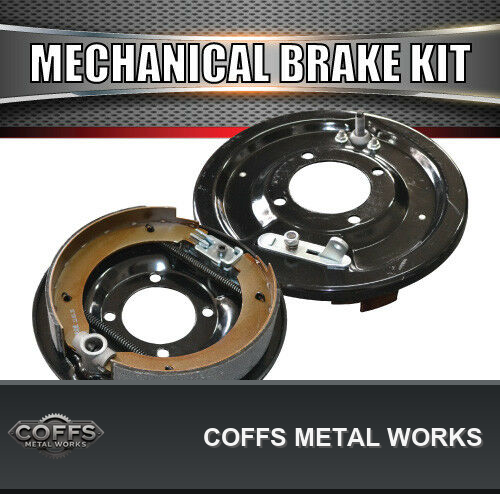

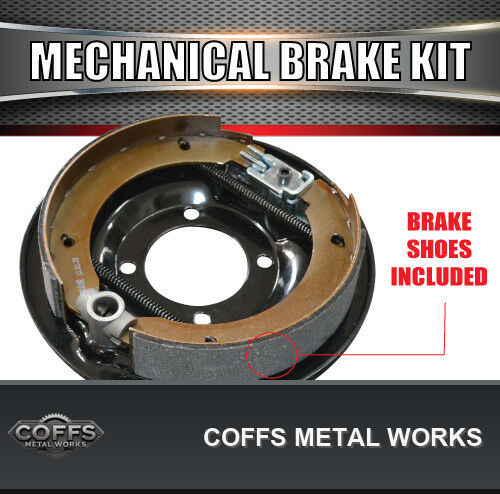

1X LEFT HAND 9" MECHANICAL BRAKE BACKING PLATE
1X RIGHT HAND 9" MECHANICAL BRAKE BACKING PLATE
2X 9" HUB DRUMS. S.G CASTING. WHEEL STUDS AND NUTS SUPPLIED (drums come with cups already inserted)
2X SLIMLINE BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)
2X 9 LEAF 45MM X 6MM BLACK SLIPPER SPRINGS. RATED 1600KG PER PAIR. (springs are shot peened for extra strength)
2X FRONT SLIPPER HANGERS WITH SPRING BOLTS
2X REAR SLIPPER HANGERS
2X FISH PLATES
4X 45MM X 150MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

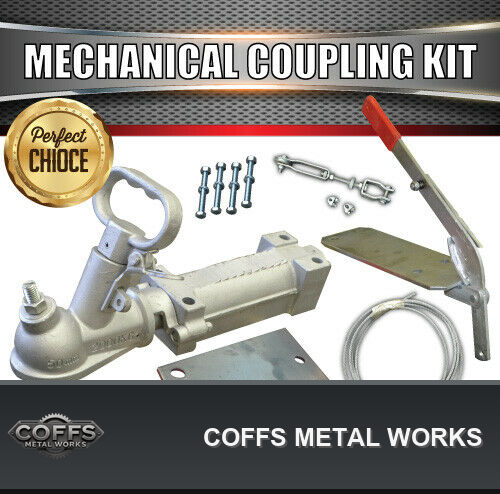

1X 2000KG 4 HOLE OVERRIDE BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING BASE PLATE
1X MECHANICAL BASE PLATE WITH LEVER
8 METRES 4MM BRAKE CABLE (LET US KNOW IF LONGER IF REQUIRED)
1X CABLE ADJUSTER
2X CABLE CLAMPS

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
