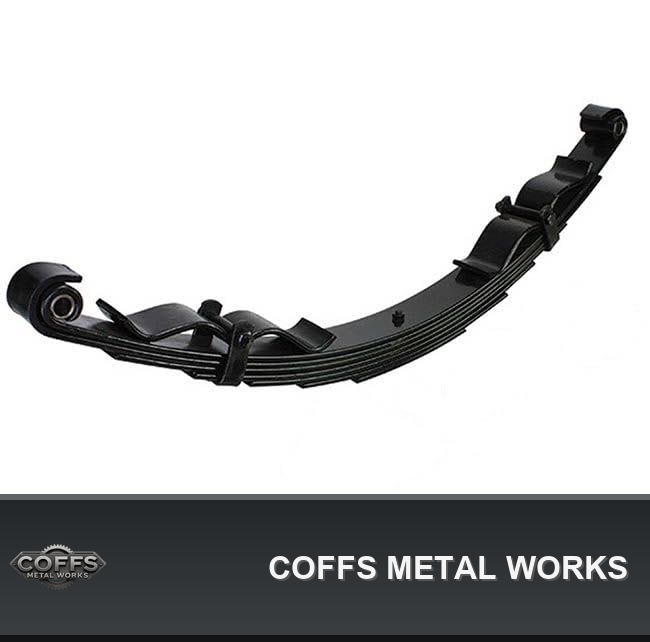

1x 6 Leaf Off Road Trailer Caravan Shackle Spring 1350Kg (per pair) with Rebound Straps. Shot Peened

1X 6 LEAF 1350KG (PER PAIR) 60MM X 7MM HEAVY DUTY OFF ROAD EYE TO EYE TRAILER SPRING
REBOUND DAMPNER STRAPS
SHOT PEENED SPRING

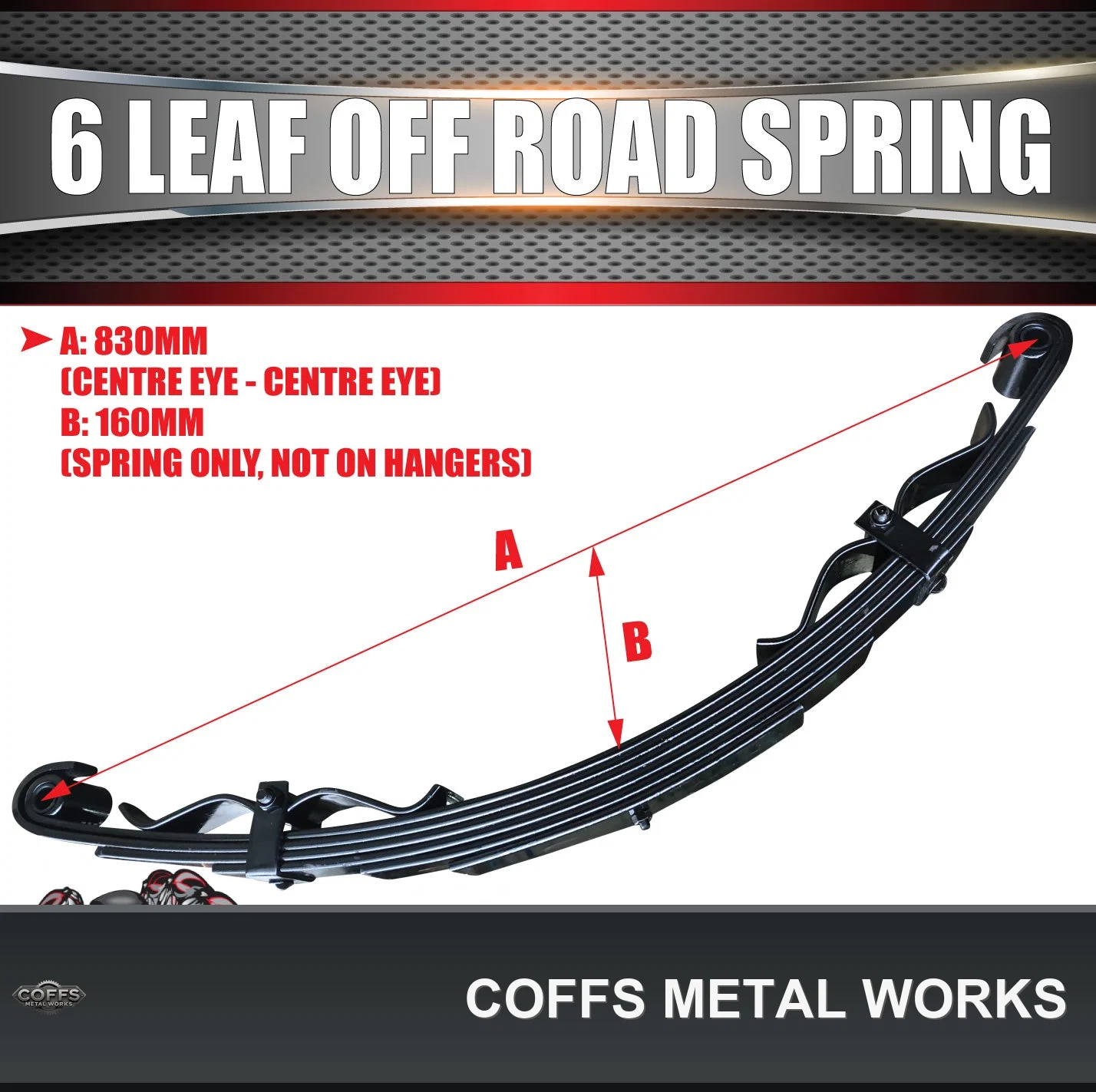

CENTRE EYE TO CENTRE EYE = APPROX 830MM
END TO END = APPROX 900MM
CAMBER ARC HEIGHT 160MM. (SPRING ONLY. NOT ASSEMBLED ON HANGERS)
SPRING WIDTH = 60MM
LEAF THICKNESS = 7MM
COMES WITH 2 X REBOUND DAMPNERS PER SPRING (SHOCK ABSORTION)
SPRING IS SHOT PEENED
RATED: 1350KG PER PAIR

EYE TO EYE SHACKLE SPRING SETUP BELOW

Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs

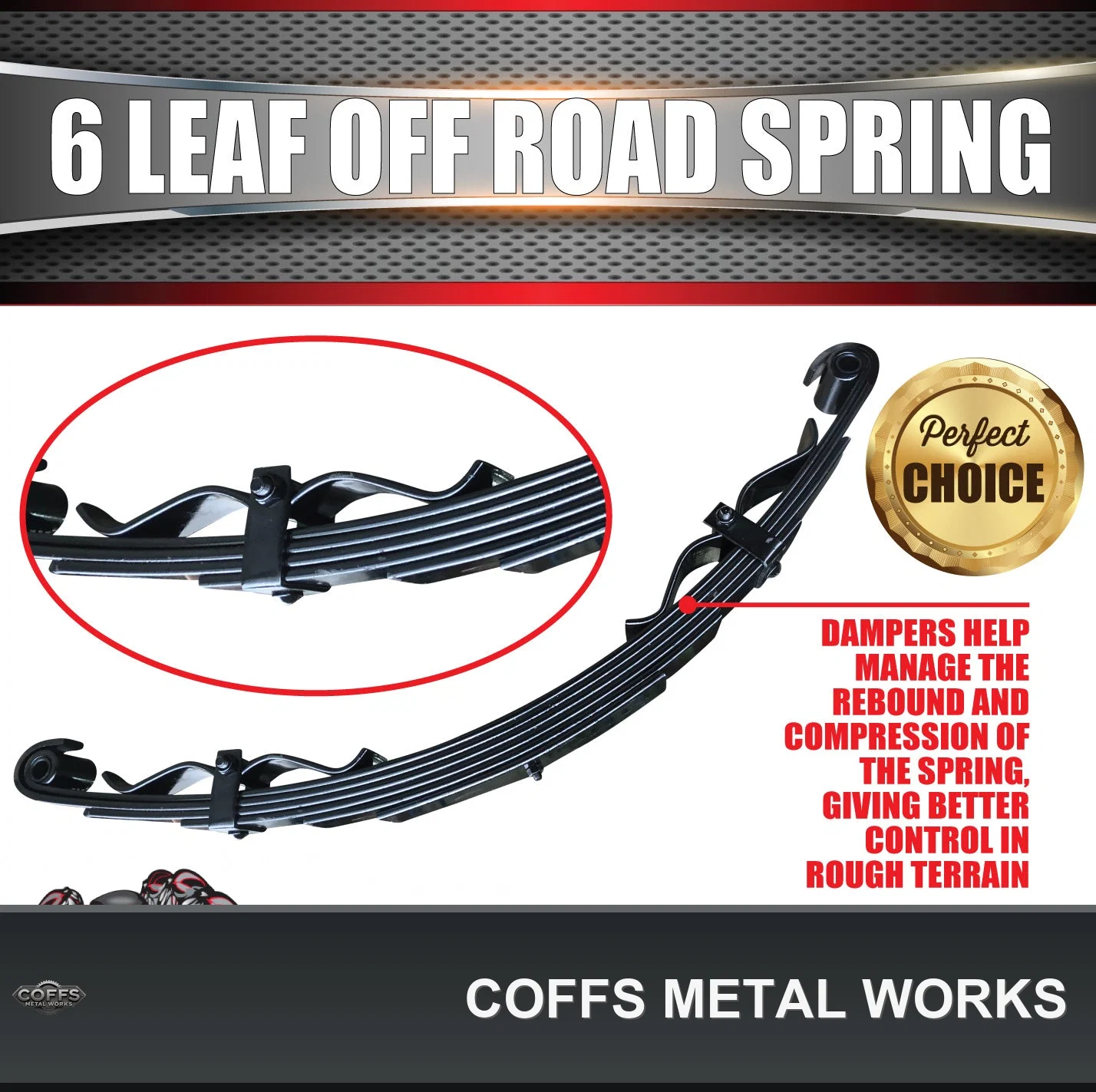

Rebound spring dampers are suspension components that manage the speed at which a spring extends after being compressed. They absorb kinetic energy during the "droop" (rebound) phase to prevent the wheel from bouncing uncontrollably off the road or trail, ensuring vehicle stability, traction, and ride comfort

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
