2000kg 12" Dacromet Landcruiser Pattern Ventilated Hydraulic Disc Brake Kit
Dacromet Finish with Dacromet Marine Hubs And Bearings
5 or 6 stud Landcruiser Pattern

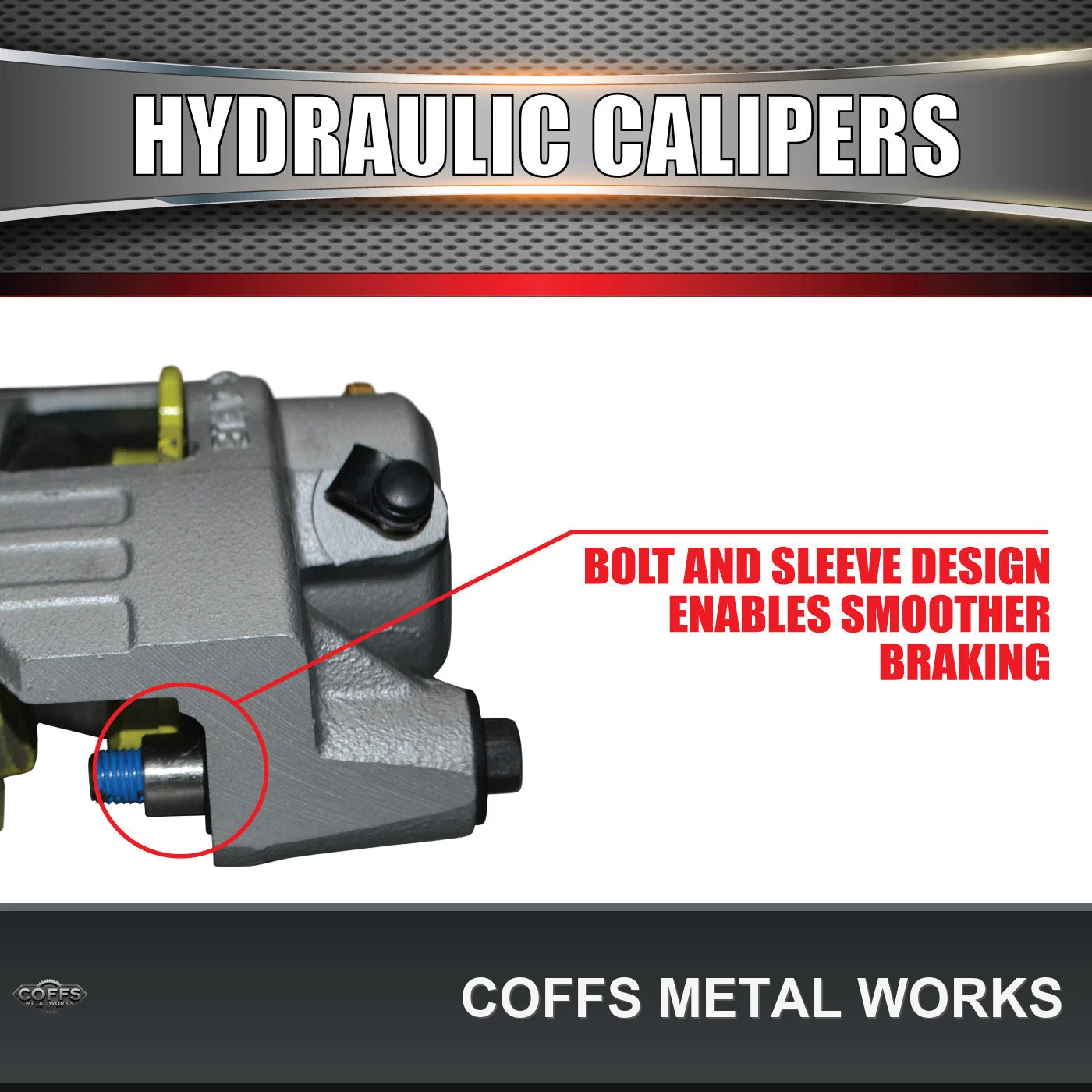

This Coffs Metal Works ventilated hydraulic disc brake kit is much more superior to any standard trailer or RV brake kit. The ventilated disc will allow the caliper to breathe and work at full capacity with better cooling . The ventilation disc will also allow any mud or water to easily release from the brake setup. With the caliper having dual bleed nipples it will allow more options for caliper position. The caliper also has a bolt and sleeve design.

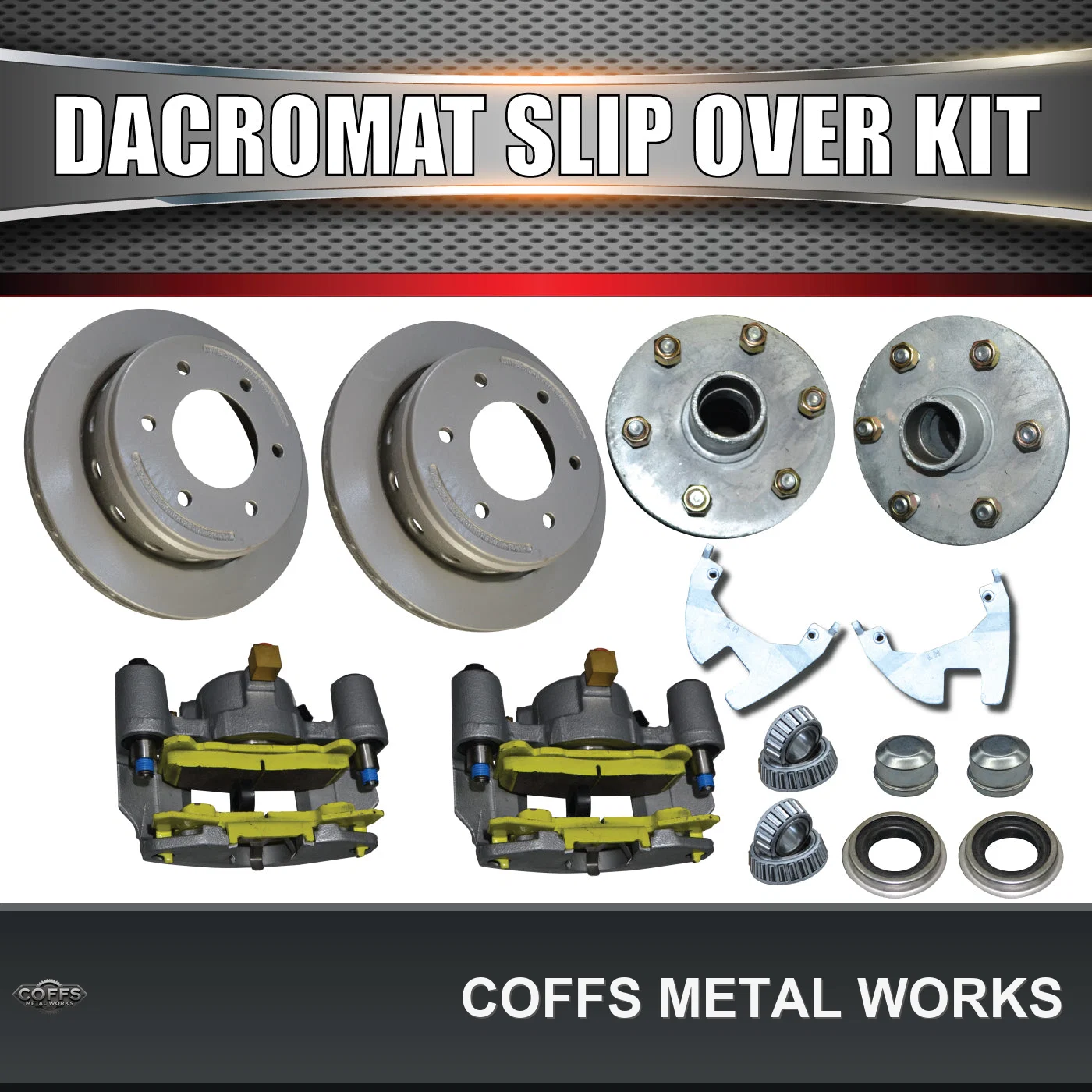

FULL KIT INCLUDES

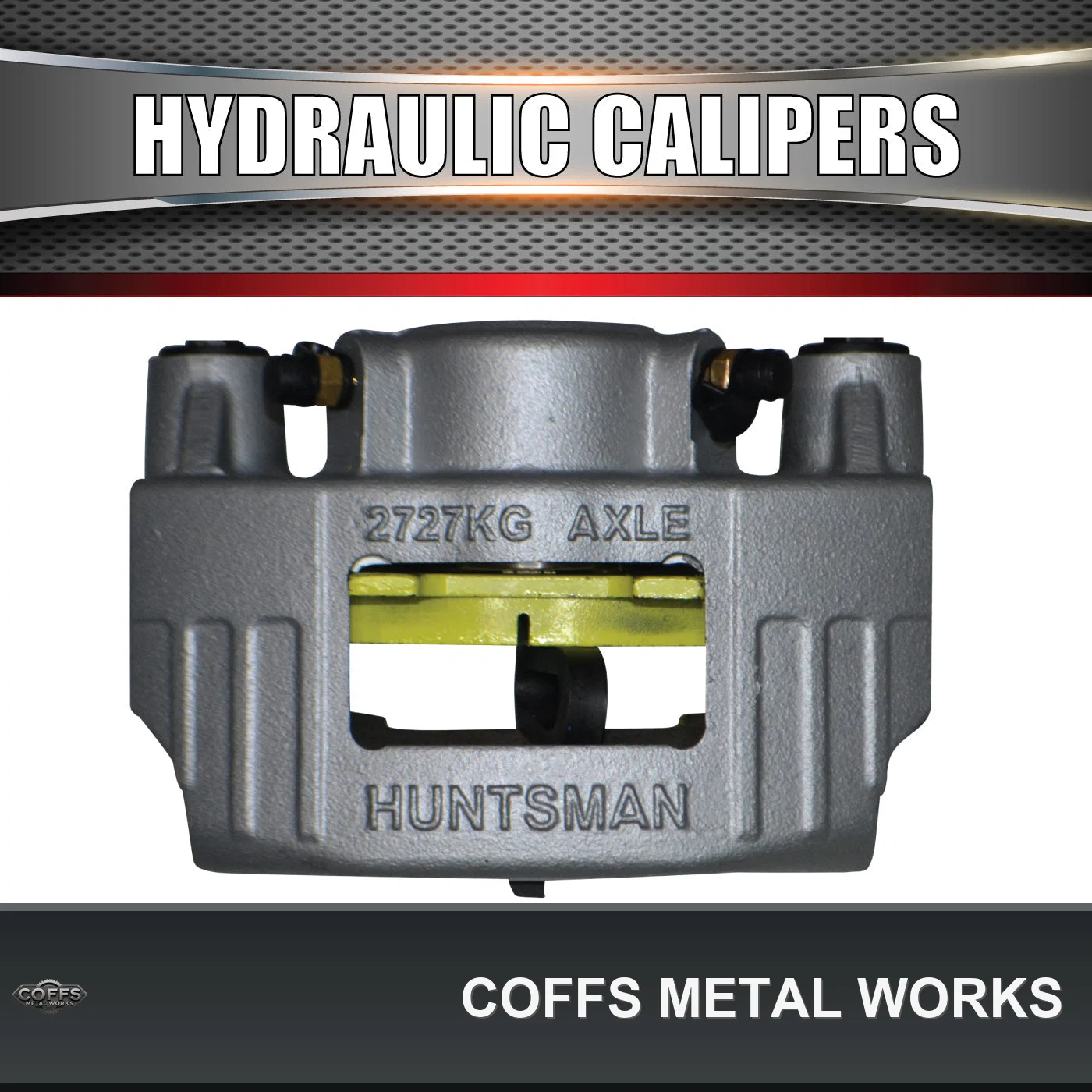

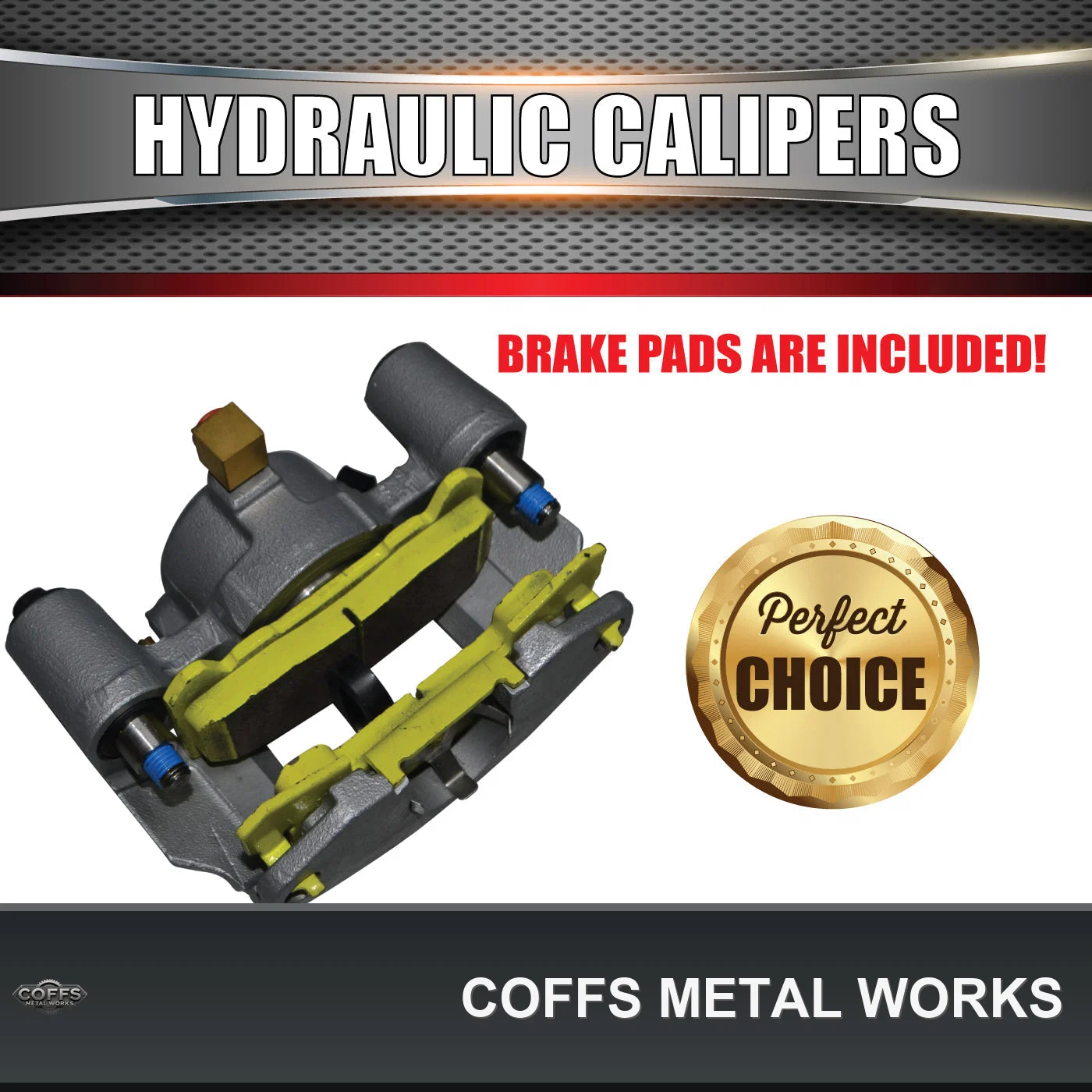

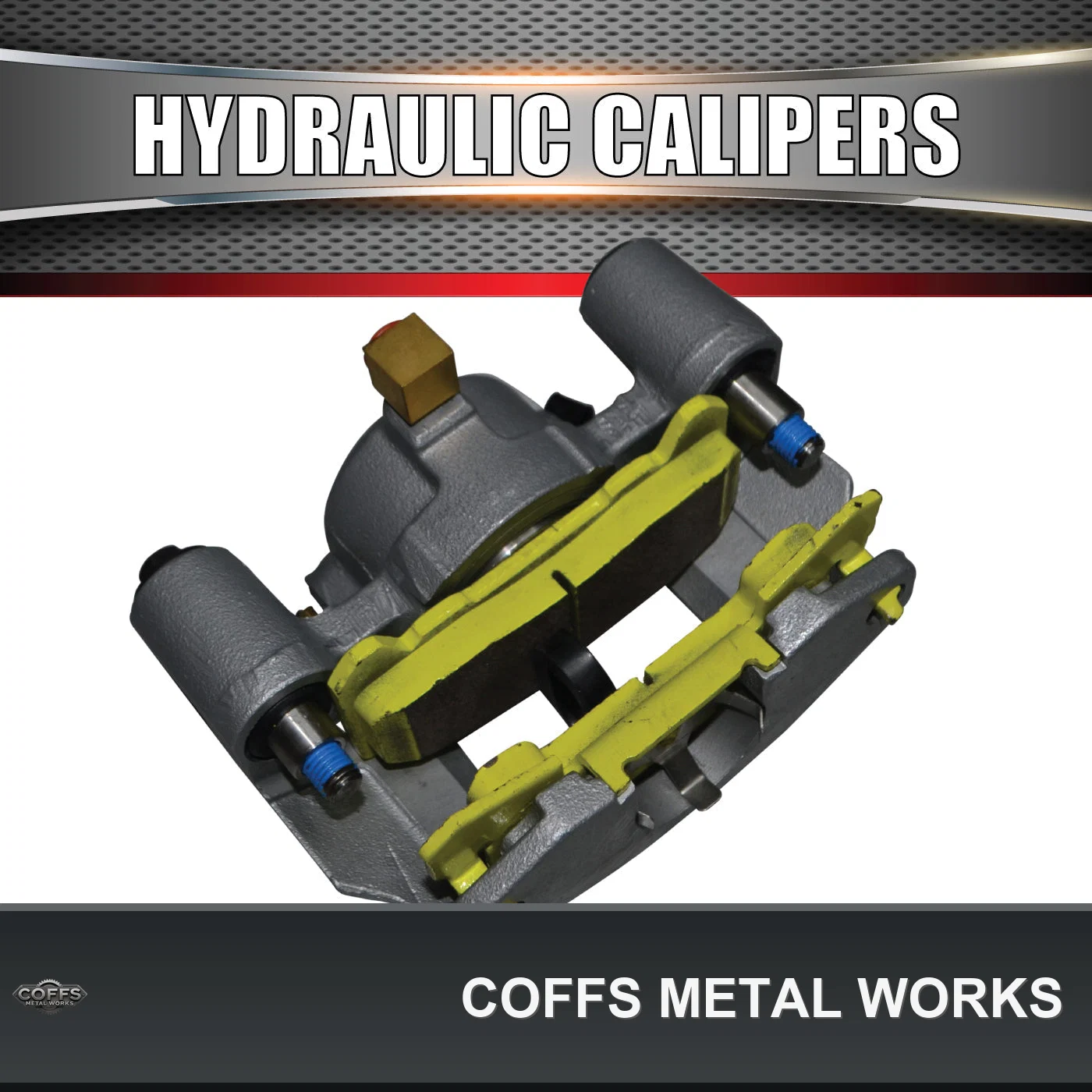

2X DACROMET STEEL DISC BRAKE CALIPER 2727KG MAX WITH BRAKE PADS

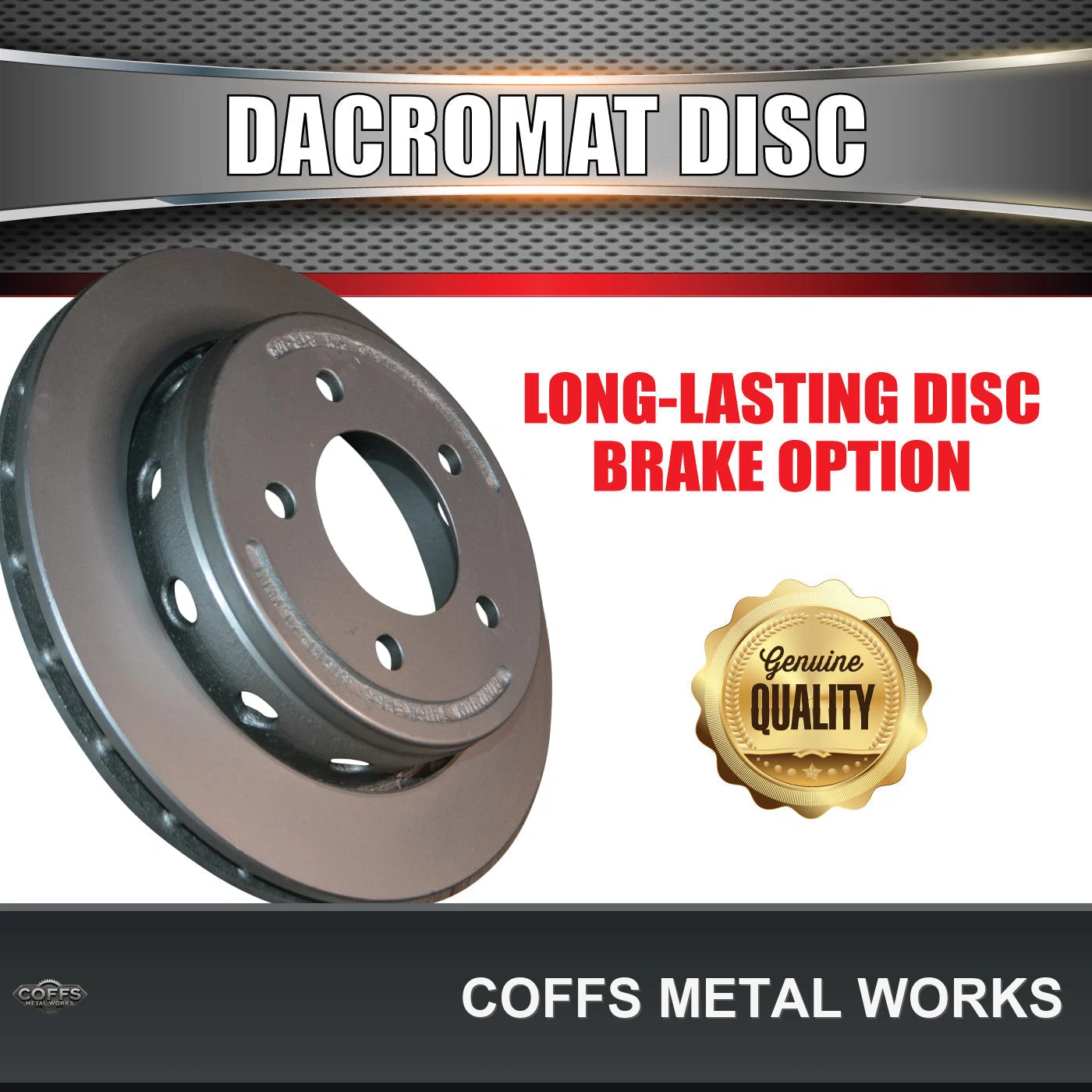

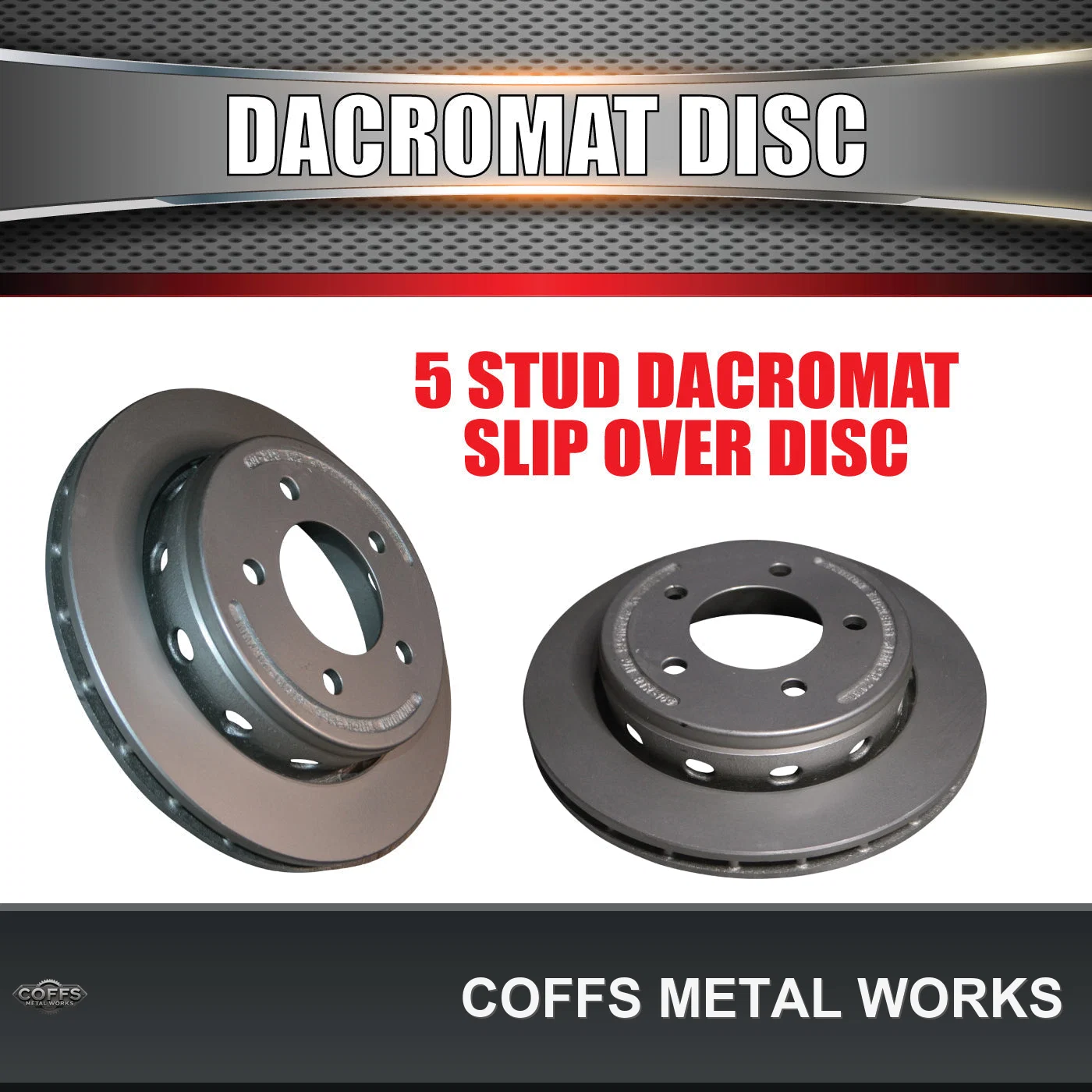

2X STEEL VENTILATED 12"SLIP OVER ROTOR 5 or 6 LUG DISCS
2X 12" SLIP OVER DISC MOUNTS (AVAILABLE IN 50MM SQUARE CUTOUT. CAN BE USED ON 45MM AXLE WHEN SPACED)
2X 2000KG LANDCRUISER PATTERN DACROMET LAZY HUBS
2X 2000KG COMPLETE BEARING KITS WITH RUBBER MARINE SEALS
STUD PATTERNS AVAILABLE
6 STUD LANDCRUISER, 6/139.7 PCD, 1/2" STUDS AND NUTS
5 STUD LANCRUISER, 5/150 PCD, 9/16" STUDS AND NUTS
BEARING COMBINATIONS AVAILABLE
30210 INNER AND 15123 OUTER

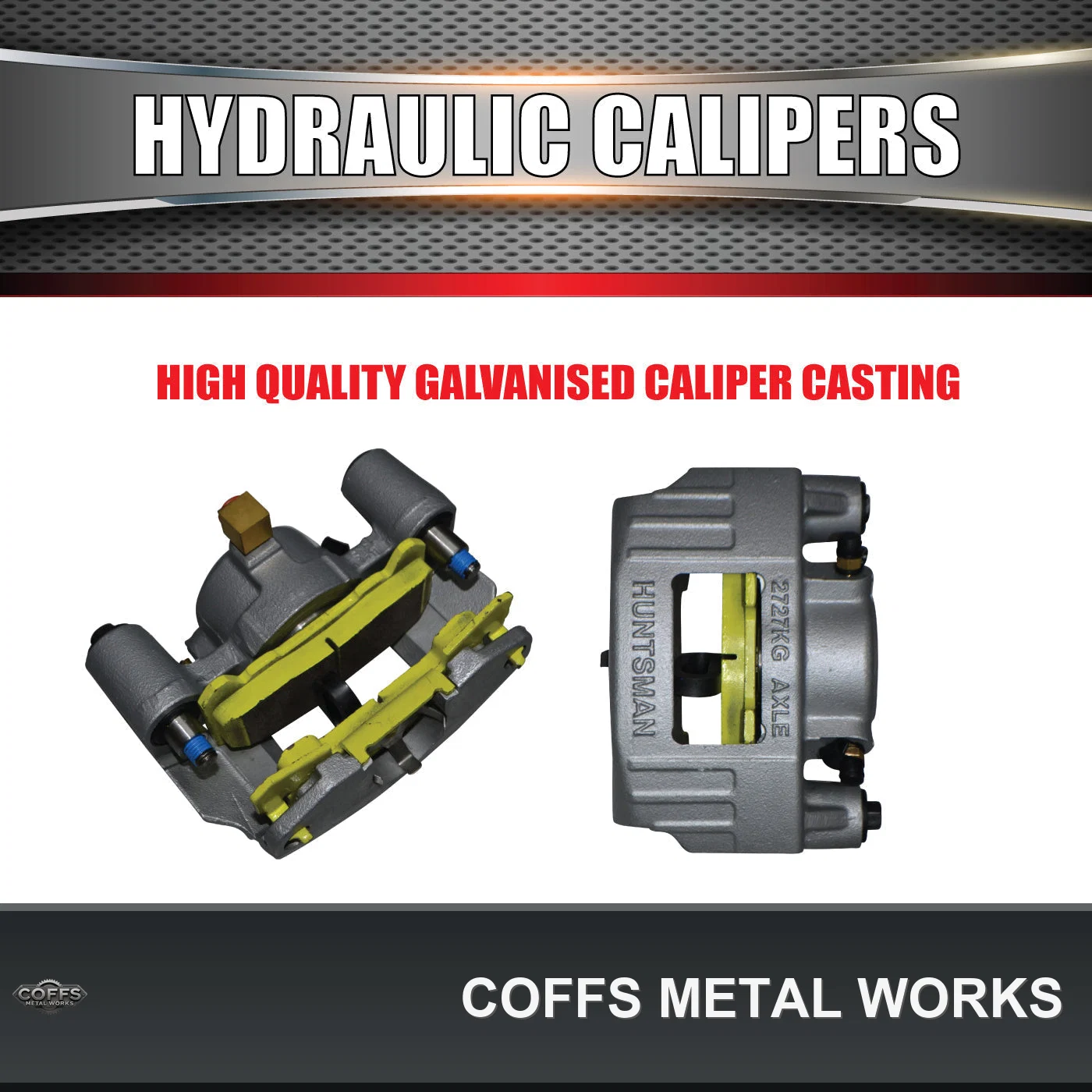

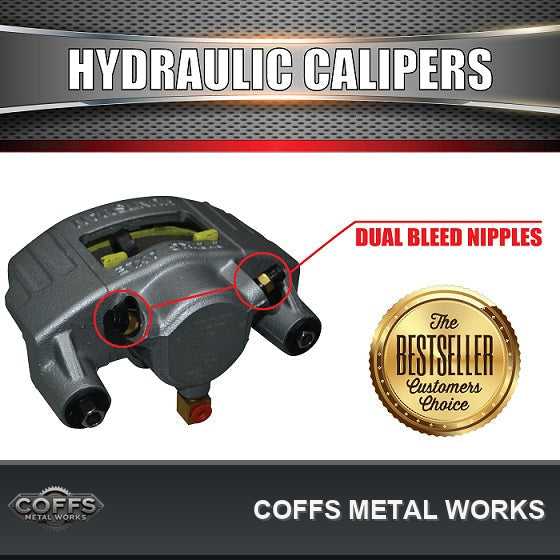

DACROMET CALIPERS

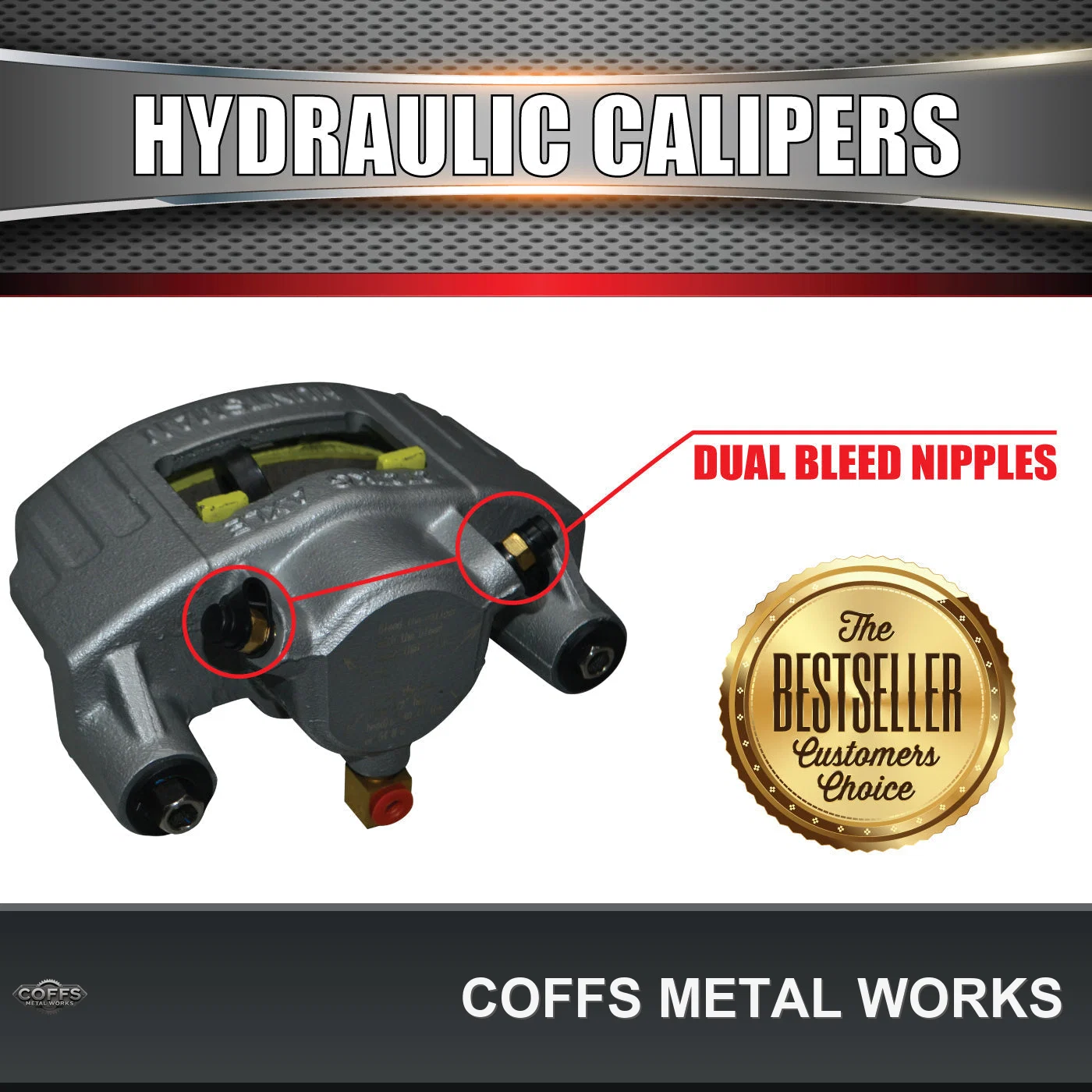

DUAL BLEEDER NIPPLES
CERAMIC BACKING PLATES
STAINLESS STEEL BOLT PINS
STAINLESS STEEL SLEEVES
HOLE CENTRES: 147MM
USED ON 10", 11" AND 12" DISCS
SUIT APPROX 23MM THICK DISCS

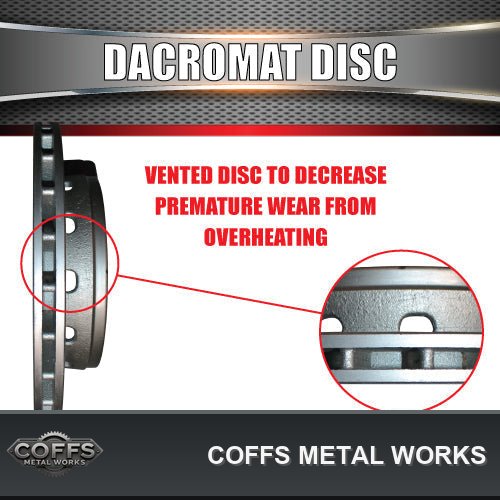

12" VENTILATED DISCS
DACROMET FINISH
PCD: 5/150 OR 6/139.7
DISC THICKNESS: 23.6mm
These will replace Kodiak and Deemaxx brand
DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
