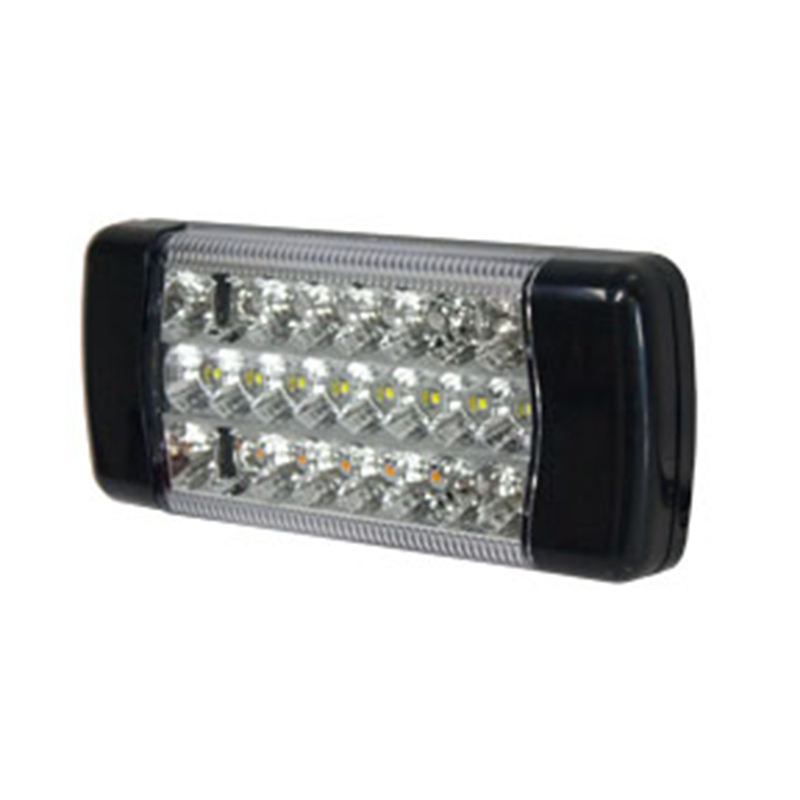

220 Series LED Combo Lamp - Stop / Tail / Indicator / Reverse

220 Series LED Combo Lamp - Stop / Tail / Indicator / Reverse

Regular price $167.95 AUD
Regular price Sale price $167.95 AUD
Sale Sold out
Quantity

Description

The CRL220LED series is a multifunction rear combination lamp featuring advanced LED optical free-form reflector technology to achieve a highly styled robust lamp that can be customized to match modern vehicle and trailer designs. The CRL220LED series is made for heavy-duty use and includes a high-impact polycarbonate lens and strong ABS Base. ADR-compliant for stop, rear position, direction indicator and reverse in a single compact package, the CRL220 series uses SmartClip™ end covers which offer upgradable options. This feature allows for custom options including colored end clips, integration clips that combine two or three lamps as one, and end reflectors for a fully compliant rear lighting solution. Suited to OEM and commercial applications.

Features

  • Free-form optics
  • High-reliability design
  • Innovative end clip upgrades
  • Easy customizing for specific applications
  • Fully ADR compliant

Specifications

Voltage: 9-33V
Power: Stop:3W Rear:0.4W Indicator:3W Reverse:2.5W
Lens: Polycarbonate
Mounting: Base mount with Smart Clip™ covers
Environmental: IP67
CTA:
CRL220 CTA-060795
CRL220R CTA-060800
CRN Pending

Parts List

CMW-CRL220LED 220 Series Combination LED 9-33V Stop / Tail / Indicator 0.5M Box
CMW-CRL220LEDB 220 Series Combination LED 9-33V Stop / Tail / Indicator 0.5M Blister
CMW-CRL220RLED 220 Series Combination LED 9-33V Stop / Tail / Indicator / Reverse 0.5M Box
CMW-CRL220RLEDB 220 Series Combination LED 9-33V Stop / Tail / Indicator / Reverse 0.5M Blister
