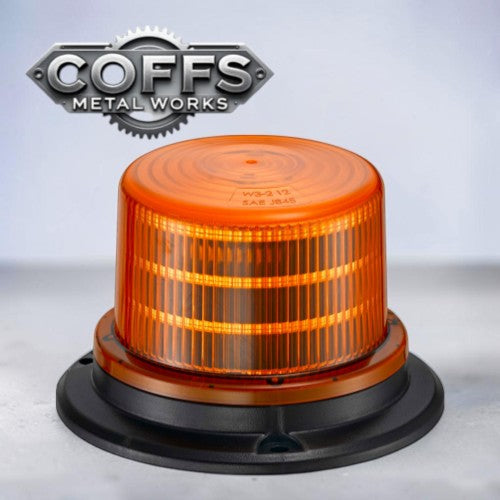

250 Series Magnetic Mount LED Beacon
250 Series Magnetic Mount LED Beacon
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Product Description
Description
The BE200 Series LED Beacons are designed as direct replacement for existing Xenon warning lights, with a much lower amp draw and lower power consumption. Fully ECE / SAE J845 Class 3, these beacons are ideal for emergency, construction and motorists, police, fire and EMS personnel as well as marine applications.
Features
- • E marked and ECC R10 EMI compliant
- • Stud base or magnetic base options
- • Low current draw
- • Adjustable flash patterns
- • IP67 weatherproof protection rating and fully sealed
- • 360deg light distribution
Specifications
Specifications
| Voltage | 10-30V | |
| Power: |
Peak: 10W AVG: 6W |
|
| Lens: | Polycarbonate | |
| Mounting | Stud or Magnetic | |
| Environmental: | IP67 | |
|
BE200 Flash Pattern: |
||
| NO. | PATTERN | FLASH PER MIN |
| 1 | Half | 120 |
| 2 / 3 | Rotate 1 | 150 |
| 4 / 5 | Rotate 2 | 146 |
| 6 | 6 Times | 82 |
| 7 | Triple 1 | 47 |
| 8 | 7 Times | 56 |
| 9 | Triple 2 | 111 |
| 10 | Single | 165 |
|
BE250 Flash Pattern: |
||
| NO. | PATTERN | FLASH PER MIN |
| 1 | Single | 150 |
| 2 | Quint | 63 |
| 3 | Rotate | 188 |
Parts List |
Compliance |
|
| BE200-ST | Stud Mount (130x53mm) |
Emarked (ECE R65 Class 3) ECE R10 (EMI Compliant) |
| BE200-MG | Magnetic Mount (130x53mm) | |
| BE250-ST | Stud Mount (140x96mm) |
Emarked (ECE R65 Class 2) ECE R10 (EMI Compliant) |

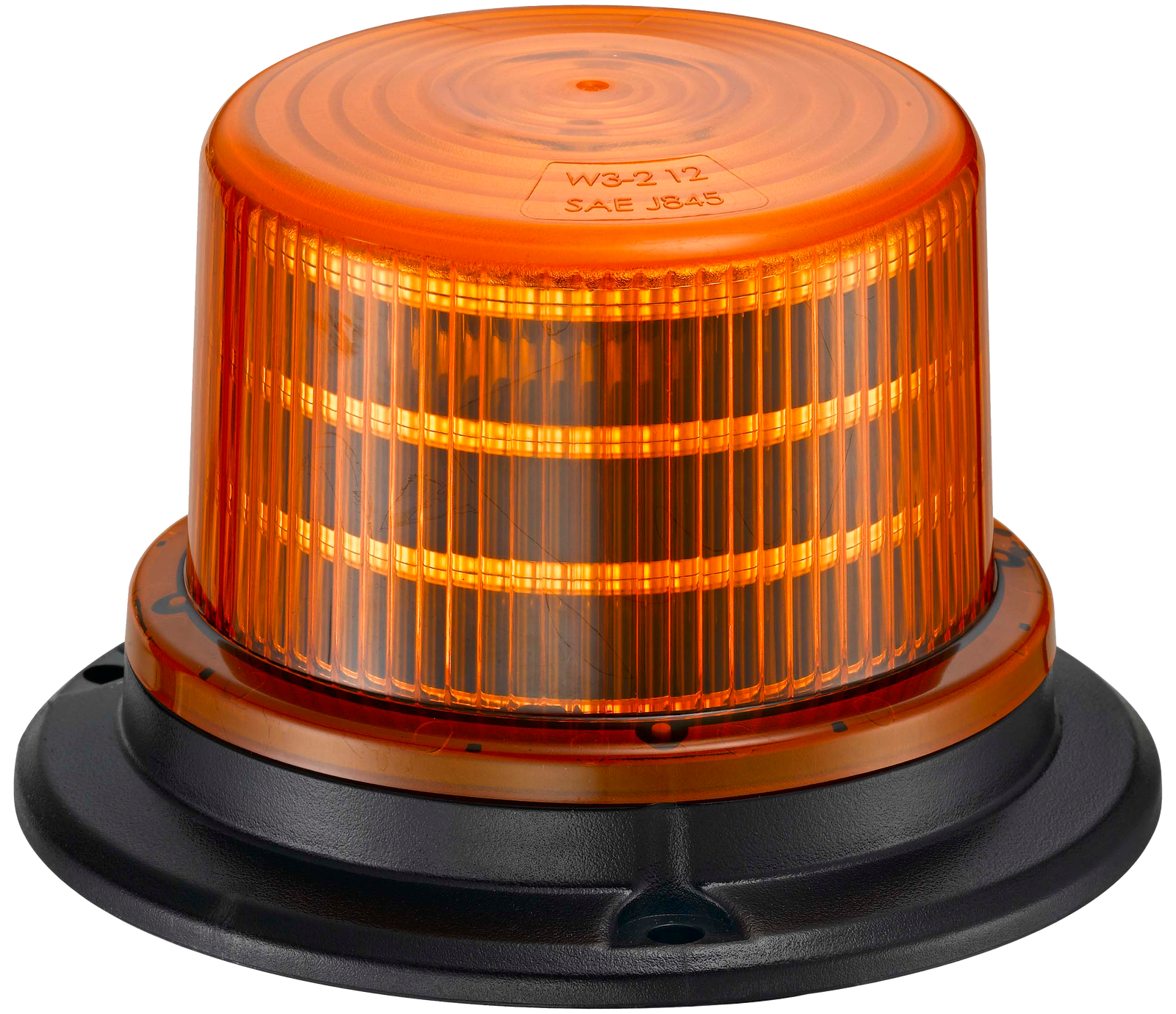

| BE250-MG | Magnetic Mount (140x96mm) |
