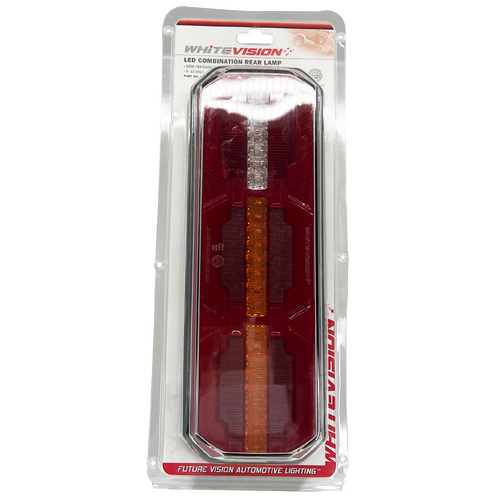

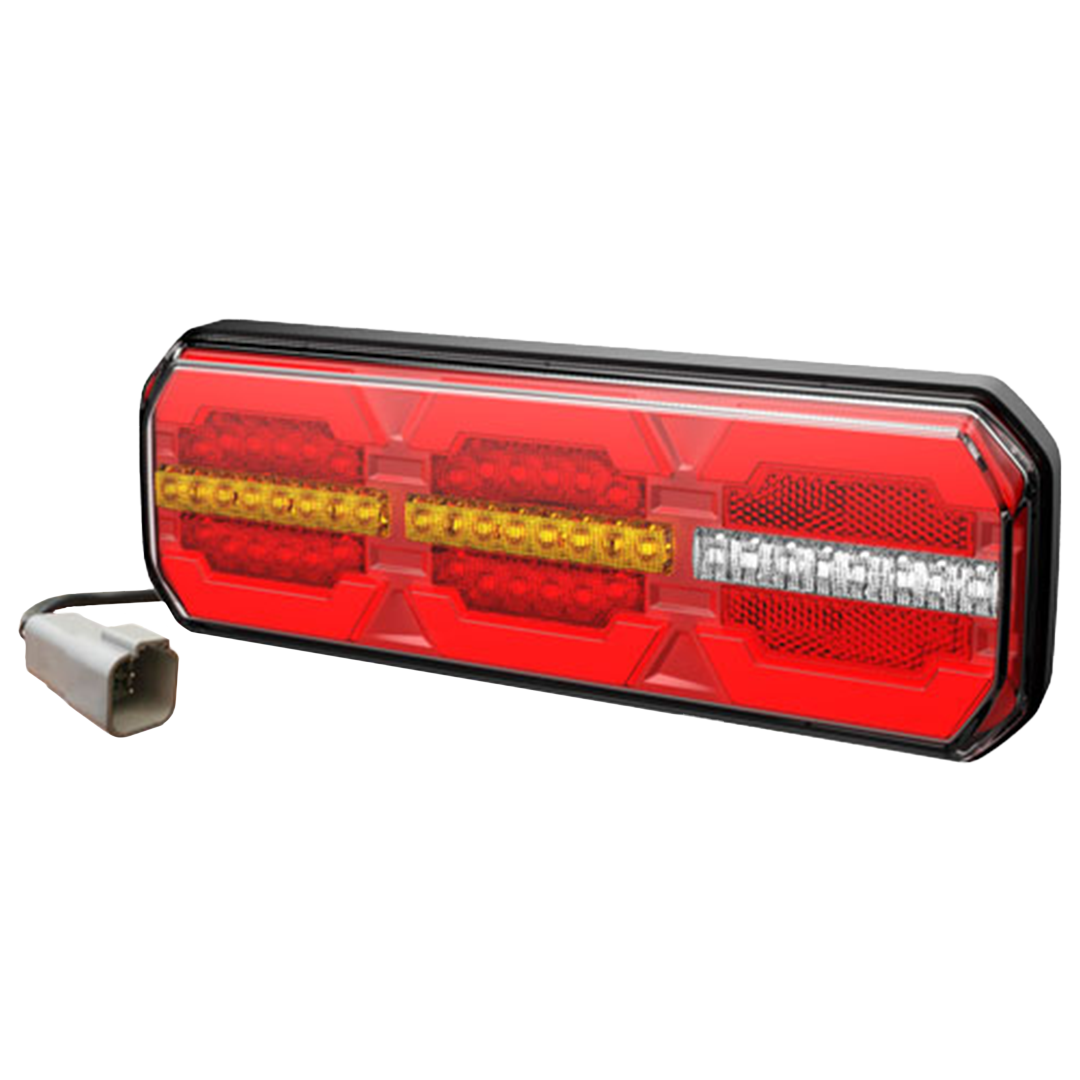

285 Series LED Combo Lamp - Stop / Tail / Running Indicator / Reverse with Deutsch

Name: 285 Series LED Combo Lamp - Stop / Tail / Running Indicator / Reverse with Deutsch
Brand: Coffs Metal Works
SKU: CMW-CRL285RLEDDTB
Price: 188.50 AUD
Availability: InStock

$188.50 AUD

Sale Sold out

Description

The new CRL285 series is the next generation in multifunction rear combination signal lamps.Delivering highly styled optics and unique lens design, this series provides a fully compliant rear lighting solution for stop, diffused rear position, sequential indicator, reverse and reflector functions.Constructed with a polycarbonate lens and heavy duty smart clip base with multiple mounting points, the CRL285 series is designed for high reliability and performance. Suited to OEM and commercial vehicle applications.

Features

All in one solution for rear lighting
Highly styled, modern design
Diffused rear position•
Sequential indicator
Heavy duty Smart Clip™ base
Fully ADR compliant

Specifications

Applications	•Trucks •Rigid Bodies •Buses & Coaches •Utes •Custom Builds
Functions	Stop / Diffused Rear Position / Running Indicator / Reverse / Reflector
Voltage	9-33V DC VarivoltÆ
Wattage	Stop:3.5W Rear Position:2.5W Indicator:2.6W Reverse:2.3W
Mount	Front or Rear Stud Mount
Materials	Polycarbonate Lens & Base
Environmental	IP67 Hermetically Sealed
Cable Length	0.5M Standard
Dimensions	283 x 100 x 33mm
ADR Compliance	Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00, Rear Retro Reflector:47/00
CRN	Pending

Parts List

CMW-CRL285LED	285 Series Stop / Diffused Tail / Sequential Indicator / Reflector - BOX
CMW-CRL285LEDB	285 Series Stop / Diffused Tail / Sequential Indicator / Reflector - BLISTER
CMW-CCRL285RLED	285 Series Stop / Diffused Tail / Sequential Indicator / Reverse / Reflector - BOX
CMW-CCRL285RLEDB	285 Series Stop / Diffused Tail / Sequential Indicator / Reverse / Reflector - BLISTER

Download Specifications
