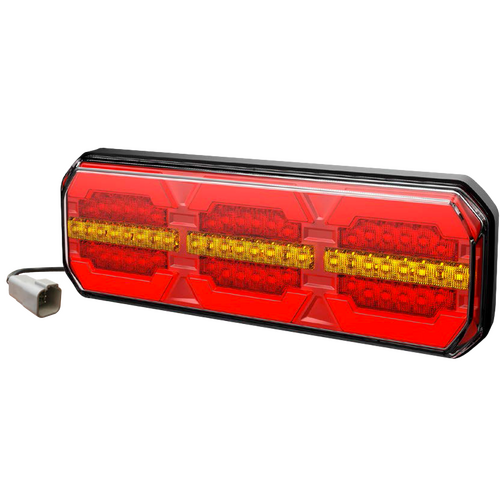

285 Series LED Combo Lamp - Stop / Tail / Running Indicator with Deutsch

285 Series LED Combo Lamp - Stop / Tail / Running Indicator with Deutsch

$181.50 AUD
$181.50 AUD
Sale Sold out
Shipping calculated at checkout.

Description

The new CRL285 series is the next generation in multifunction rear combination signal lamps.Delivering highly styled optics and unique lens design, this series provides a fully compliant rear lighting solution for stop, diffused rear position, sequential indicator, reverse and reflector functions.Constructed with a polycarbonate lens and heavy duty smart clip base with multiple mounting points, the CRL285 series is designed for high reliability and performance. Suited to OEM and commercial vehicle applications.

Features

  • All in one solution for rear lighting
  • Highly styled, modern design
  • Diffused rear position•
  • Sequential indicator
  • Heavy duty Smart Clip™ base
  • Fully ADR compliant

Specifications

Applications •Trucks •Rigid Bodies •Buses & Coaches •Utes •Custom Builds
Functions Stop / Diffused Rear Position / Running Indicator / Reverse / Reflector
Voltage 9-33V DC VarivoltÆ
Wattage Stop:3.5W Rear Position:2.5W Indicator:2.6W Reverse:2.3W
Mount Front or Rear Stud Mount
Materials Polycarbonate Lens & Base
Environmental IP67 Hermetically Sealed
Cable Length 0.5M Standard
Dimensions 283 x 100 x 33mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00, Rear Retro Reflector:47/00
CRN Pending

Parts List

CMW-CRL285LED 285 Series Stop / Diffused Tail / Sequential Indicator / Reflector - BOX
CMW-CRL285LEDB 285 Series Stop / Diffused Tail / Sequential Indicator / Reflector - BLISTER
CMW-CCRL285RLED 285 Series Stop / Diffused Tail / Sequential Indicator / Reverse / Reflector - BOX
CMW-CCRL285RLEDB 285 Series Stop / Diffused Tail / Sequential Indicator / Reverse / Reflector - BLISTER
