Coffs Metal Works

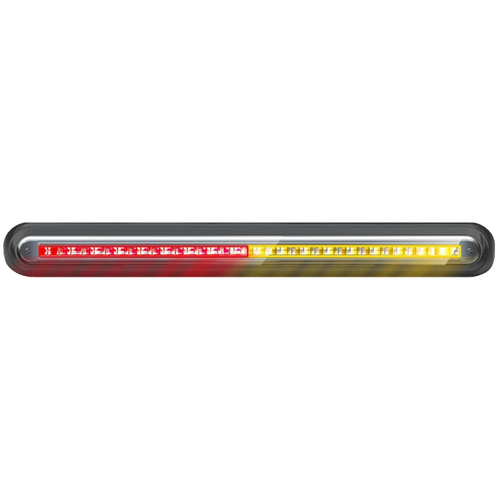

360 Series LED Slimline Stop / Tail / Indicator Lamp with Black Base
360 Series LED Slimline Stop / Tail / Indicator Lamp with Black Base
Regular price
$42.50 AUD
Regular price
Sale price
$42.50 AUD
Quantity
Couldn't load pickup availability
Description
Designed with a smart and modern slimline look, the 360 Series are a robust multifunction lamps that can be mounted in areas where space is limited. Featured 10 - 33 Varivolt® DC integrated circuitry technology, incorporating stop, tail, indicator and reverse functions providing an all in one rear signal solution. The Series is fully ADR compliant, making it the complete package, perfectly suited to OEM and commercial vehicle applications.
Features
- Slimline design - multifunctions
- 10 - 30 Varivolt
- Surface mounting
- Available in Black or Chrome Base
- Fully ADR compliant
Specifications
| Voltage: | 10-30 V |
| Power: | Stop: 3W / Tail: 0.3W / Indicator: 1.5W / Reverse: 1.5W |
| Housing: | Polycarbonate |
| Mounting: | Surface mount, screw on |
| Environmental: | IP67 |
| CTA: | |
| RL360DLED | CTA-060899 |
| RL360SLED | CTA-060898 |
| RL360RLEDB | CTA-060895 |
| RL360SDLEDB | CTA-060894 |
| CRL360LEDB | CTA-060893 |
| CRL360RLEDB | CTA-060896 |
Parts List
| CMW-BLACK-BASE | |
| CMW-RL360DLEDB | Indicator |
| CMW-RL360SLEDB | Stop / Tail |
| CMW-RL360RLEDB | Reverse |
| CMW-RL360SDLEDB | Stop / Tail / DI |
| CMW-CRL360LEDB | Combo Stop/Tail/DI |
| CMW-CRL360RLEDB | Combo Stop/Tail/DI/Rev |
| CMW-CHROME-BASE | |
| CMW-RL360DLEDC | Indicator |
| CMW-RL360SLEDC | Stop / Tail |
| CMW-RL360RLEDC | Reverse |
| CMW-RL360SDLEDC | Stop / Tail / DI |
| CMW-CRL360LEDC | Combo Stop/Tail/DI |
| CMW-CRL360RLEDC | Combo Stop/Tail/DI/Rev |
