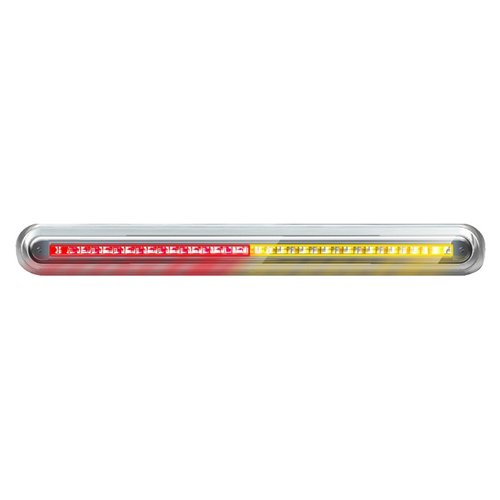

360 Series LED Slimline Stop / Tail / Indicator Lamp with Chrome Base

360 Series LED Slimline Stop / Tail / Indicator Lamp with Chrome Base

$46.95 AUD
$46.95 AUD
Sale Sold out

Description

Designed with a smart and modern slimline look, the 360 Series is a robust multifunction lamps that can be mounted in areas where space is limited. Featured 10-33 VarivoltÆ DC integrated circuitry technology, incorporating stop, tail, indicator and reverse functions providing an all in one rear signal solution.The Series is fully ADR compliant, making it the complete package, perfectly suited to OEM and commercial vehicle applications.

Features

  • Slim line design - multifunctions
  • 10 - 30 Varivolt
  • Surface screw mounting
  • Fully ADR compliant

Specifications

Applications •Trucks •Rigid Bodies •Caravans •Trailers •Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reverse
Voltage 9-33V DC VarivoltÆ
Wattage Indicator: 2.5W Stop: 3W Tail: 0.5W Reverse: 2.5W
Mounting Surface mount, screw on
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 400x82x17mm
ADR Compliance Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Retro Reflector:47/00
CRN Pending

Parts List

CMW-CRL360LEDB 360 Series SlimLine Combination Lamp Stop / Tail / Indicator 10-30V - BLACK
CMW-CRL360RLEDB 360 Series SlimLine Combination Lamp Stop / Tail / Indicator / Reverse 10-30V - BLACK
CMW-CRL360LEDC 360 Series SlimLine Combination Lamp Stop / Tail / Indicator 10-30V - CHROME
CMW-CRL360RLEDC 360 Series SlimLine Combination Lamp Stop / Tail / Indicator / Reverse 10-30V - CHROME
CMW-RL360SDLEDB 360 Series SlimLine Combination Stop / Tail / Indicator Lamp 10-30V Clear Lens - BLACK
CMW-RL360SDLEDC 360 Series SlimLine Combination Stop/Tail/Indicator Lamp 10-30V Clear Lens - CHROME
