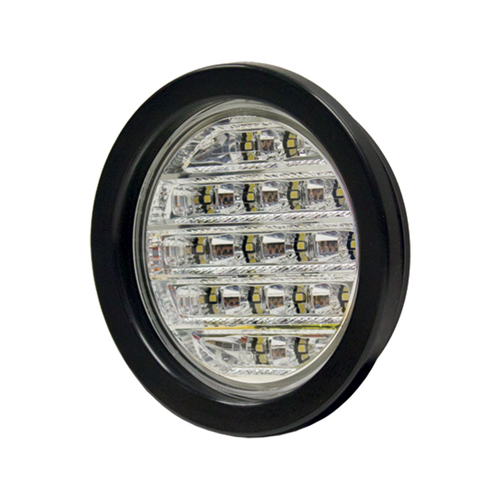

400 Series LED Clear Lens Stop Lamp with Grommet

400 Series LED Clear Lens Stop Lamp with Grommet

$49.50 AUD
$49.50 AUD
Sale Sold out

Description

The new CRL350 series is the next advancement in automotive LED lighting technology. Featuring high visibility optics and modular design, the CRL350 series can be customised to suit stop / rear position / direction indicator and reverse functions as required. Constructed with a polycarbonate lens, heavy duty ABS base, and front mounting points, makes it a very versatile lamp that would suit almost any rear signalling application.

Features

  • Stop / Tail / DI / Revserse / Reflector
  • Heavy duty LED signal lamp
  • Front Mount
  • Free form optic design
  • ADR and CTA approved

Specifications

Voltage: 9-33V Varivolt
Power: Stop: 2.4W Tail: 0.5W Indicator: 2W Reverse: 2W
Lumen:: Front Screw Mount
Lens: Polycarbonate
Housing: ABS
Mounting: Rubber Insert
Environmental: IP68
CTA:
RL400RG CTA-060508
RL400DG CTA-060509
RL400SG CTA-060514
RL400SCG CTA-060515
RL400DCG CTA-060516
WV400R CTA-060503

Parts List

CMW-COMBINATION-LAMPS
CMW-BLACK-BASE MODULE CONTENTS
CMW-CRL350LED Combo Stop/ Tail/ Flasher · 2 x RL400SG 1 x RL400DG
CMW-CRL350RLED Combo Stop/ Tail/ Flasher/ Reverse · 1 x RL400SG 1 x RL400DG 1 x RL400RG
CMW-CRL350CLEDB Clear Lens Combo Stop/ Tail/ Flasher · 2 x RL400SCG 1x RL400DCG
CMW-CHROME CHROME
CMW-CRL350LEDC Combo Stop/ Tail/ Flasher · 2 x RL400SG 1 x RL400DG
CMW-CRL350RLEDC Combo Stop/ Tail/ Flasher/ Reverse · 1 x RL400SG 1 x RL400DG 1 x RL400RG
CMW-CRL350CLEDC Clear Lens Combo Stop/ Tail/ Flasher · 2 x RL400SCG 1x RL400DCG
CMW-MODULAR-INSERTS
CMW-RL400DCG Rear FLASHER Lamp: CLEAR LENS · RL400DG · Rear FLASHER Lamp: AMBER LENS
CMW-RL400SCG Rear STOP / TAIL Lamp: CLEAR LENS · RL400SG · Rear STOP / TAIL Lamp: RED LENS
CMW-RL400RG Rear REVERSE Lamp · WV400R · Red Reflector ring
CMW-WV400G Spare Rubber Grommet Suite

Download Specifications
