Coffs Metal Works

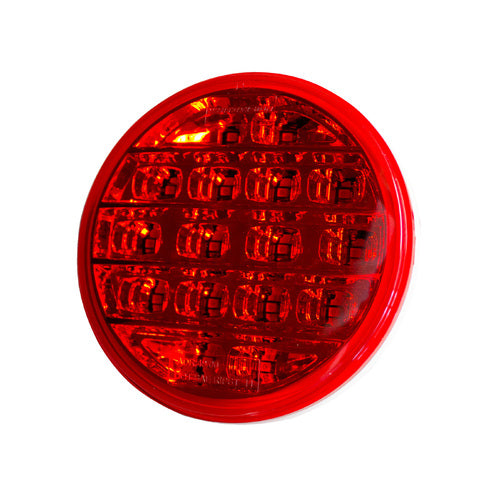

400 Series LED Red Lens Stop Lamp
400 Series LED Red Lens Stop Lamp
Regular price
$45.50 AUD
Regular price
Sale price
$45.50 AUD
Quantity
Couldn't load pickup availability
Description
The RL400 series is a robust LED signal lamp designed specifically for heavy duty applications where high reliability is required. Featuring free form optics and styled lens design. The RL400 series is installed via rubber mounting insert for maximum protection against constant vibration environments. ADR compliant for stop or rear position indication, these lamps are suitable for direct replacement or older style lamps of the same style. Suited to OEM and commercial vehicle applications
Features
- Heavy duty LED signal lamp
- Rubber mount for high reliability
- Free form optic design
- Retrofits similar style lamps
- Fully ADR compliant
Specifications
| Applications | •Trucks •Rigid Bodies •Buses & Coaches •Heavy Trailers •Cars •Classic Cars •Custom Builds |
| Functions | Stop/Rear Position |
| Voltage | 9-33V DC VarivoltÆ |
| Wattage | Stop:2.4W, Rear:0.5W |
| Mounting | Rubber grommet insert |
| Materials | High impact acrylic lens, ABS Body |
| Environmental | IP68 Hermetically Sealed |
| Cable Length | 0.5M twin core, sheathed |
| Dimensions | 110mm insert diameter, 140mm overall diameter |
| ADR Compliance | Stop/Rear:49/00 |
| CRN | 44915 (Stop) / 47527 (Rear) |
| Certification | ADR Approved |
Parts List
| CMW-RL400SG | 400 Series Rear LED 9-33V Stop/Rear (Red Lens) 0.5M |
| CMW-RL400SCG | 400 Series Rear LED 9-33V Stop / Tail (Clear Lens) 0.5M |
