Coffs Metal Works

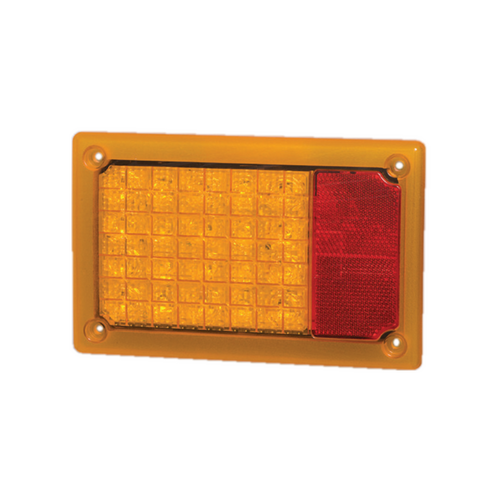

500 Series LED Slimline Flasher / Reflector Insert Lamp
500 Series LED Slimline Flasher / Reflector Insert Lamp
Regular price
$176.95 AUD
Regular price
Sale price
$176.95 AUD
Quantity
Couldn't load pickup availability
Description
With ultra heavy duty construction the Perei Jumbo range of combination lamps offer ultimate quality, durability and reliability. Designed specifically for heavy duty applications these lamps feature high heat and enhanced chemical protection to perform in harsh operating conditions The twin module features a high strength ABS base with one stop / rear position and one rear direction indicator module with integrated reflectors. Suited to OE and heavy vehicle applications.
Specifications
| Applications | •Trucks •Heavy Trailers •Trailers •RV •Bus & Coach | ||
| Functions | Stop / Rear Position / Rear Direction Indicator / Rear Reflector | ||
| Voltage | 9-33V DC VarivoltÆ | ||
| Wattage | Stop:6.5W@12V Rear Position:1.5W@12V Rear Direction 6.82W@12V | ||
| Mounting | Surface Mount, Modular System | ||
| Materials | Lens: Polycarbonate with ECP Base: Heavy Duty ABS | ||
| Environmental | IP67 Hermetically Sealed | ||
| Cable Length | 0.2M Per Module | ||
| Dimensions | 405x133x60mm (53mm Slimline) | ||
| ADR Compliance | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Reflector:47/00 | ||
| CRN Certification | Functions | Standard Version | Slimline Verion |
| Directional Indicator | 28133 | 36723 | |
| Stop | 28135 | 36698 | |
| Read Position | 28136 | 36699 | |
| Reflex Reflector | 28134 | 28134 |
Parts List
| CMW-CRL502LED | Double Jumbo Stop / Rear Position / Indicator / Reflector 9-33V - Box |
| CMW-CRL502LEDS | Double Jumbo Stop / Rear Position / Indicator / Reflector 9-33V - Box(SLIMELINE) |
| CMW-REPLACEMENT-MODULES | |
| CMW-FL500LED | Jumbo Rear Direction Indicator / Reflector Module 9-33V - Box |
| CMW-FL500LEDS | Jumbo Rear Direction Indicator / Reflector Module 9-33V - Box(SLIMELINE) |
| CMW-SL500LED | Jumbo Stop / Rear Position / Reflector Module 9-33V - Box |
| CMW-SL500LEDS | Jumbo Stop / Rear Position / Reflector Module 9-33V - Box(SLIMELINE) |
| CMW-RV500LEDH | LED Lamp insert, 'Jumbo' type, Reverse (Horizontal Mount) |
| CMW-RV500LEDSH | LED Lamp insert, 'Jumbo' type, Reverse (Horizontal Mount) (SLIMELINE) |
