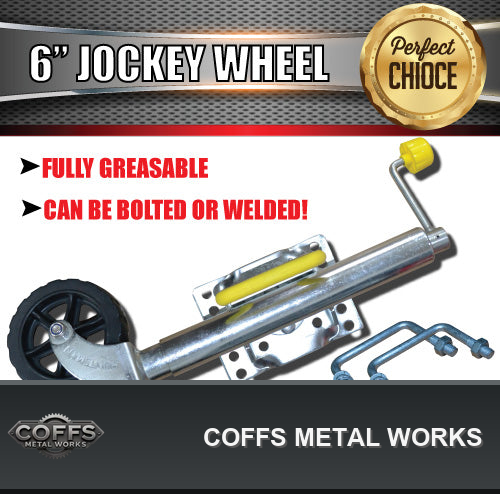

6" Trailer Caravan Swing Up Jockey Wheel & 100x50mm U bolts. 500Kg Ball Rating

HEAVY DUTY 6" JOCKEY WHEEL
HEAVY DUTY PLASTIC OFF ROAD STYLE MOLDED WHEEL

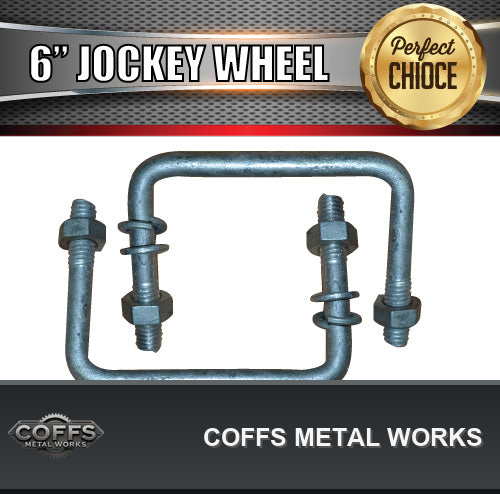

Comes with 2x U bolts to suit 100mm x 50mm Drawer Bar or A Frame

6" SOLID WHEEL SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED
RATED AT 500KG (BALL WEIGHT)

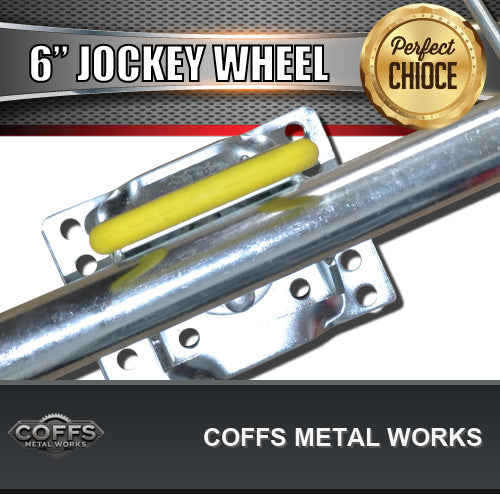

4 BOLT SWIVEL BRACKET (SUITED FOR 50MM, 75MM AND 100MM A FRAMES)
PLASTIC MOULDED HANDLE
5MM FORK
CAN BE WELDED OR SUPPLIED WITH U-BOLTS

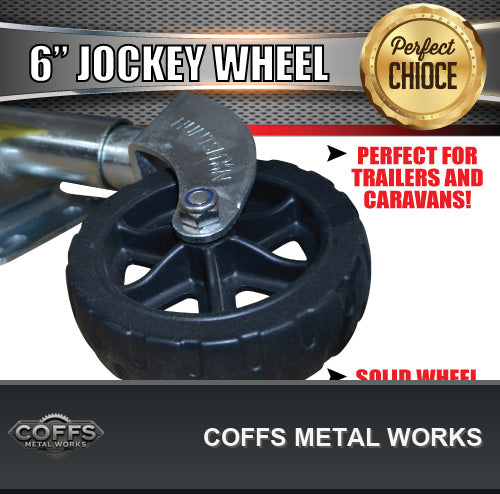

SOLID WHEELS

height from centre of bracket to bottom of tyre
fully closed 315mm
fully extended 570mm

Height from middle of bracket to top of handle: 215mm
Overall Length closed: 550mm
Travel: 255mm

FULLY GREASABLE

UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE Coffs Metal Works BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
