Coffs Metal Works

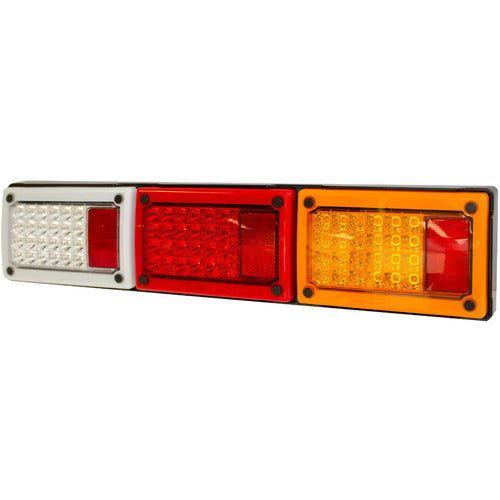

605 Series LED Combo Lamp - Stop / Tail / Indicator / Reverse
605 Series LED Combo Lamp - Stop / Tail / Indicator / Reverse
Regular price
$284.50 AUD
Regular price
Sale price
$284.50 AUD
Quantity
Couldn't load pickup availability
Description
The all new CRL605LED Series Jumbo LED lamps deliver quality, performance and durability for heavy duty applications. Featuring high visibility optics and modular design, the CRL605LED series can be customised to suit stop / rear position / direction indicator and reverse functions as required. Each module also incorporates an integrated reflector providing a complete compliant rear signalling solution. Constructed with ultra strong polycarbonate lenses with enhanced chemical protection, high reliability optics and toughened ABS base the CRL605LED series is designed to handle the toughest of conditions under constant operation. Suited to OEM and commercial vehicle applications.
Features
- Heavy duty rear Jumbo lamp
- Modular design with security caps
- Integrated reflectors
- Slimline profile
- Fully ADR compliant
Specifications
| Applications | •Trucks •Dangerous Goods •Rigid Bodies •Buses & Coaches •Trailers •Heavy Trailers•Custom Builds |
| Functions | Stop / Rear Position / Direction Indicator / Reflector |
| Voltage | 9-33V DC VarivoltÆ |
| Wattage | Stop:3W / Rear Position:0.4W Indicator:3W / Reverse:2.5W |
| Mounting | Rear Bolt Mount |
| Materials | Polycarbonate Lens ABS Body / Modular heavy duty ABS base |
| Environmental | IP67 Hermetically Sealed |
| Cable Length | 0.5M |
| Dimensions | 601x131x42mm |
| ADR Compliance | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse: 01/00, Rear Retro Reflector:47/00 |
| CRN | Stop - 48002 Tail - 48003 Direction - 48001 Reverse - 48061 Reflector - 48284 |
Parts List
| CMW-CRL205DLED | 205 Series H/Duty LED Jumbo 9-33V Single Indicator Module with BLK Base |
| CMW-CRL205SLED | 205 Series H/Duty LED Jumbo 9-33V Single Stop / Tail Module with BLK Base |
| CMW-CRL205RLED | 205 Series H/Duty LED Jumbo 9-33V Single Reverse Module with BLK Base |
| CMW-CRL605LED | 605 Series H/Duty LED Jumbo 9-33V Stop / Tail / Indicator Module, BLK Base |
| CMW-CRL605RLED | 605 Series H/Duty LED Jumbo 9-33V Stop / Tail / Indicator / Reverse, BLK Base |
| CMW-REPLACEMENT-MODULES | |
| CMW-RL195DLED | H/Duty LED Jumbo Series 9-33V Single Indicator Replacement Modules |
| CMW-RL195SLED | H/Duty LED Jumbo Series 9-33V Single Stop / Tail Replacement Module |
| CMW-RL195RLED | H/Duty LED Jumbo Series 9-33V Single Reverse Replacement Module |
