8" DROP OR RISE TOWBAR TONGUE BALL HITCH. SUIT HAYMAN REECE, ARB TJM.

Achieve the correct trailer height with this Heavy Duty 8" Drop or Rise Towbar Tongue, designed to provide greater flexibility when towing trailers, caravans, boats and other equipment. The reversible design allows the tongue to be installed in either the drop or rise position, helping you maintain a level trailer for improved stability, safer towing and reduced tyre wear.

Manufactured from heavy-duty steel with an extra-strength welded gusset between the tongue and receiver section, this towbar tongue is built to withstand demanding towing conditions. The durable black powder-coated finish provides excellent corrosion resistance and long-lasting protection against Australia's harsh outdoor environment.

Designed to suit standard 50mm × 50mm (2") receiver hitches and compatible with a standard 50mm tow ball (sold separately), this towbar tongue is suitable for many Hayman Reese, ARB, TJM and other compatible receiver-style towing systems. It is ideal for recreational, trade and general-purpose towing applications.

Features

• Heavy-duty reversible towbar tongue
• 8" drop or rise configuration
• Extra-strength welded gusset for added durability
• Durable black powder-coated finish
• Designed to suit standard 50mm tow balls
• Suits standard 50mm × 50mm (2") receiver hitches
• Compatible with Hayman Reese, ARB, TJM and similar receiver systems
• Ideal for trailers, caravans, boats and general towing applications

Specifications

Towbar Tongue

• Maximum Rating: 2,268kg (5,000lb)
• Receiver Size: 50mm × 50mm (2")

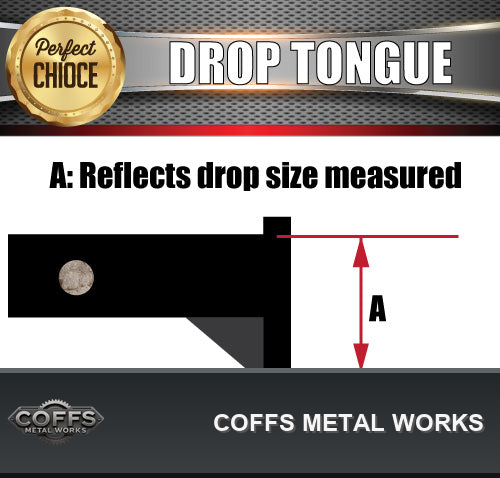

• Configuration: 8" Drop or Rise
• Tow Ball Size: Suits Standard 50mm Tow Ball
• Pin Hole Diameter: 17mm
• Tow Ball Hole Diameter: 25mm
• Receiver Section: 50.9mm × 50.9mm × 5mm Wall
• Tongue Dimensions: 64mm × 19mm
• Pin Hole to Tow Ball Centre: 210mm
• Pin Hole to Platform Weld: 115mm
• Pin Hole to End of Receiver Section: 65mm
• Finish: Black Powder Coat

Package Includes

• 1 × 8" Drop or Rise Towbar Tongue
