9" Trailer Caravan Mechanical Drum Brake + Coupling + Fitting Kit. koyo Bearings.

9" MECHANICAL DRUM BRAKE FULL KIT
WITH FULL COUPLING AND CABLE KIT
JAPANESE KOYO BEARINGS

Please note: This kit comes with no weld on brake mounts and is to replace brakes only


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)

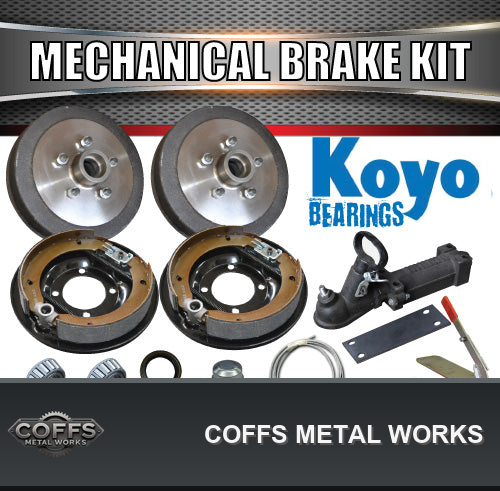

FULL KIT INCLUDES

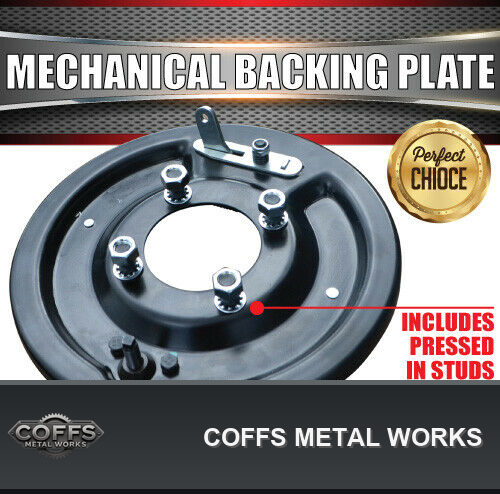

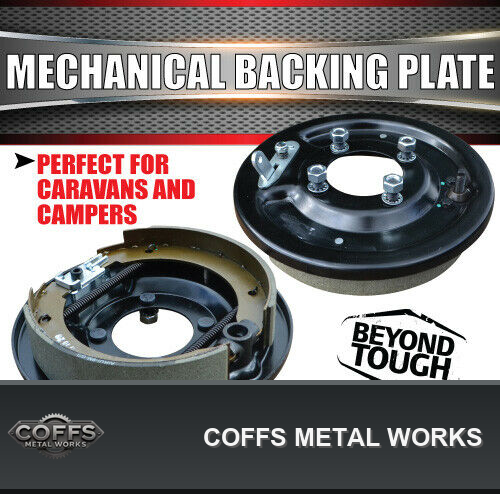

1X LEFT HAND 9" BRAKE MECHANICAL BACKING PLATE
1X RIGHT HAND 9" BRAKE MECHANICAL BACKING PLATE

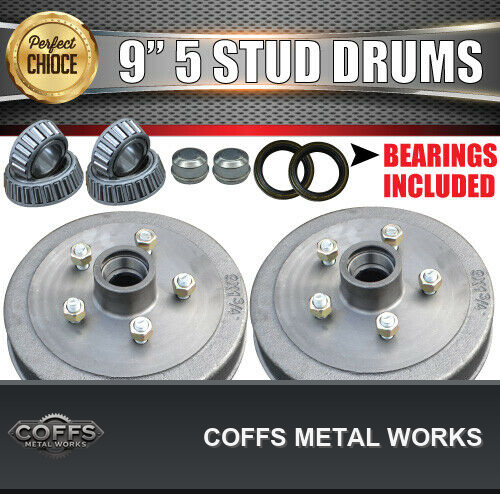

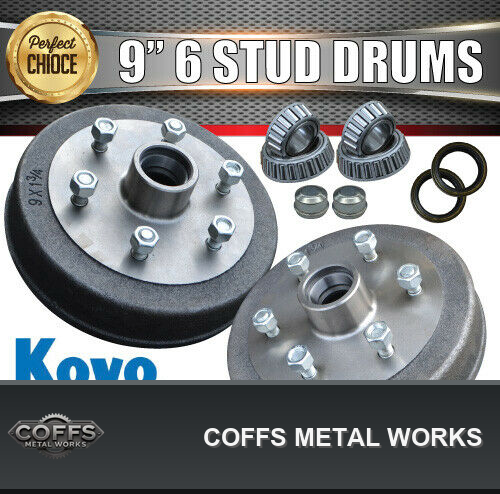

2X 9" S.G CASTING HUB DRUMS WITH CUPS INSERTED. COMES WITH WHEEL NUTS TO SUIT STUD PATTERN PROVIDED
2X JAPANESE KOYO LM OR SLIMLINE BEARING SETS. 2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X DUST SEALS, 2X DUST CAPS (bearing options below)

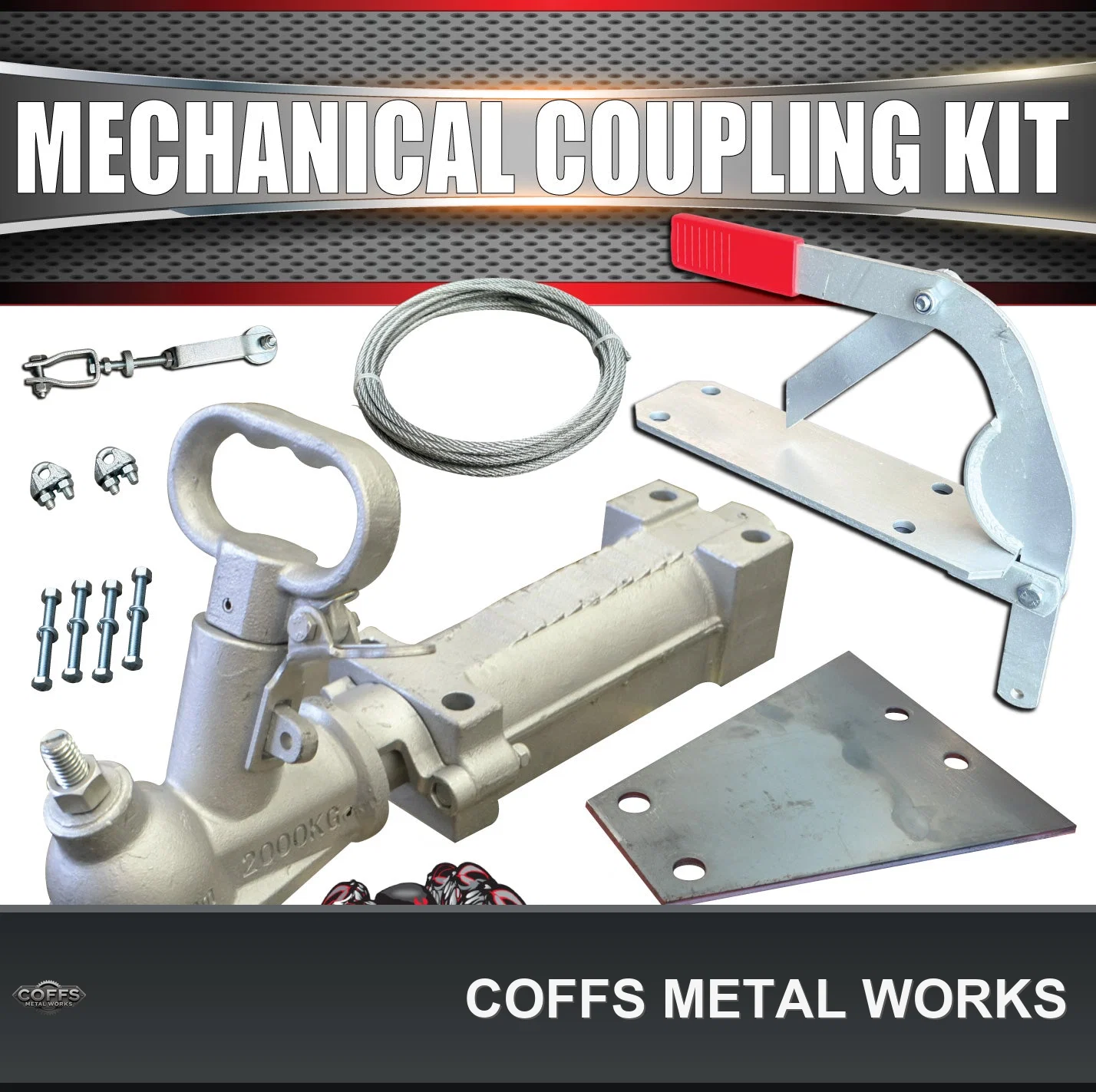

1X 2000KG 4 HOLE OVERRIDE 50mm BALL COUPLING

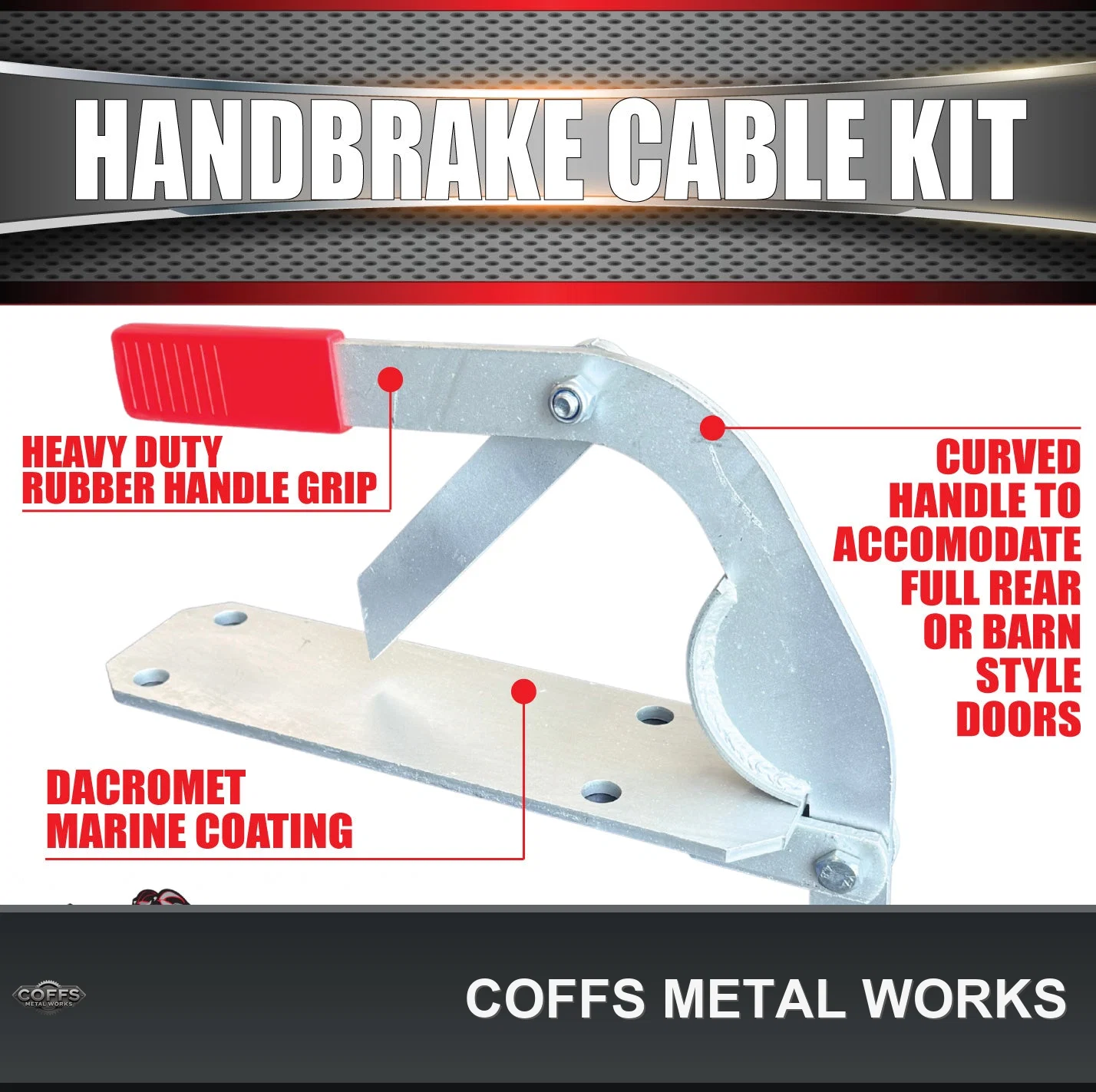

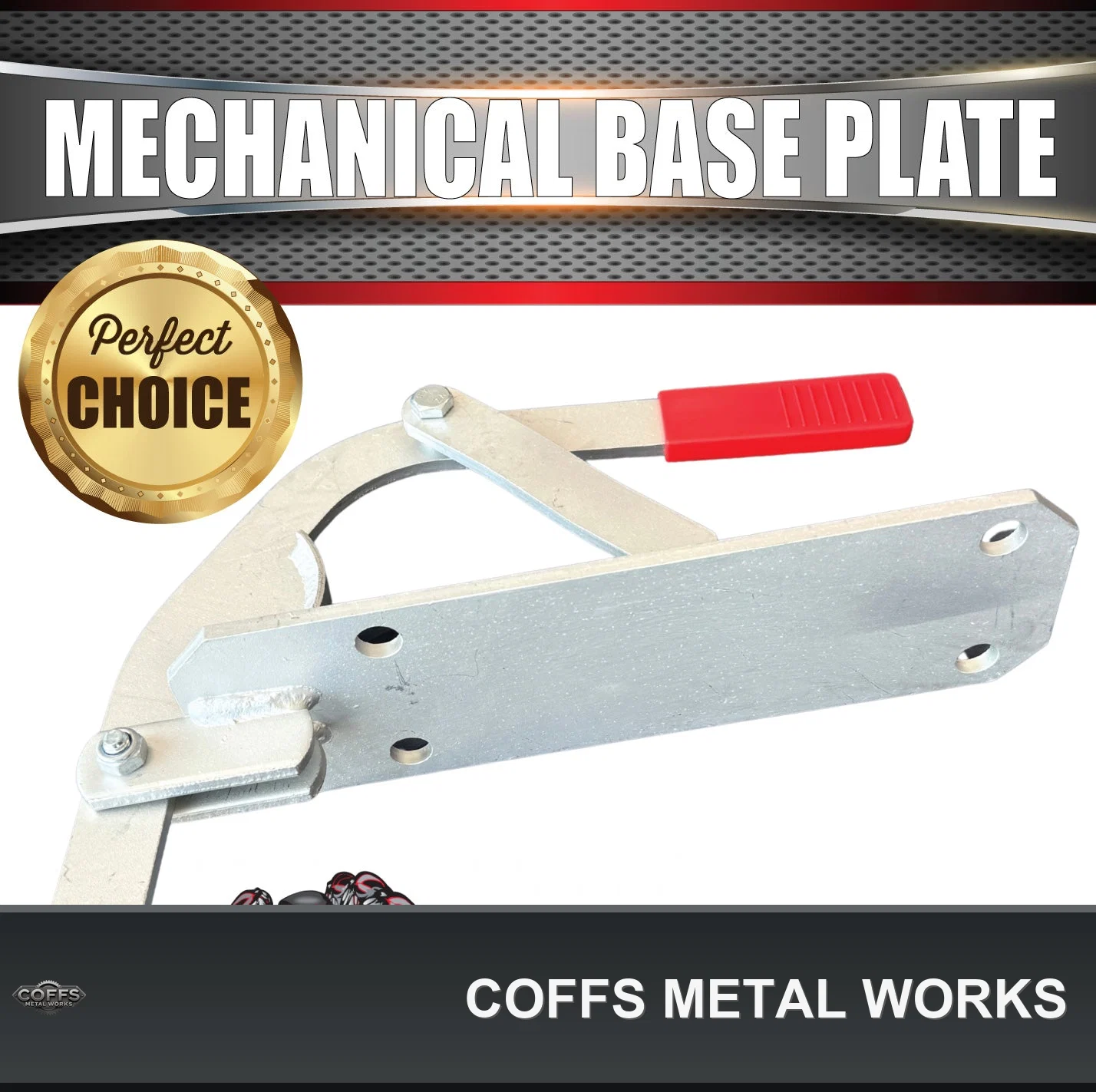

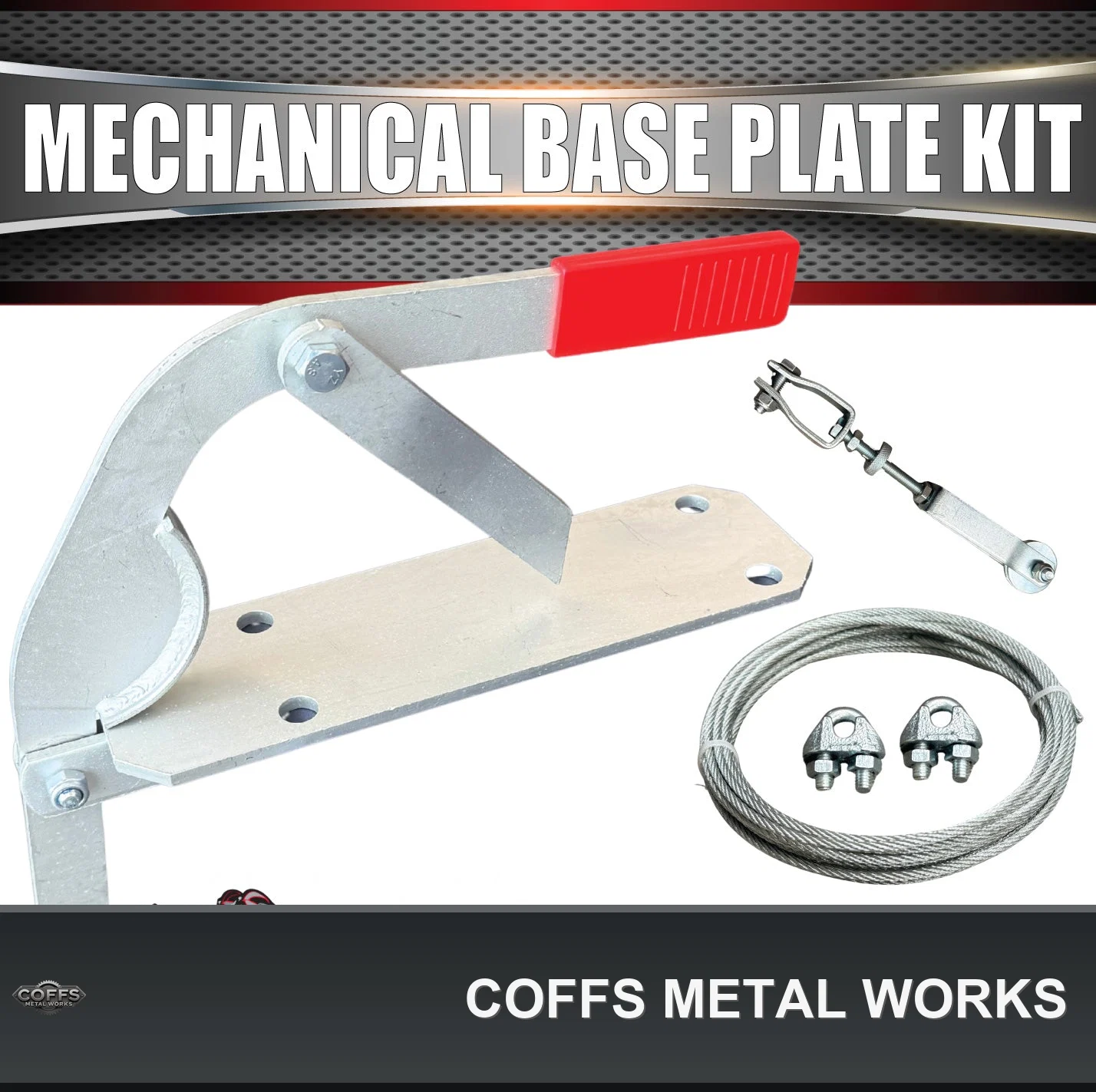

1X GALVANISED MECHANICAL BASE PLATE AND LEVER  (Designed to clear rear car doors)
4X HIGH TENSILE BOLTS WITH NYLOC NUTS
4 HOLE WELD ON COUPLING BASE PLATE
8 METRES 4MM HAND BRAKE CABLE (let us know if longer is required)
2X CABLE CLAMPS
1X CABLE ADJUSTER AND STAINLESS BOLT WITH NYLOC NUT


INFORMATION REQUIRED
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)


BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches

6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches
