9" Trailer Caravan Mechanical Drum Brake Kit. 5 & 6 Stud Pattern

9" TRAILER CARAVAN MECHANICAL DRUM BRAKE KIT
S.G CASTING DRUMS
Please note: This kit comes with no weld on brake mounts and is to replace brakes only

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)

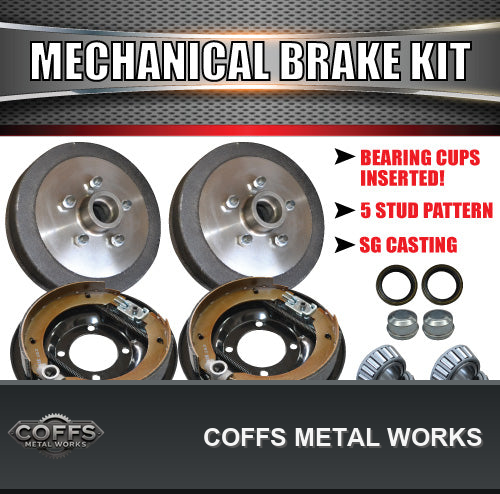

FULL KIT INCLUDES

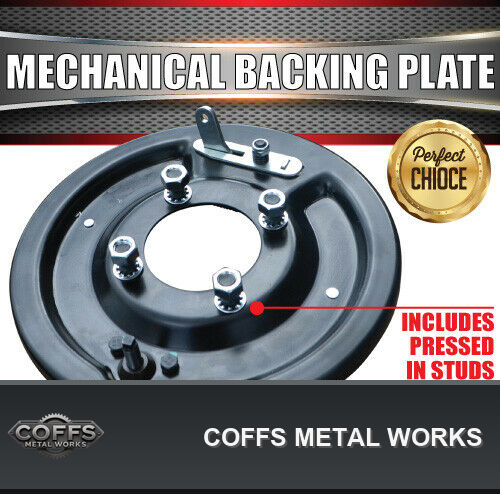

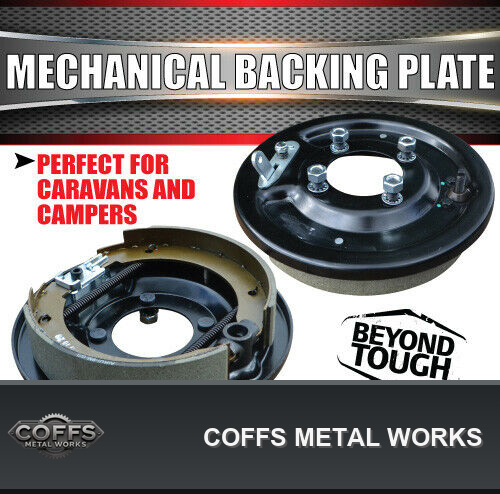

1X LEFT HAND 9" BRAKE MECHANICAL BACKING PLATE
1X RIGHT HAND 9" BRAKE MECHANICAL BACKING PLATE

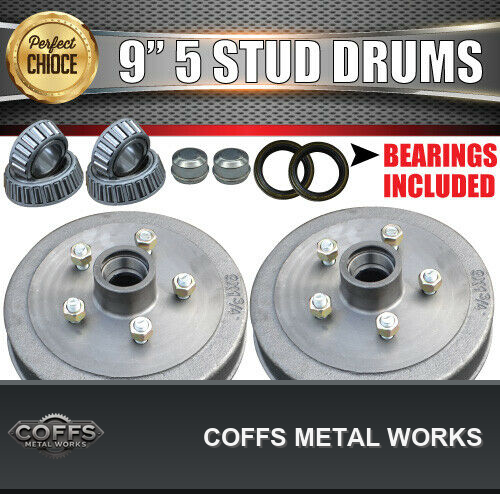

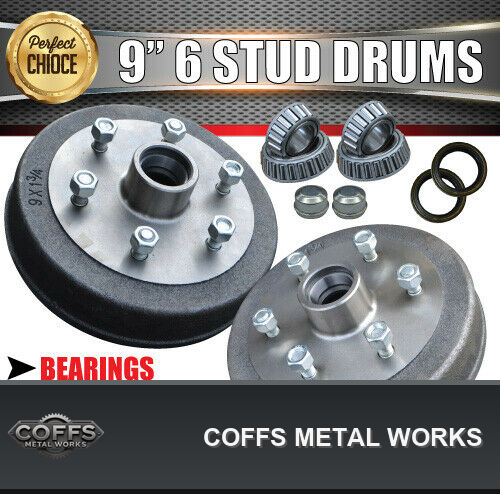

2X 9" S.G CASTING HUB DRUMS WITH CUPS INSERTED. COMES WITH WHEEL NUTS TO SUIT STUD PATTERN PROVIDED
2X LM OR SLIMLINE BEARING SETS. 2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X DUST CAPS. (bearing options below)

INFORMATION REQUIRED
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)


BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches

6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches
