9" Trailer Caravan Mechanical Drum Brake Kit With Japanese Koyo Bearings. 5 & 6 Stud.

9" TRAILER CARAVAN MECHANICAL DRUM BRAKE KIT
JAPANESE KOYO BEARINGS


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)

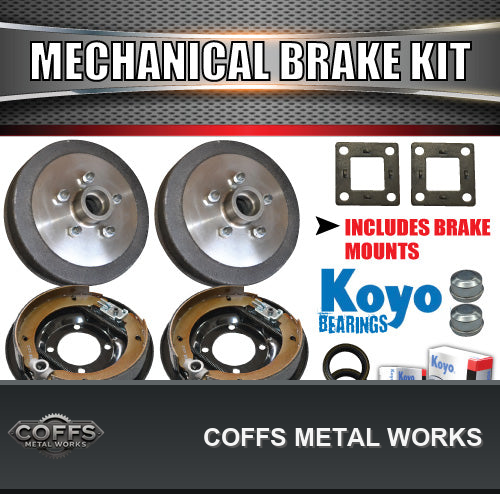

FULL KIT INCLUDES

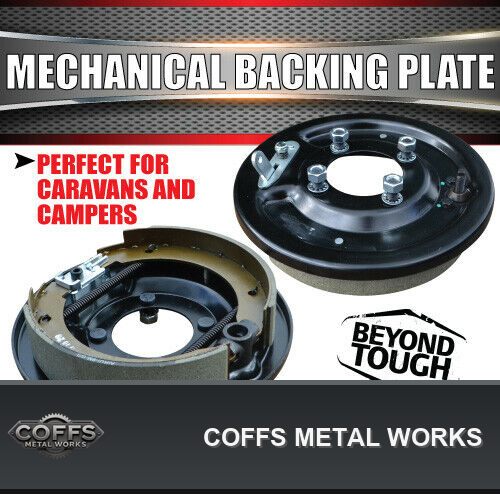

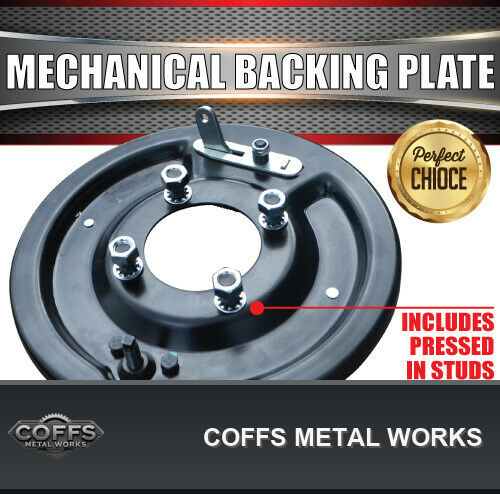

1X LEFT HAND 9" MECHANICAL BRAKE BACKING PLATE
1X RIGHT HAND 9" MECHANICAL BRAKE BACKING PLATE

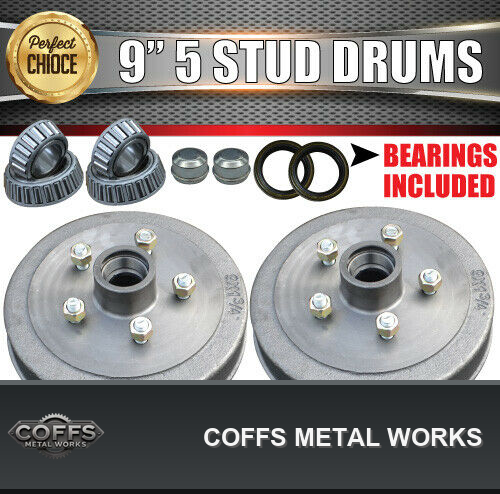

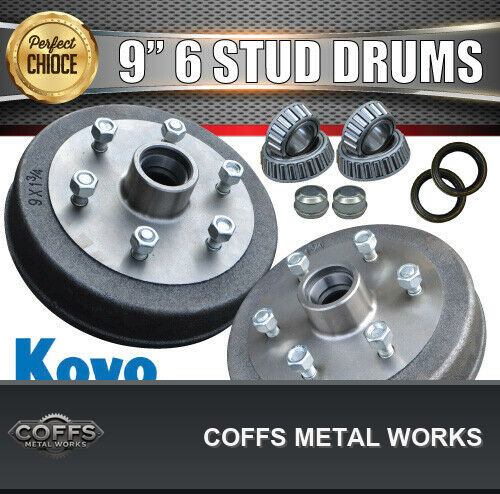

2X 9" S.G CASTING HUB DRUMS WITH CUPS INSERTED. COMES WITH WHEEL NUTS TO SUIT STUD PATTERN PROVIDED
2X JAPANESE KOYO LM AND SLIMLINE BEARING SETS. 2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X DUST SEALS, 2X DUST CAPS. (bearing options below)

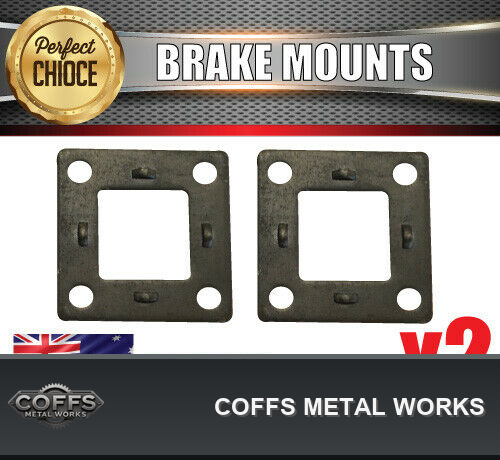

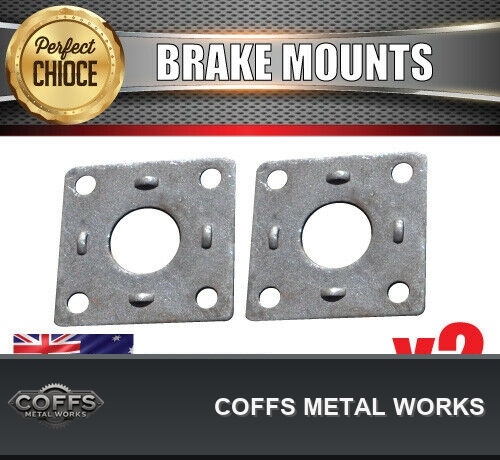

2X MECHANICAL BRAKE MOUNTS TO SUIT AXLE THICKNESS. AVAILABLE IN 39MM ROUND, 40MM SQUARE, 45MM ROUND, 45MM SQUARE & 50MM SQUARE


INFORMATION REQUIRED
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
WIDTH OF AXLE: 39MM ROUND, 40MM SQUARE, 45MM ROUND OR 45MM SQUARE


BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches

6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches
